Media Check API

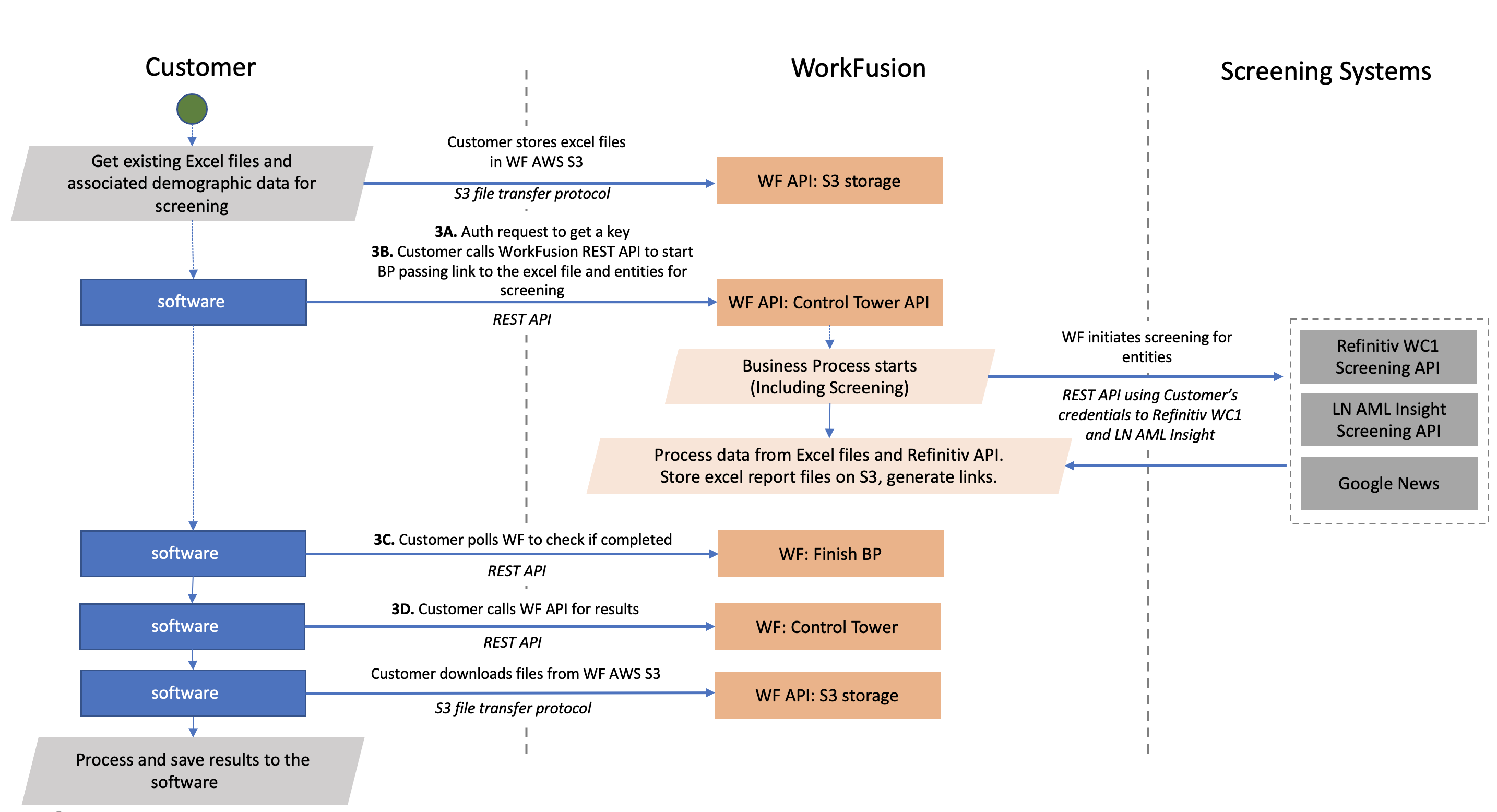

The page describes the process designed to enable the following:

Accept Excel files and associated elements with demographic data from a client's system.
Use the Excel files and associated elements for a Business Process (BP) hosted by WorkFusion.
As part of a BP, screen the names of customers, shareholders, and so on, using Refinitiv WorldCheck One, LexisNexis AML Insight, and Google News.
Dispose of all screening results with a false positive, escalation decision, or no decision.
Provide a human-readable justification for each disposition decision.
Send the process results to the client's software for eventual upload to downstream Case Management Systems.

Get data Excel files for screening

The input data is an Excel file with buyer or seller data used by WorkFusion Media Check Processing. See the example below:

You can get the data from a file storage:

MinIO S3 associated with IA Cloud
Outside of IA Cloud

IA Cloud MinIO S3

The MinIO client for interacting with WorkFusion MinIO S3 can be written in Java, Go, Python, JS, .NET, and other languages.

The WorkFusion MinIO URL is available at https://HOSTNAME-minio-lb1.workfusion.com/minio/. Remember to add your URI instead of the placeholder.

The WorkFusion MinIO URL is outside of Intelligent Automation Cloud Enterprise. Therefore, use the access key and secret key authentication:

Access key: HHVDVFJFT3GHHJKJ43FG
Secret Key: KNJkljJHGJHgjhJGHKjgy666RryfrftFk6589890

tip

For more information on how to upload and download files, refer to the MinIO SDK guide.

Create a bucket in the following format in advance: https://HOSTNAME-minio-lb1.workfusion.com/minio/media_check/input_data/.

Verify that the file transfer is working by checking the following MinIO SDK methods (JavaScript Client API Reference):

bucketExists checks if a bucket exists: https://docs.min.io/docs/javascript-client-api-reference.html#bucketExists.
putObject uploads an object from a stream/Buffer: https://docs.min.io/docs/javascript-client-api-reference.html#putObject.

If the file is transferred successfully, the response contains the etag and versionId strings of the uploaded object.

File storages outside IA Cloud

A client's server can also host input data files. However, IA Cloud needs to access the files using traditionally accepted methods:

AWS S3
HTTP
FTP

AWS S3

When using AWS S3, IA Cloud can access the stored files with the client-provided credentials in the following format:

Access key: HHVDVFJFT3GHHJKJ43FG
Secret Key: KNJkljJHGJHgjhJGHKjgy666RryfrftFk6589890

HTTP

In the case of providing HTTP links, IA Cloud can access the stored files with the client-provided credentials in the following format:

Username and password authentication:

headers: {
        username: USERNAME,
        password: PASSWORD
        }

Secret key in the HTTP headers:

headers: {
        secret-key: secretKey
        }

Secret key specified as a GET parameter in the link to the file:

https://client_domain.com/media_check_input_data/file1.xlsx?key=JKJH778sdfusdf678f678dfs78s^yjhhjwdkl754

HMAC-based one-time password:

API_KEY = c3b290df-d560-493c-86ca-0ab552f24490a
SECRET = 06d9BLvnPwpj/DFKJ6iGb5oiFO7wZK+dl+C9aflIu/9DIXMXqEyR0Qi1y5BjFi8NcSJl4b62vpK9v3JB1223339g==

headers: {
        authorisation: Signature keyId="${API_KEY}",algorithm="hmac-sha256",headers="(request-target) host date",signature="${HMAC_GENERATED_SIGNATURE_VIA_SECRET}"
        }

FTP

If an FTP server is used for storing input files, IA Cloud downloads these files with the credentials provided by the client:

Protocol: FTP / SFTP
Port: 21
host: ftp://client_domain.com
remote root: /www/media_check_input_data/
username: USERNAME
password: PASSWORD

At the end of execution, the BP saves the updated files to the MinIO S3 storage at https://HOSTNAME-minio-lb1.workfusion.com/minio/media_check/output_data/.

The BP generates a final report with temporary links to these files. You can retrieve the report via API. For more details, refer to Start Business Process from Manual Task.

Obtain Business Process UUID

Each operation, such as an executed BP, has a unique identifier (UUID) that takes the following format: db1cf0a8-1be4-4342-aec9-4bb0197bc9f1. To obtain the UUID for a soecific BP, follow the steps below:

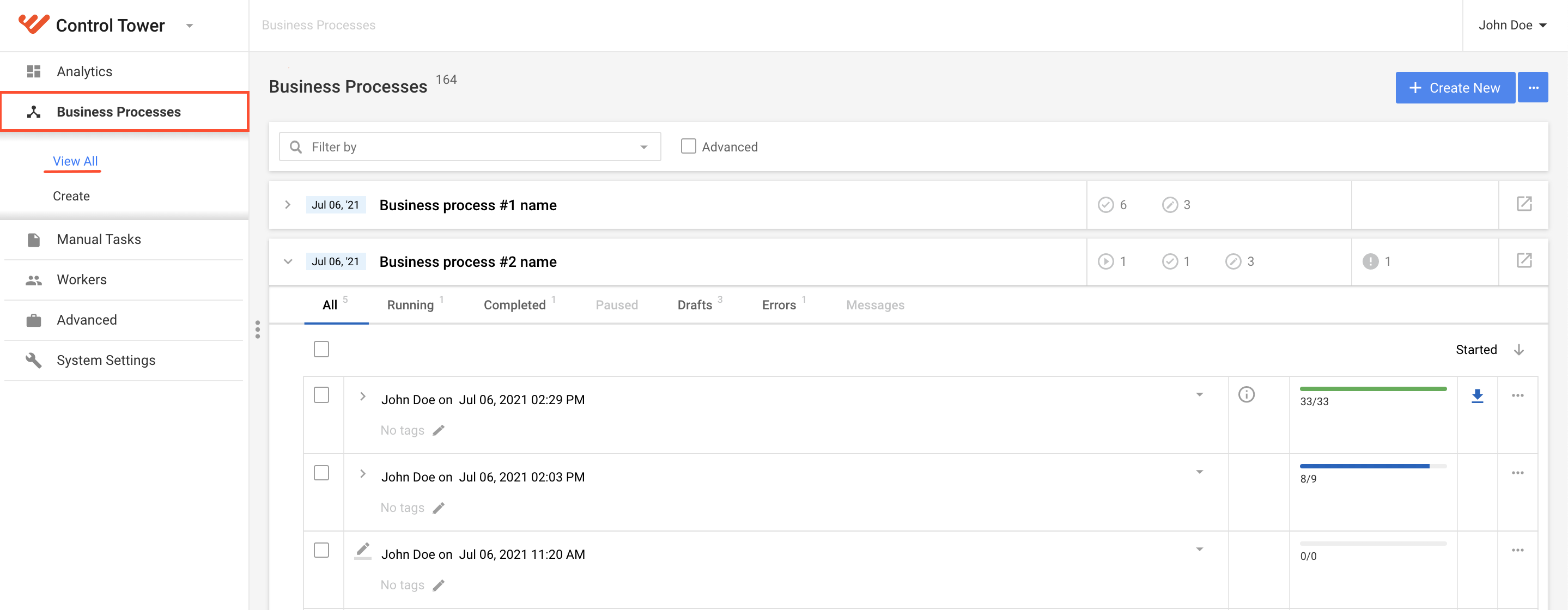

In Control Tower, go to Business Processes > View All and choose a BP.

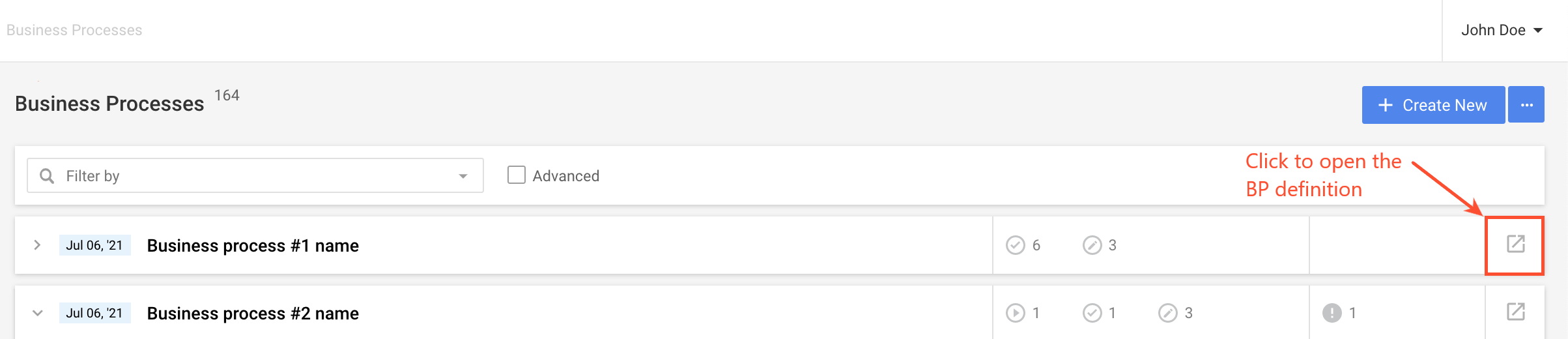

Click the button shown below to open its definition:

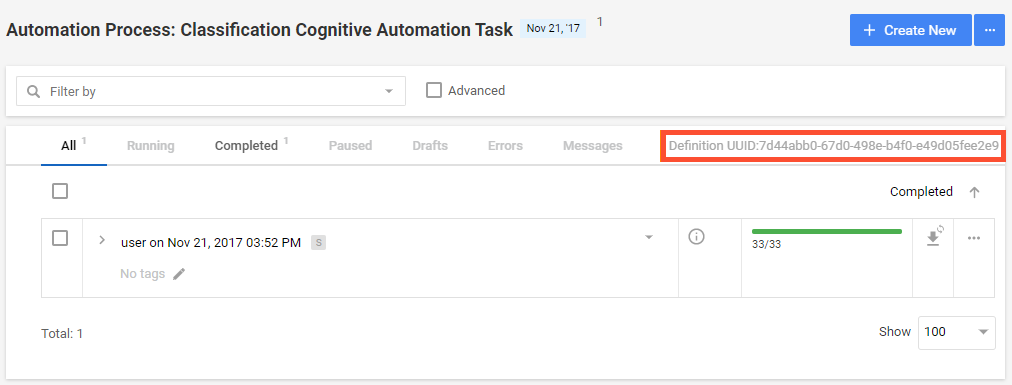

The BP Definition opens in a new tab, and the UUID is displayed. You can copy and later use the UUID to make API requests to a specific BP.

Use Business Process API

note

Always begin requests with HTTPS://.

Get authentication key

For authentication details, see WorkFusion REST API | API security.

Start Business Process

Once logged in, call WorkFusion REST API to start the BP while passing a link to the CSV file with associated entities for screening.

The command to start the BP takes the following form:

Method: POST
URL: https://HOSTNAME/workfusion/api/v2/workfusion/task/file
Headers required:
- JSESSIONID from the Auth API response
- X-CSRF-TOKEN from the Auth API response
- Content-Type in the following format: application/JSON; charset=utf-8

Body:

JSON object:

{
    "campaignUuid" : "UUID of the combined UC campaign",
    "mainData" : "CSV file rendered as a text"
}

// Example of building a mainData string
var main_data_example = "wf_screening_input\n" + // column name
    "file_s3_path_1\n" +
    "file_s3_path_2";

var mainData = JSON.stringify(main_data_example ));

Response: UUID of the started BP

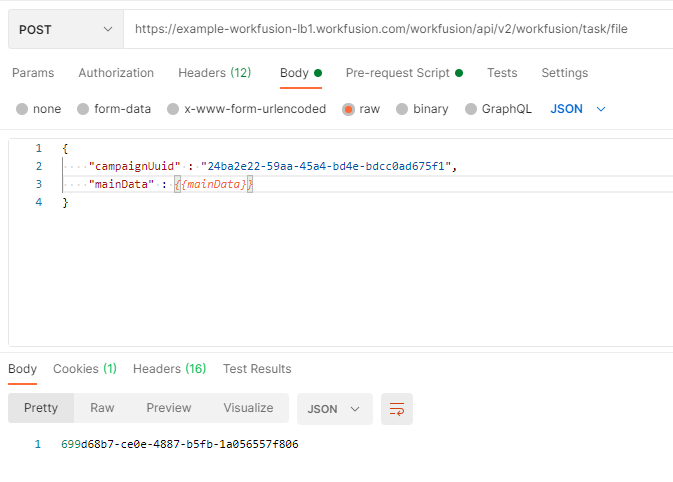

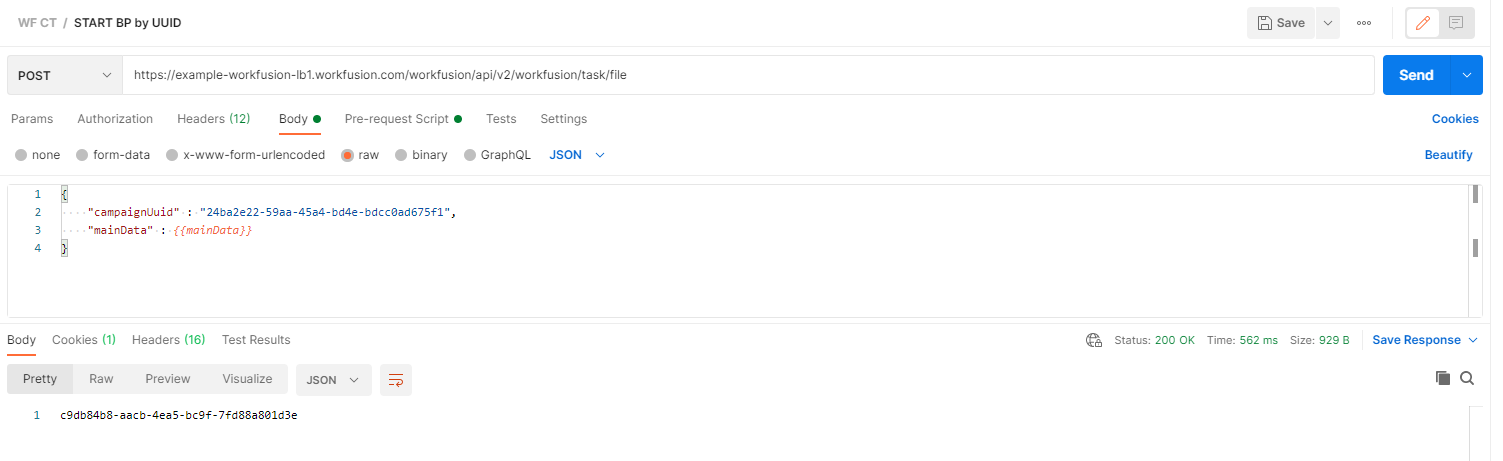

Postman example:

The return of a UUID indicates the successful start of the BP with the provided CSV file. For more details, refer to Start Business Process from Manual Task.

Check status

Once the BP is underway, it is necessary to continually check its status to determine when it is completed.

It is recommended to ping the endpoint using the following structure every 3-5 minutes based on the expected execution duration.

Method: GET
URL: https://HOSTNAME/workfusion/api/v2/workfusion/task/{uuid}/steps
Required headers:
- JSESSIONID from the Auth API response
- X-CSRF-TOKEN from the Auth API response
- Content-Type in the following format: application/JSON; charset=utf-8

Response: an array of JSON objects that represent each step of the started BP:

[
    {
        "title": "Step 1",
        "stepIndex": 1,
        "runUuid": "uuid",
        "runStatus": "COMPLETED",
        "campaignUuid": "uuid",
        "type": "MACHINE",
        "finalStep": false,
        "stepPosition": "START",
        "componentUuid": "uuid",
        "versionUuid": "uuid",
        "workforceUuid": null
    },
    ...,
    {
        "title": "Step 5",
        "stepIndex": 5,
        "runUuid": "uuid",
        "runStatus": "COMPLETED",
        "campaignUuid": "uuid",
        "type": "MACHINE",
        "finalStep": true,
        "stepPosition": "END",
        "componentUuid": "uuid",
        "versionUuid": "uuid",
        "workforceUuid": null
    }
]

The BP indicates the completion when the final step is reached with the completed status.

"finalStep": true
"runStatus": "COMPLETED"

If you receive "runStatus": null in the response, it means the BP has failed with an error, and additional investigation is required. Log in to Control Tower and investigate the problem, including analyzing logs.

For more details, read Start Business Process from Manual Task.

Check results

To pull the BP results or look at a snapshot with a specific UUID in the CSV or XLSX format, use the following structure:

Method: GET
URL: https://HOSTNAME/workfusion/api/v2/workfusion/task/{uuid}/snapshot/CSV
Required headers:
- JSESSIONID from the Auth API response
- X-CSRF-TOKEN from the Auth API response
- Content-Type in the following format: application/JSON; charset=utf-8

Response: this operation returns a binary object that can be converted into an Excel table or a CSV file.

{
    "content": "...",
    "contentType": "text/csv"
}

// Example how you can do it in JS
function retrieveSnapshot(processUuid) {
   retriveSnapshotUrl= instanceBaseUrl + "/api/v2/workfusion/task/{uuid}/snapshot/CSV";
   var startProcessPromise = $.ajax({
     type: "GET",
     url: retriveSnapshotUrl.replace("{uuid}", processUuid),
     contentType: 'text',
     headers: {...},
     dataType: 'text',
     cache:false,
     async: true
   });
 startProcessPromise.then(snapshotRetrieveSuccess, snapshotRetrieveError);
};

function snapshotRetrieveSuccess (response){
   var decodedResponseString = atob(JSON.parse(response).content);
};

The resulting file contains links to the initial files updated with the resolutions and justifications for acceptance or rejection from WorkFusion Media Check BP processing.

Process results

The updated files have to be uploaded to the Client's system based on the business and process requirements so that relevant analysts can process alerts.

Follow-up on concerns

For assistance with understanding the Media Check API results or for diagnosing rejected requests, contact Customer Support.
