Secrets Vault API

Description

The password parameter requires the BCrypt Encoded value with the strength measure of 10.

tip

You can use Secrets Vault Plugins as part of Business Processes.

Configuration

The service is published under the following URL: /api/v1/secrets-vault.

URL examples

https://custom-name.workfusion.com/workfusion/api/v1/secrets-vault

API security

All API postings are made over a Secure Sockets Layer (SSL) connection encrypting communications between the user and web server to ensure data remains private.

note

All requests must be preceding with https://.

The API supports both basic (login and password hash) and form-based (login and password) authentication to ensure that it is only accessible to users with proper credentials. By default, the basic authentication is used.

caution

You can enable only one authentication type at a time. For example, if you enable the form-based authentication, the basic one is disabled, and vice versa.

Basic authentication

Basic authentication requires the following:

username is your username in Control Tower.
password is your password hash in Control Tower.

Form-based authentication

To enable the form-based authentication, go to the INSTALL_DIR/conf/workfusion.properties file on the WorkFusion server and set the following property:

rest.form.auth.enable=true

CSRF protection is added to REST endpoints. To make a REST call, add a CSRF token to the header.

Before executing REST API requests, log in using the form URL:

POST method
```
POST /workfusion/api/dologin
Content-Type: application/x-www-form-urlencoded
j_username=username
j_password=password
```
where:
- j_username is your username in Control Tower.
- j_password is your password in Control Tower.

A successful request body from the server should look like this:

<html>
<head>
    <meta name="_csrf" content="<csrftoken>" />
    <meta name="_csrf_header" content="<csrftokenname>" />
    ...
</head>
<body>
    ...
</body>
</html>

Get JSESSIONID from the Set-Cookie response header.
When creating REST API requests:
1. Set this JSESSIONID to the Cookie header.
2. Set application/x-www-form-urlencoded as the Content-Type header.
3. Set the received <csrftoken> as the <csrftokenname> header.

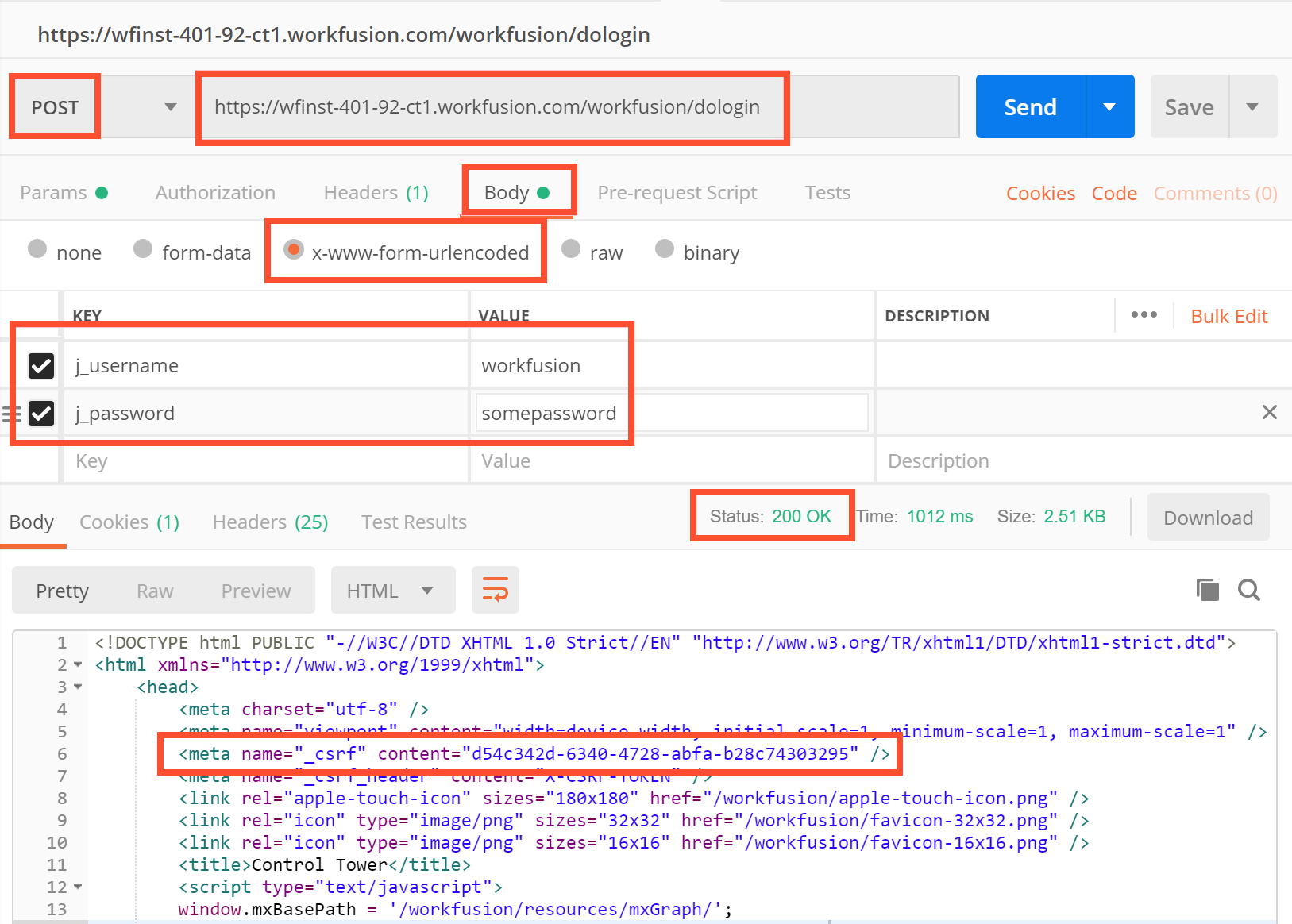

Here is a Postman login request example:

Sample login with HttpClient

        public String post(String addressURL, AbstractHttpEntity body) throws IOException {

    HttpPost httpPost = new HttpPost(addressURL);
    System.out.println("POST -> " + addressURL);
    httpPost.setEntity(body);

    HttpResponse response = httpClient.execute(httpPost);
    String stringResponse = convertStreamToString(response.getEntity().getContent());
    System.out.println(stringResponse);

    return stringResponse;
}

public void login() throws IOException {

    List<NameValuePair> nvp = new ArrayList<>();
    nvp.add(new BasicNameValuePair("j_username", USERNAME));
    nvp.add(new BasicNameValuePair("j_password", PASSWORD));

    //simply post the username and password to the server to login
    //re-use the httpClient instance to make sure the same JSESSIONID cookie is used

    //UrlEncodedFormEntity sets Content-Type=application/x-www-form-urlencoded
    String loginResponse = post(LOGIN_URL, new UrlEncodedFormEntity(nvp));

    Document htmlDocument = getDocument(loginResponse);

    XPathExpression exprToken = getXPathExpression("//meta[@name='_csrf']/@content");
    String csrfToken = exprToken.evaluate(document);

    XPathExpression exprHeader = getXPathExpression("//meta[@name='_csrf_header']/@content");
    String csrfHeader = expr.evaluate(document);

    // then use csrfHeader and csrfToken for REST API calls
}

private Document getDocument(String content) throws ParserConfigurationException, SAXException, IOException {
    DocumentBuilderFactory dbf = DocumentBuilderFactory.newInstance();
    DocumentBuilder db = dbf.newDocumentBuilder();
    return db.parse(IOUtils.toInputStream(content, "UTF-8"));
}

private XPathExpression getXPathExpression(String xPath) throws XPathExpressionException {
    XPathFactory xpf = XPathFactory.newInstance();
    XPath xpath = xpf.newXPath();
    return xpath.compile(xPath);
}

Use REST API with SSO

Starting from IA Cloud v10.2, you can authenticate REST requests with your Keycloak credentials without making Control Tower changes. Note that you must have the password assigned for your user. This condition is mandatory because, when using SSO, a user appears in Keycloak only after their first login via the interface, while Keycloak won't have the user's password.

For more information, read the Configure Identity Providers and REST API authentication with enabled IDP topics.

Use REST API with LDAP

Starting from IA Cloud v.10.2, LDAP access is configured via Keycloak. So, you can authenticate REST requests with your Keycloak credentials. For more information, read the Configure LDAP topic.

Get secure entry

Resource path: v1/secrets-vault/entry

Method: POST

Description: Retrieves secure entry from Secrets Vault.

Parameter	Description	Required	Param Type	Data Type
`alias`	Alias of the secured entry	Yes	x-www-form-urlencoded	String

Successful output:

{
    "responseStatus": "SUCCESS",
    "body": {
        "alias": "333",
        "key": "0000000",
        "value": "0000000000",
        "lastUpdateDate": 1449814392229
    },
    "errors": []
}

Error output: Invalid UUID

{
    "responseStatus": "FAILURE",
    "body": null,
    "errors": [
        {
            "code": 22,
            "message": "Invalid password"
        }
    ]
}

Save secure entry

Resource path: v1/secrets-vault/entry/put

Method: POST

Description: Saves the provided entry to Secrets Vault.

Parameter	Description	Required	Param Type	Data Type
`alias`	Alias of the secured entry	Yes	x-www-form-urlencoded	String
`key`	Entry key, which is usually a username	Yes	x-www-form-urlencoded	String
`value`	Entry value, which is usually the password	Yes	x-www-form-urlencoded	String

Successful output:

{
    "responseStatus": "SUCCESS",
    "body": true,
    "errors": []
}

Error output: Invalid UUID

{
    "responseStatus": "FAILURE",
    "body": null,
    "errors": [
        {
            "code": 20,
            "message": "Secure Entry 1211 already exists"
        }
    ]
}

Delete secure entry

Resource path: v1/secrets-vault/entry/delete

Method: POST

Description: Deletes the specified entry from Secrets Vault.

Parameter	Description	Required	Param Type	Data Type
`alias`	Alias of the secured entry	Yes	x-www-form-urlencoded	String

Successful output:

{
    "responseStatus": "SUCCESS",
    "body": true,
    "errors": []
}

Error output: Invalid UUID

{
    "responseStatus": "FAILURE",
    "body": null,
    "errors": [
        {
            "code": 22,
            "message": "Invalid password"
        }
    ]
}

Update secure entry

Resource path: v1/secrets-vault/entry/update

Method: POST

Description: Updates the specified entry (key, value) by alias to Secrets Vault.

Parameter	Description	Required	Param Type	Data Type
`alias`	Alias of the secured entry	Yes	x-www-form-urlencoded	String
`key`	Entry key, which is usually the username	Yes	x-www-form-urlencoded	String
`value`	Entry value, which is usually the password	Yes	x-www-form-urlencoded	String

Successful output:

{
    "responseStatus": "SUCCESS",
    "body": true,
    "errors": []
}

Error output: Invalid UUID

{
  "message": "Validation Failed",
  "code": "com.workfusion.api.error.missing.request.parameter",
  "errors": [
    {
      "message": "Required String parameter 'key' is not present",
      "field": "key"
    }
  ]
}

Reset secure entry

Resource path: v1/secrets-vault/entry/reset

Method: POST

Description: Resets the value for the specified entry from Secrets Vault. The new value is generated randomly. The length is 20 symbols.

Parameter	Description	Required	Param Type	Data Type
`alias`	Alias of the secured entry	Yes	x-www-form-urlencoded	String

Successful output:

{
    "responseStatus": "SUCCESS",
    "body": true,
    "errors": []
}

Error output: Invalid UUID

{
  "message": "Secure Entry with alias '12342222' does not exist",
  "code": "com.workfusion.api.error.http.not.found"
}
