Database

MS SQL server

• MS SQL version:

  • Recommended: Microsoft SQL Server 2022, 2019
  • Also supported: MS SQL Server 2016

• The activated instance of MS SQL server must be provided.

• If a named SQL instance is used, it must listen for connections on a statically-assigned TCP port.

• Required MS SQL Server features: DB Engine.

• SQL Server and SQL Server Agent services must be up and running in the Automatic start mode.

• The default server-level collation must be SQL_Latin1_General_CP1_CI_AS. See Collation and Unicode support.

• Database-level collation must be set.

• The separate database with the name "workfusion" must be created.

• During the upgrade, the db_owner account must be active and running to perform the upgrade.

• The following MS SQL login users must be created:

  Parameter	Default login	Description
  mssql_dba_user	wf_dba	Name of the database owner that provides permissions for the database to other users and schemas
  mssql_ct_user	workfusion	Name of the MS SQL login and the corresponding MS SQL DB user for the Control Tower component
  mssql_ws_user	workspace	Name of the MS SQL login and the corresponding MS SQL DB user for the Workspace component
  mssql_sqc_user	sqc	Name of the MS SQL login and the corresponding MS SQL DB user for the SQC component
  mssql_ds_user	ds	Name of the MS SQL login and the corresponding MS SQL DB user for the CT datasource connection
  mssql_rpa_user	rpa	Name of the MS SQL login and the corresponding MS SQL DB user for the RPA component
  mssql_pm_user	pm	Name of the MS SQL login and the corresponding MS SQL DB user for the monitoring tools
  mssql_dm_user	dm	Name of the MS SQL login and the corresponding MS SQL DB user for the Analytics component
  mssql_rapi_user	rapi	Name of the MS SQL login and the corresponding MS SQL DB user for the Analytics remote api
  mssql_ocr_user	ocr	Name of the MS SQL login and the corresponding MS SQL DB user for the OCR component
  mssql_automl_mms_user	automl_mms	Name of the MS SQL login and the corresponding MS SQL DB user for the AutoML Model Management component
  mssql_keycloak_user	keycloak	Name of the MS SQL login and the corresponding MS SQL DB user for the Keycloak component
  mssql_labeling_service_user	labeling_service	Name of the MS SQL login and the corresponding MS SQL DB user for the labeling_service component
  mssql_db_analytics_ro_user	db_analytics_ro	Name of the MS SQL login and the corresponding MS SQL DB user for the db_analytics_ro component
  mssql_dataset_management_user	dataset_management	Name of the MS SQL login and the corresponding MS SQL DB user for the Dataset Management component
  mssql_bpoe_user	bpoe	Name of the MS SQL login and the corresponding MS SQL database user for distributed BP execution engine operations; used by the Control Tower component

• The following password policies are applied for the MS SQL logins:

  • For passwords mssql_dm_pass and mssql_rapi_pass:
    • Permitted symbols: #*@/\`+-=_$([]:,.;!?
    • Forbidden symbols: {}'><"|^%&)
  • For all other DB passwords:
    • Permitted symbols: %^#*@/\|`+-=_><&$(){}[]:,.;!?
    • Forbidden symbols: "'

• In the workfusion database, the user must be created for the <mssql_dba_user> MS SQL login with the same name. This user must be granted the db_owner role in the database.

• Execute the following SQL script to apply the necessary database settings and enable snapshot isolation:

  ALTER DATABASE  *mssql_db_name* SET single_user with rollback immediate;
  GO

  ALTER DATABASE *mssql_db_name* SET ALLOW_SNAPSHOT_ISOLATION ON
  GO
  ALTER DATABASE *mssql_db_name* SET READ_COMMITTED_SNAPSHOT ON
  GO

  ALTER DATABASE *mssql_db_name* set multi_user;
  GO

ONLY FOR HIGH-AVAILABILITY INSTALLATION

• The database must be created and configured under the AlwaysOn Active-Active cluster with synchronous replication between primary MS SQL servers.
• The database must be configured with a static AG listener.
• When deploying MSSQL on the Disaster Recovery site, asynchronous replication must be set up between primary and secondary replicas.

Authentication

The Product supports Active Directory logins on the MS SQL server. When using AD logins in MS SQL, make sure to meet the following requirements:

• The MS SQL server must be joined to the domain.
• Server Principal Name (SPN) for the MS SQL server must exist within the Active Directory schema.
• SPN for the MS SQL server must correspond to the value provided in hosts.yml for the mssql_hostname option.
• SPN for the MS SQL server must be registered for the account used to run the MS SQL service process.
• All servers within the environment must have network access to the Domain Controller ports.
• The username format must be DOMAIN/username.

Prepare MS SQL server

To prepare an MS SQL server, complete the following steps:

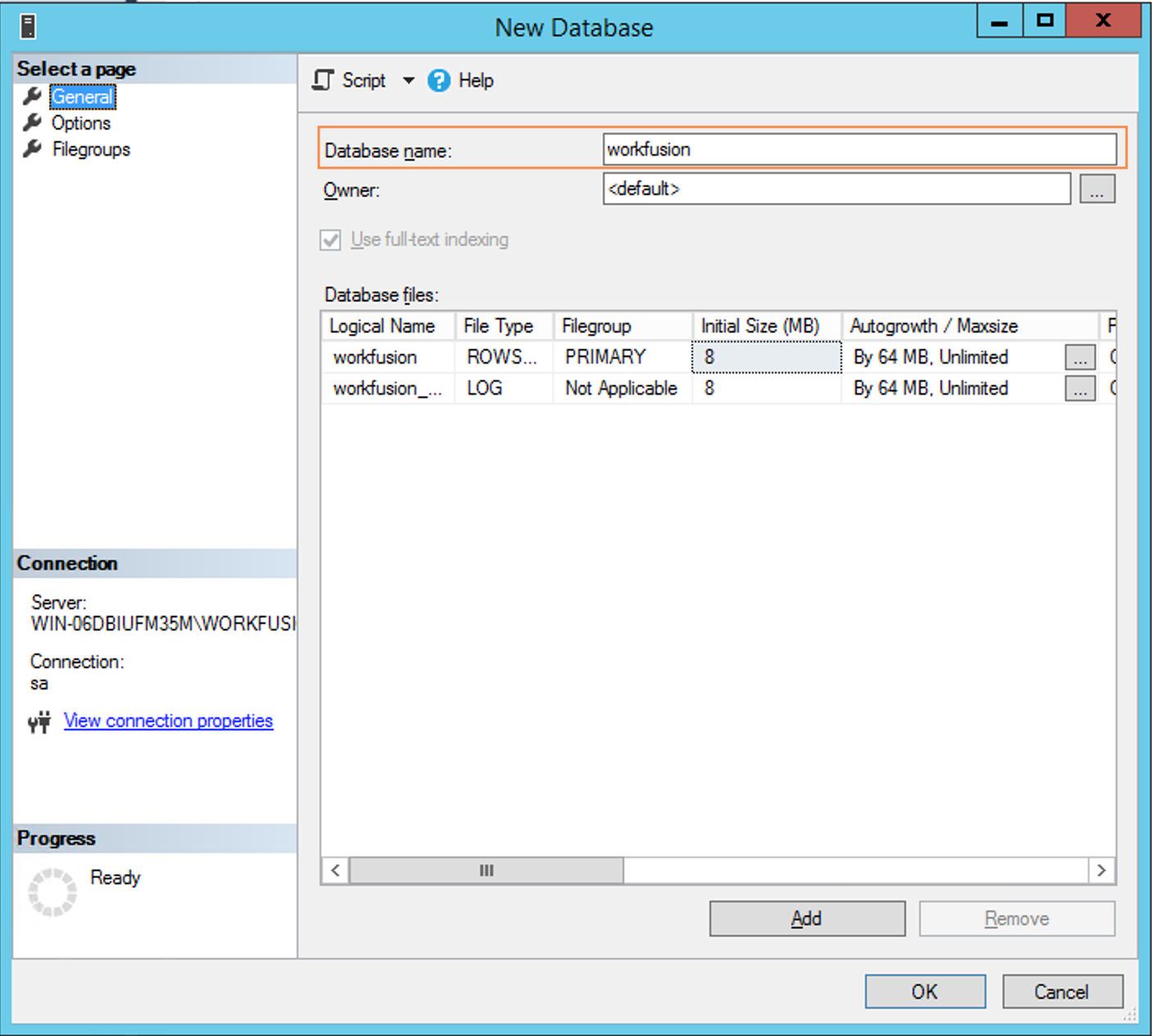

1. Create a new database and specify the database name: workfusion. For other options in this section, you may use the default values.



2. Create the <mssql_dba_user> owner (wf_dba) with the full-access permissions for the workfusion database. This user must be later specified in config.yml.

   The following password policies are applied for the MS SQL logins:

   • For passwords mssql_dm_pass and mssql_rapi_pass:

     • Permitted symbols: #*@/\`+-=_$([]:,.;!?
     • Forbidden symbols: {}'><"|^%&)

   • For all other DB passwords:

     • Permitted symbols: %^#*@/\|`+-=_><&$(){}[]:,.;!?
     • Forbidden symbols: "'

     To create <mssql_dba_user>, follow the steps below:

     1. On an MS SQL server, create the mssql login, specify the login name.

     2. Make sure to clear the Enforce password policy checkbox.

     3. In the Default database box, specify the <mssql_db_name> database and then choose English as the Default language.

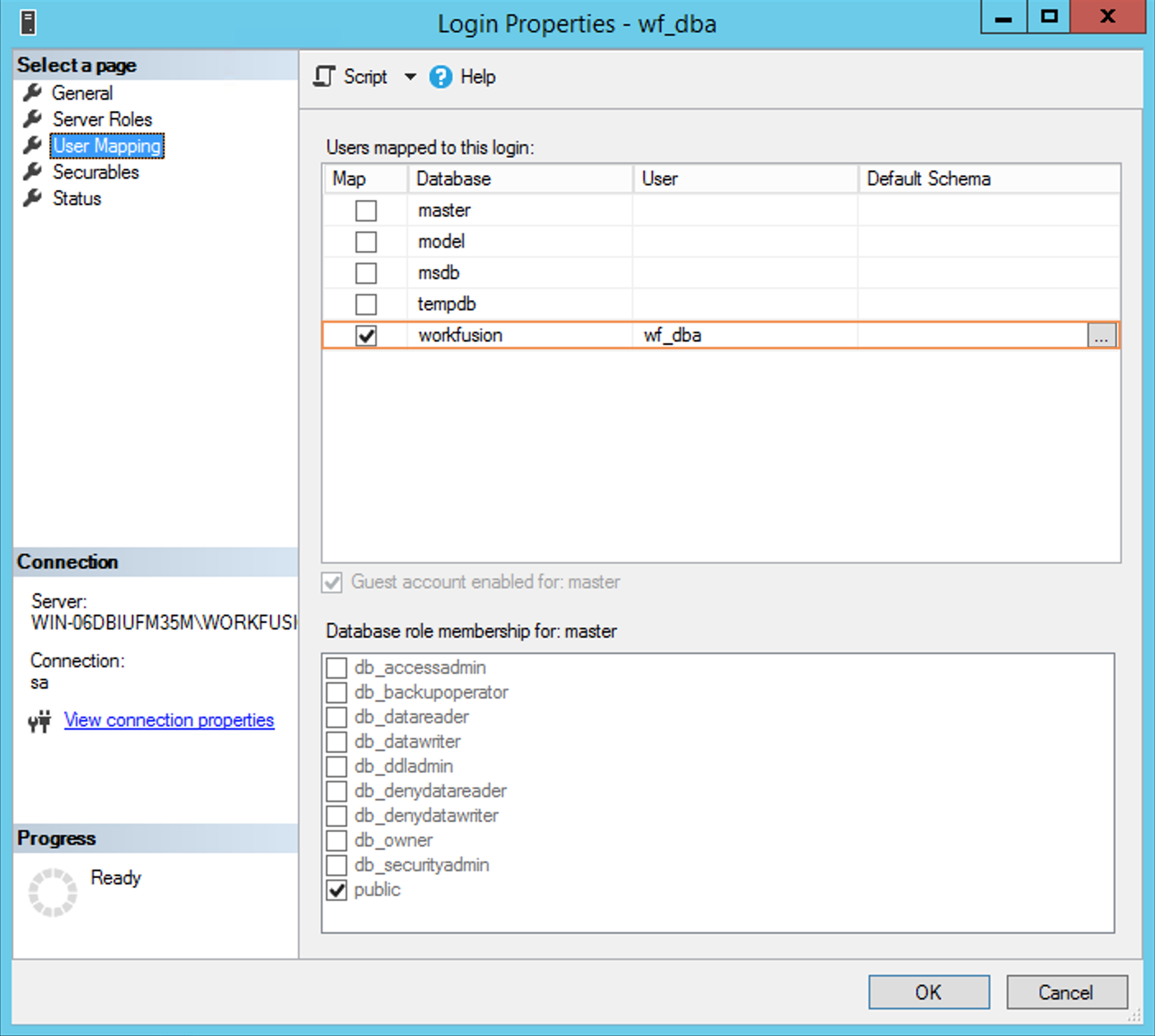

     4. In the Select a page group, click User mapping and select the <mssql_dba_user> checkbox to map the user to the <mssql_db_name> database. Leave all other options unchanged.

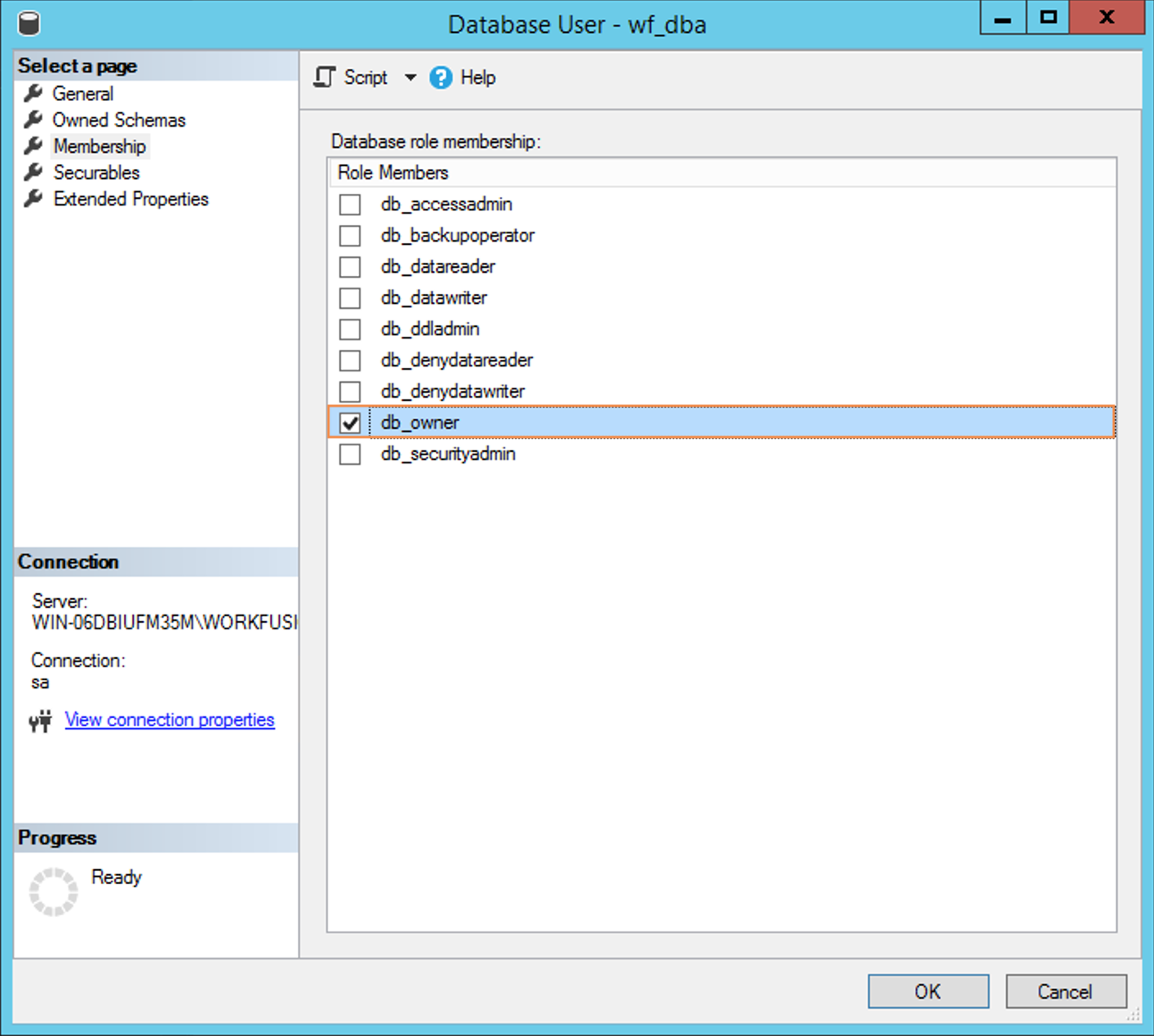

     5. In the database Users, select the db_owner checkbox to assign <mssql_dba_user> to the db_owner role.



3. Create the following MS SQL logins for the WorkFusion components. Note that MS SQL logins are not the same as database users. See the parameters in config.yml.

   Parameter	Default value	Description
   mssql_ct_user	workfusion	Name of the MS SQL login and the corresponding MS SQL DB user for the Control Tower component
   mssql_ws_user	workspace	Name of the MS SQL login and the corresponding MS SQL DB user for the Workspace component
   mssql_sqc_user	sqc	Name of the MS SQL login and the corresponding MS SQL DB user for the SQC component
   mssql_ds_user	ds	Name of the MS SQL login and the corresponding MS SQL DB user for the CT datasource connection
   mssql_rpa_user	rpa	The name of the MS SQL login and the corresponding MS SQL DB user for the RPA component
   mssql_pm_user	pm	Name of the MS SQL login and the corresponding MS SQL DB user for the monitoring tools
   mssql_dm_user	dm	Name of the MS SQL login and the corresponding MS SQL DB user for the Analytics component
   mssql_rapi_user	rapi	Name of the MS SQL login and the corresponding MS SQL DB user for the Analytics remote api
   mssql_ocr_user	ocr	Name of the MS SQL login and the corresponding MS SQL DB user for the OCR component
   mssql_automl_mms_user	automl_mms	Name the MS SQL login and of the corresponding MS SQL DB user for the AutoML Model Management component
   mssql_keycloak_user	keycloak	Name the MS SQL login and of the corresponding MSSQL DB user for the Keycloak component
   mssql_labeling_service_user	labeling_service	Name of the MS SQL login and the corresponding MS SQL DB user for the labeling_service component
   mssql_db_analytics_ro_user	db_analytics_ro	Name of the MS SQL login and the corresponding MSSQL DB user for the db_analytics_ro component
   mssql_dataset_management_user	dataset_management	Name of the MS SQL login and the corresponding MS SQL DB user for the Dataset Management component
   mssql_bpoe_user	bpoe	Name of the MS SQL login and the corresponding MS SQL database user for distributed BP execution engine operations; used by the Control Tower component

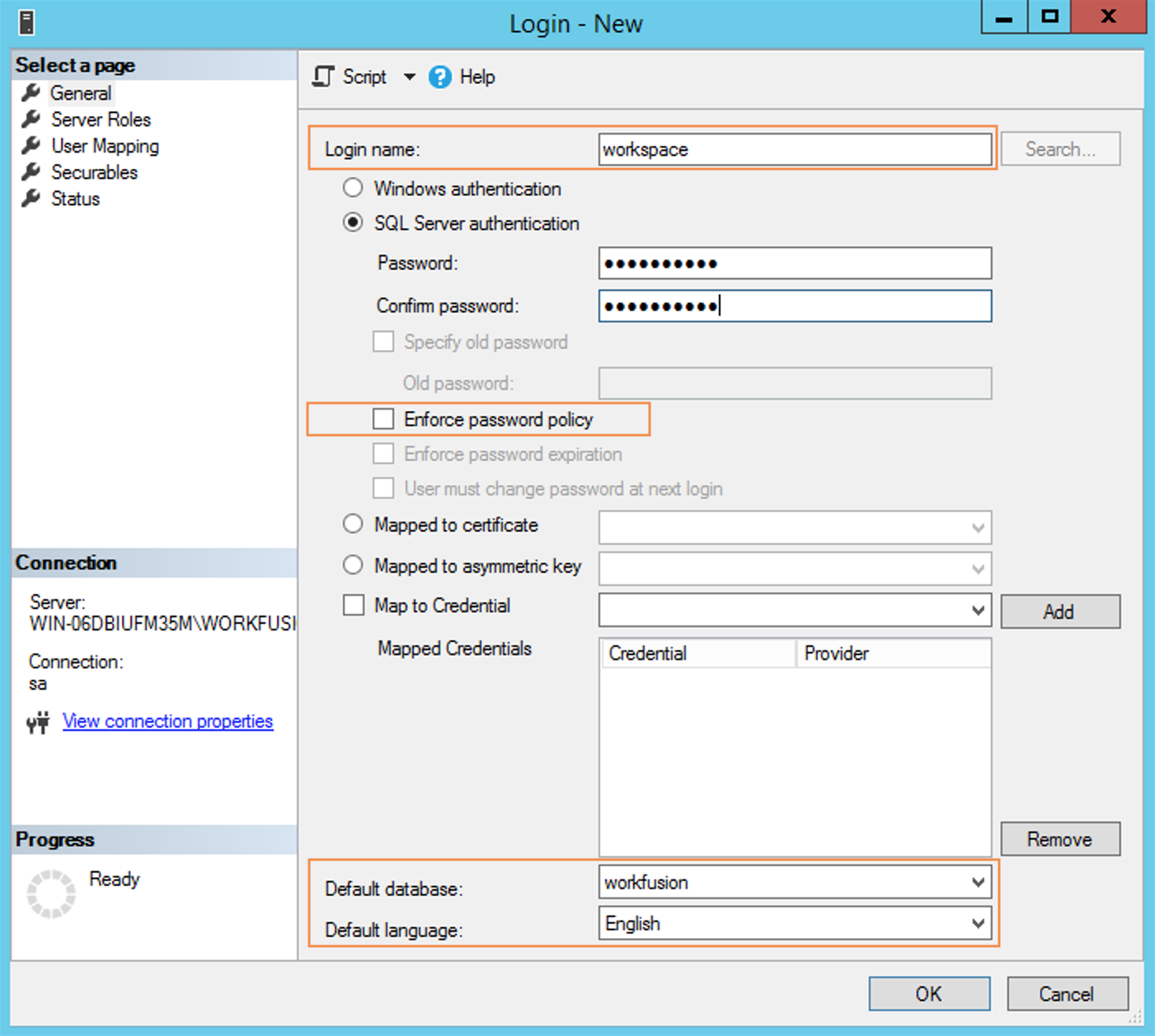

4. For each login, specify the following parameters of the SQL Server authentication:

   1. In the Login name field, specify the corresponding username.

   2. Make sure to clear the Enforce password policy checkbox. See the passwords policies earlier.

   3. In the Default database box, specify the <mssql_db_name> database.

   4. Choose English as the Default language.



5. Execute the following SQL script to apply the necessary database settings and enable snapshot isolation:

   ALTER DATABASE  *mssql_db_name* SET single_user with rollback immediate;
   GO

   ALTER DATABASE *mssql_db_name* SET ALLOW_SNAPSHOT_ISOLATION ON
   GO
   ALTER DATABASE *mssql_db_name* SET READ_COMMITTED_SNAPSHOT ON
   GO

   ALTER DATABASE *mssql_db_name* set multi_user;
   GO

6. In the msdb database, create the <mssql_pm_user> user. Make sure to replace <mssql_pm_user> with the actual username:

   USE msdb;
   IF NOT EXISTS (SELECT name FROM sys.database_principals WHERE name = '<mssql_pm_user>')
   CREATE user [<mssql_pm_user>] for login [<mssql_pm_user>] with default_schema = dbo;
   GO
   ALTER role SQLAgentUserRole add member [<mssql_pm_user>];
   GO

7. Provide <mssql_pm_user> with permissions to view server state:

   use master;
   GRANT view server state to [<mssql_pm_user>];

8. When configuring the setup, on the Master server, in the config.yml file, in the #MSSQL section, remember to specify the corresponding usernames and passwords that you have created on the previous step.
