Edit

Increase extract timeout

To increase the extract timeout, change the Nginx configuration files listed below.

APP servers

1. Open the INSTALL_DIR/nginx/sites/workfusion-mtls.conf file. In the /automl-gateway-service section, add or modify the following parameters:

   • proxy_send_timeout 1800

   • proxy_read_timeout 1800

   • proxy_connect_timeout 1800

   • send_timeout 1800

   The screenshot below illustrates the changes:



2. On each APP server, restart the Nginx service:

   wfmanager restart nginx


BEP Master servers

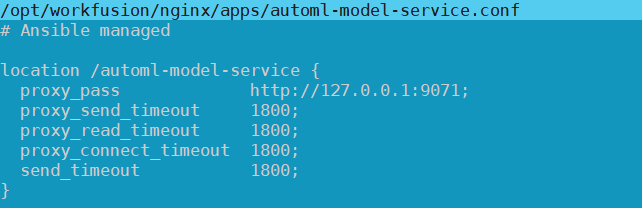

1. Open the INSTALL_DIR/workfusion/nginx/apps/automl-model-service.conf file. It can also be located in the INSTALL_DIR/workfusion/nginx/sites directory. In the file, change or add the same parameters:

   • proxy_send_timeout 1800

   • proxy_read_timeout 1800

   • proxy_connect_timeout 1800

   • send_timeout 1800

   The screenshot below illustrates the changes:

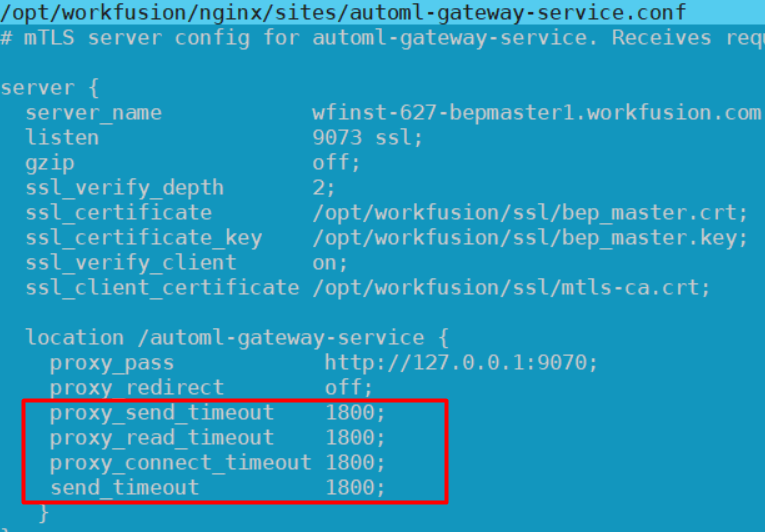

2. Edit the INSTALL_DIR/workfusion/nginx/sites/automl-gateway-service.conf file by changing or adding the following parameters:

   • proxy_send_timeout 1800

   • proxy_read_timeout 1800

   • proxy_connect_timeout 1800

   • send_timeout 1800

   The screenshot below illustrates the changes:



3. On the BEP Master, restart the Nginx service:

   wfmanager restart nginx


BEP Agent servers

1. Open the INSTALL_DIR/workfusion/nginx/sites/worker-mtls.conf file. It can also be located in the INSTALL_DIR/workfusion/nginx/sites directory. In the file, change or add the following parameters:

   • proxy_send_timeout 1800

   • proxy_read_timeout 1800

   • proxy_connect_timeout 1800

   • send_timeout 1800

   The screenshot below illustrates the changes:



2. On the BEP Agent server, restart the Nginx service:

   wfmanager restart nginx


Failover timeout

For the High Availability (HA) architecture, change the timeout for failover for all Nginx you have, as shown in the screenshot below:

ZooKeeper parameter (INT server)

Via ZooNavigator

Set the following parameter to 20m:

ROOT/config/automl-model-service/automl.service.model.execution.operation.total-timeout

Via command line on INT server

1. Run as $wfuser:

   INSTALL_DIR/zookeeper/bin/zkCli.sh

   You are automatically switched to the ZooKeeper command line.

2. Run the following command:

   set/config/automl-model-service/automl.service.model.execution.operation.total-timeout 20m

Once you set the parameter in one of the ways described above, restart automl-model-service located on the BEP Master.
