RPA overview

The section describes robots – WorkFusion Bot configs that execute actions of a human Worker interacting with a user interface of a computer system.

Robots have the following capabilities:

  • Clicking through a browser web page or a desktop application on a remote server.
  • Reading and writing content from or to user interface fields.
  • Iterating through a set of predefined steps (looping) and executing steps upon some conditions (if-then-else logic).
  • Executing scripts, opening applications and browser windows.

RPA high-level architecture

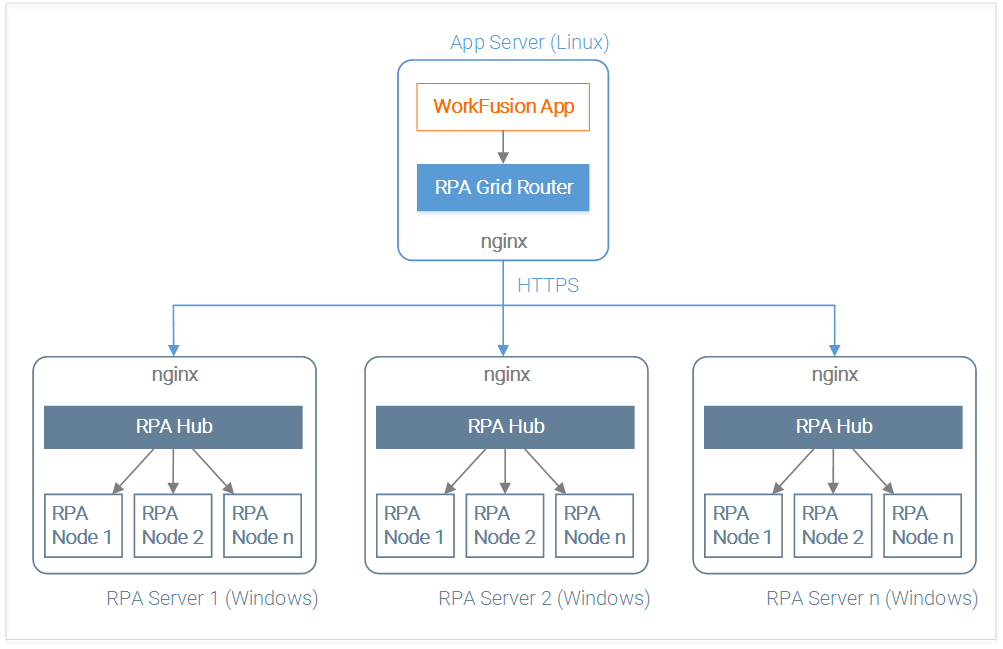

The following diagram shows how WorkFusion RPA works:

  1. WorkFusion engine executes RPA Bot configs having the robotics-flow plugin.

  2. All instructions go to RPA Grid Router (Cluster) which distributes them among available RPA Hubs (Orchestrators / Load Balancers) depending on their capacity and supported capabilities.

  3. RPA Hub searches for RPA Nodes with a suitable set of capabilities (e.g. installed browsers and desktop apps to be automated), and when found, creates a new session on that Node.

  4. RPA Node acts like a Robot Aggregator:

    1. Receives a set of instructions from RPA Hub.
    2. Initializes a Robot – Browser Driver (Selenium) or Desktop Driver (AutoIt).
    3. Executes script instructions one by one (for example, open Excel application, copy all content from the 2nd sheet, save it to a text file, put the file into SharePoint folder).

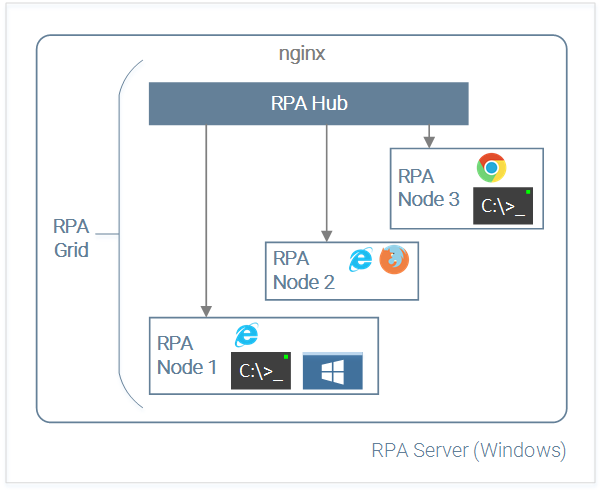

One RPA script can use several RPA Nodes with different capabilities, for example:

  1. Node 1: to run a Windows desktop application and get initial data from it.

  2. Node 2: to run an Internet Explorer browser, input that data to a CRM web application, and keep browser opened.

  3. Node 3: to run a console application and read customer balance from it.

  4. Finally, RPA script can switch to Node 2 again to save a transaction in CRM, and close the browser on completion.

RPA Development Process

To start developing RPA scripts, you need to:

  • Install WorkFusion Studio IDE.
  • Install RPA Grid and make necessary Windows, Java, and IE tuning.
  • Learn how to create Bot Tasks and use Web-Harvest plugins.
  • Learn Robotics API and simplified API cheatsheet.
  • Learn how to use desktop automation tools.

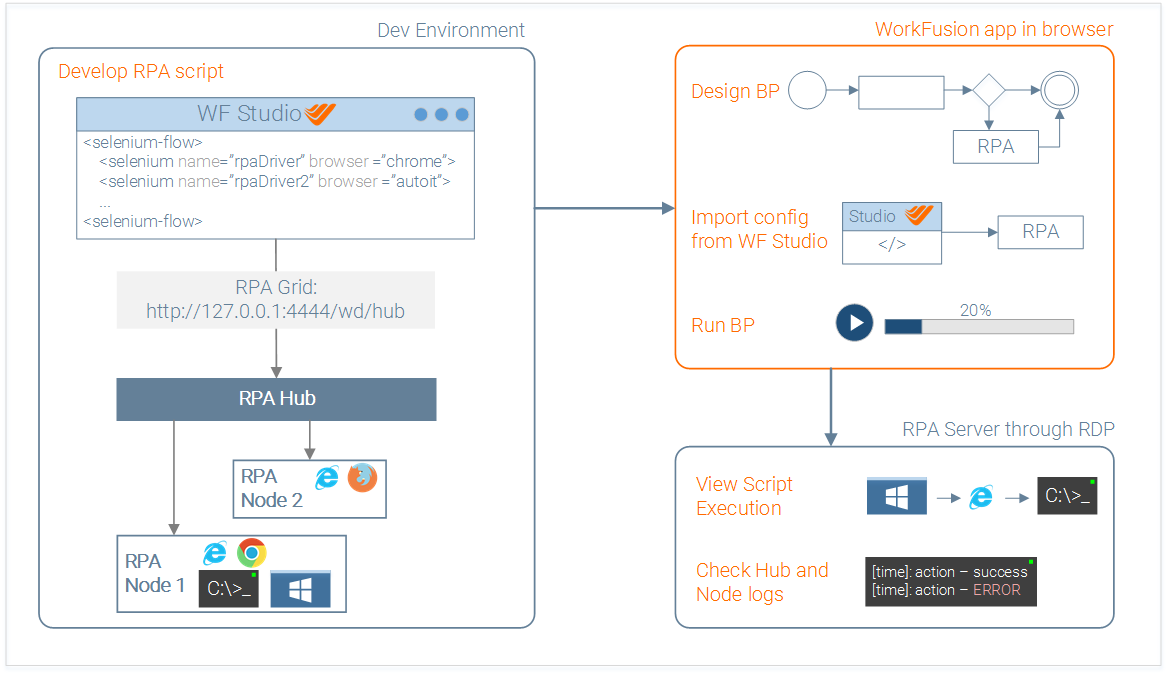

The RPA scripts development life-cycle looks like this:

  1. Develop PRA script in WorkFusion Studio IDE.

  2. Debug and test it on local machine using RPA Grid.

  3. Do one of the following:

    1. Deploy a Bot config bundle to Nexus using the WorkFusion repository (recommended way).

    2. OR create a Bot Task in WorkFusion and paste the tested RPA script from WF Studio manually.

  4. Set Bot Task parameters (Streaming, Number of Threads, etc.) and run it as a part of a Business Process.

  5. Watch the RPA script execution on a remote RPA server managed by WorkFusion app through RPA Grid Router. You need to set an RDP connection to the RPA Server – contact your system administrator for details.

  6. If something fails:

    1. Check the RPA Hub and Node console logs on RPA server.
    2. Check the BP error logs.
