Product architecture
Download PDF
You can also view the entire Installation section in the PDF format. Click the link to download (40 MB).

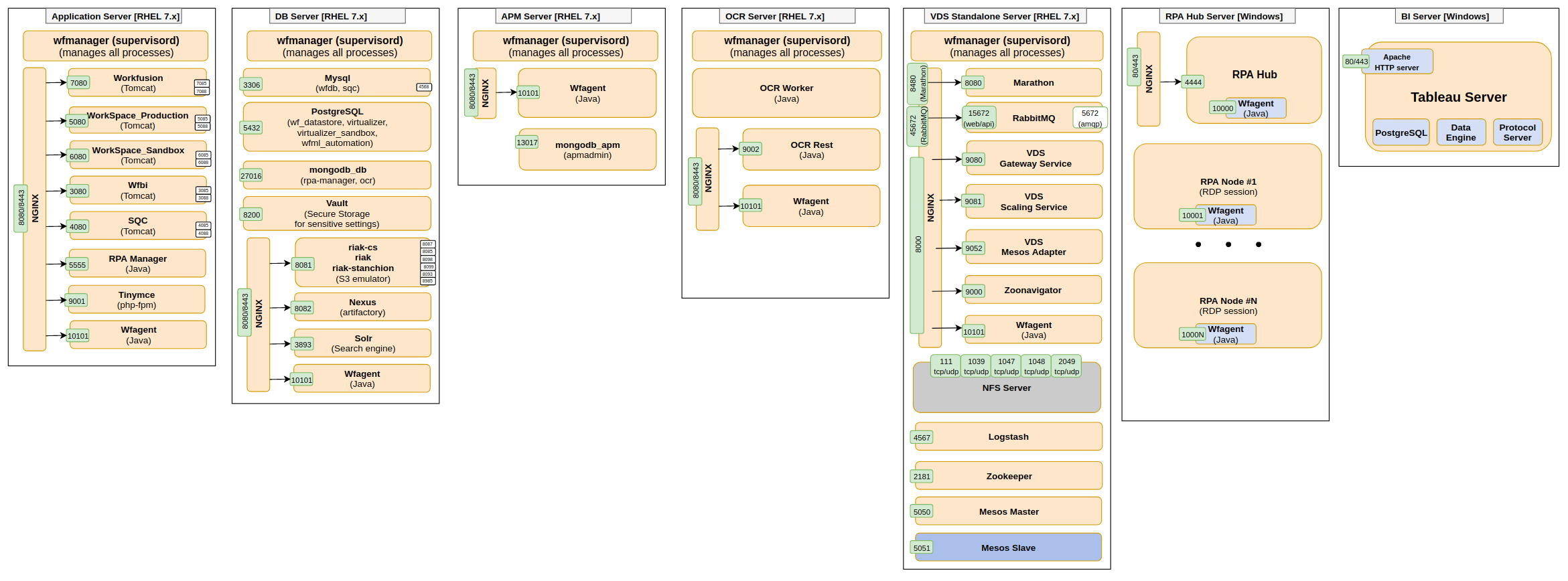

High-level architecture
VDS architecture
VDS supports two types of installation.
- VDS Standalone: VDS Master + NFS Share + one VDS Slave on the same server. The VDS Standalone type is shown above in the high-level architecture diagram.
- VDS Cluster: a combination of one VDS Master + one or more VDS Slaves on separate servers.
- VDS Cluster may have two variations:
- VDS Cluster with NFS share on VDS Master Server
- VDS Cluster with NFS share on a separate server (NFS server provided by customer or NFS server provisioned by the installer)
- More Detailed description of VDS Standalone versus VDS Cluster can be found in the Pre-installation steps section. The diagram below depicts both variants.

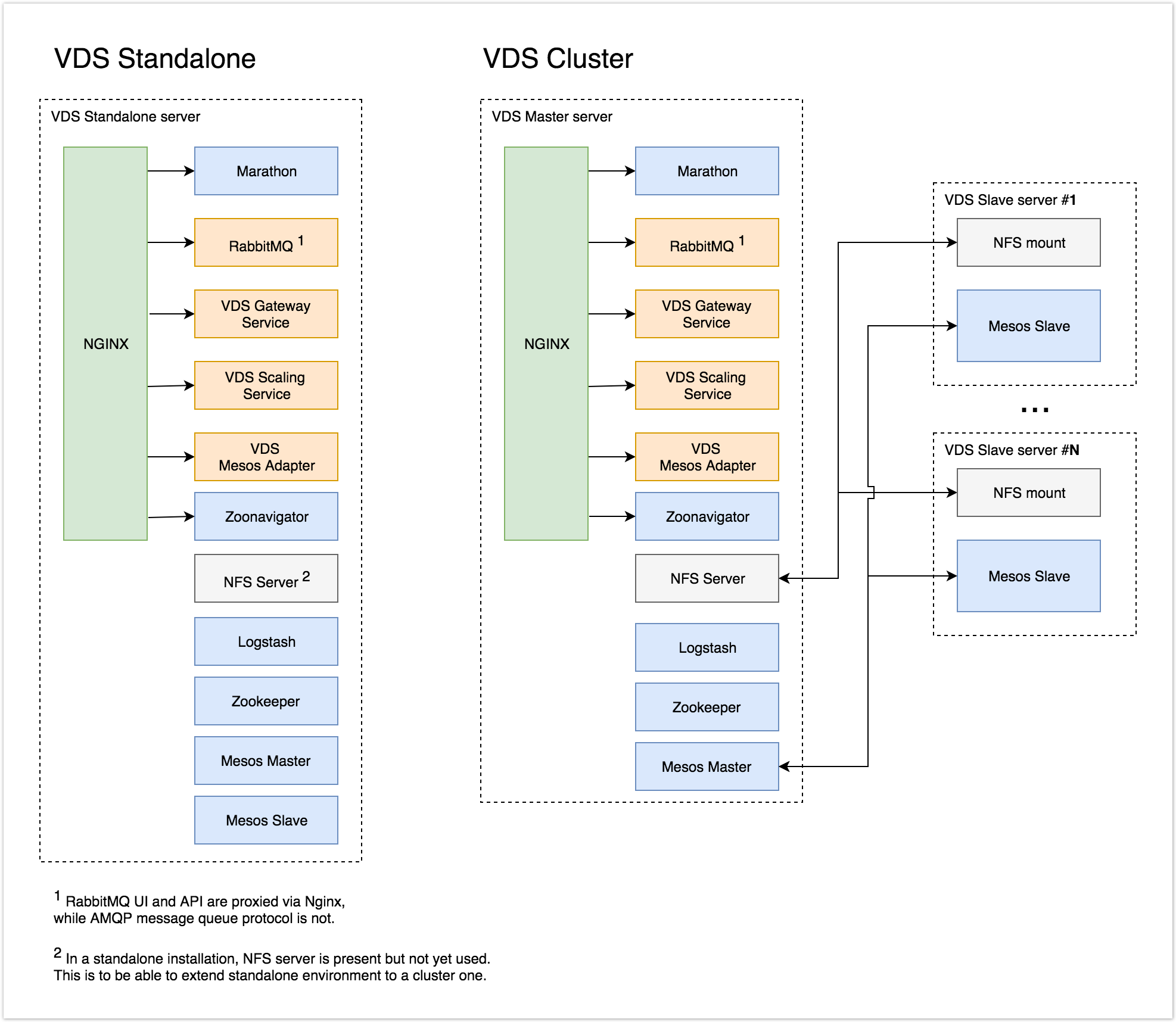

VDS Standalone vs VDS Cluster

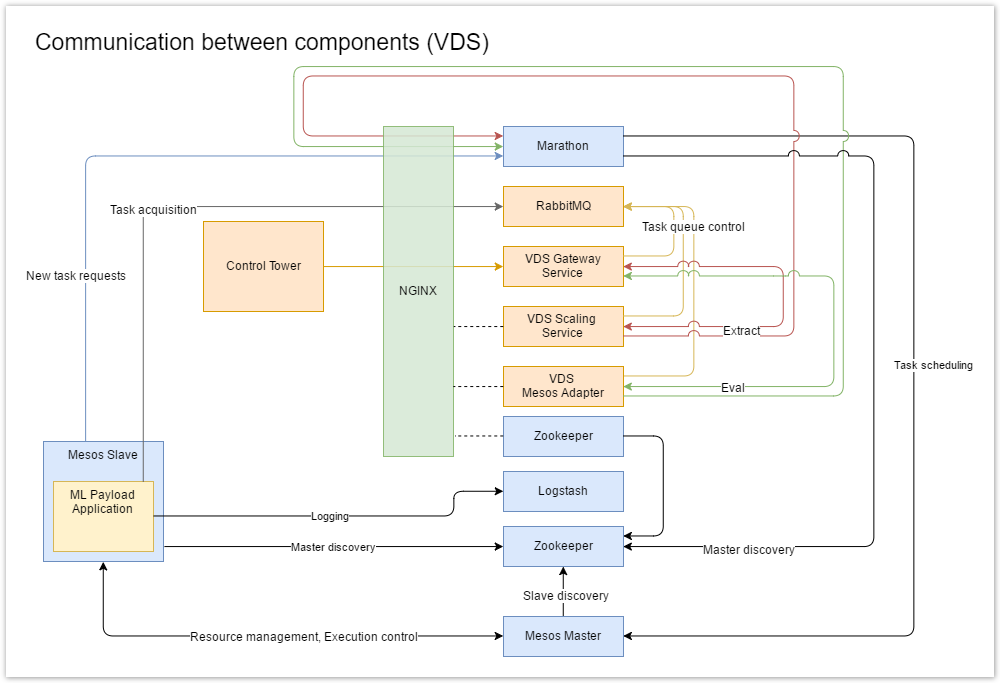

VDS components communication scheme
