Automate Java desktop applications

Launch applet and insert and extract data

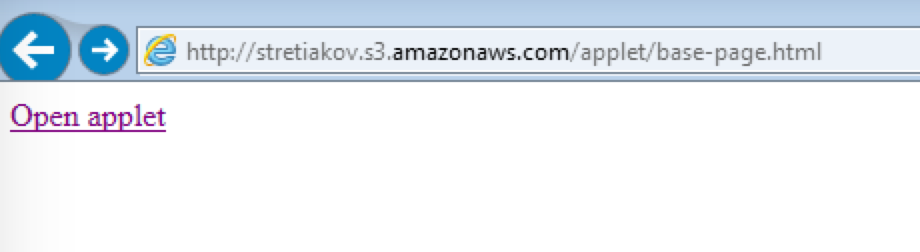

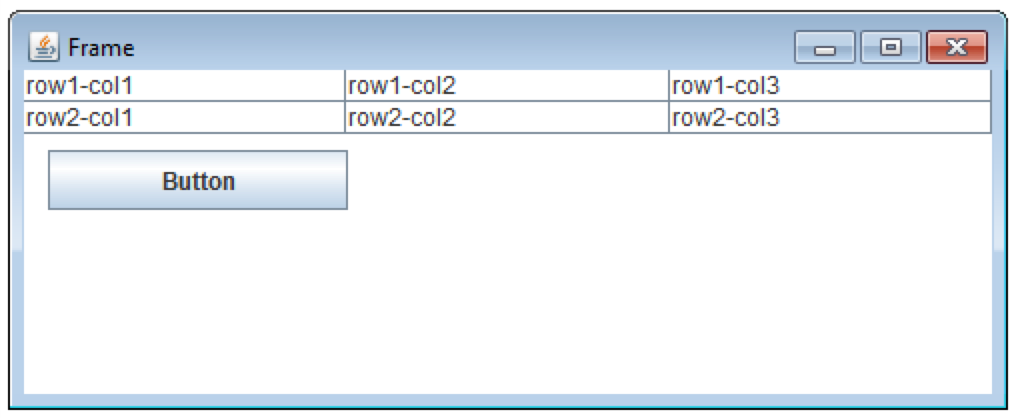

The example shows how to automate a simple applet. The preconditions are as follows:

Configure Internet Explorer for applets. For more details, refer to Configure Java applets.
Use sendKeys('{TAB 3}'). For the syntax, see Simulate keystrokes.

Example

<?xml version="1.0" encoding="UTF-8"?>
<config xmlns="http://web-harvest.sourceforge.net/schema/1.0/config" scriptlang="groovy">

    <robotics-flow>
        <robot name="ie" driver="internet explorer" close-on-completion="false">
            <script><![CDATA[
                open('https://rpa-tutorial.s3.amazonaws.com/table/login.html')
                $(byLinkText('Login')).click()
                $('a').click()
                sleep(5000)
            ]]></script>
        </robot>

        <robot name="bb8" driver="desktop" close-on-completion="true">
            <capability name="SEARCH_ALL_WINDOWS" value="true" />
            <script> <![CDATA[

                timeouts(40 * 1000)
                switchTo().window('[CLASS:SunAwtFrame;TITLE:Frame]')

                sendKeys('{TAB 3}')

                def text = selectAllTextAndCopy()
                pressTab()
                sendKeys(text)

                sleep(3000)

            ]]></script>
        </robot>

        <robot name="ie" driver="internet explorer" close-on-completion="true"/>

    </robotics-flow>
    <export include-original-data="false"/>
</config>

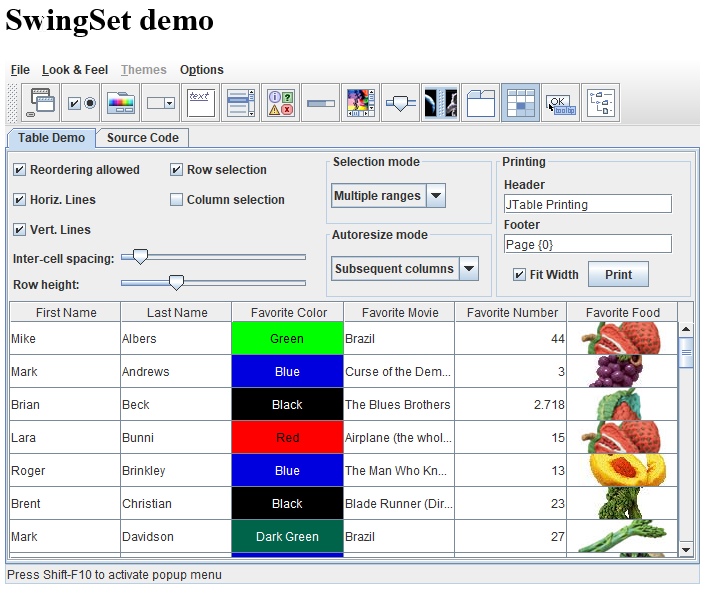

Automate SwingSet application

The following examples automate the SwingSet2 application using three options:

SwingSet2.jar file
Applet opening inside a browser tab: For details, see the SwingSet demo.
Applet opening in a new window: For details, see the SwingSet demo.

tip

To enable applets in your browser, refer to Configure Java applets.
To understand selectors for desktop applications, see Use inspecting tools for desktop automation.

Tables

The example automates the SwingSet application as a JAR file using only one Desktop driver:

JAR file example

import com.workfusion.odf2.compiler.BotTask;
import com.workfusion.odf2.core.task.AdHocTask;
import com.workfusion.odf2.core.task.TaskInput;
import com.workfusion.odf2.core.task.output.TaskRunnerOutput;
import com.workfusion.odf2.core.webharvest.rpa.RpaDriver;
import com.workfusion.odf2.core.webharvest.rpa.RpaFactory;
import com.workfusion.odf2.core.webharvest.rpa.RpaRunner;
import com.workfusion.rpa.driver.Driver;
import com.workfusion.rpa.helpers.RPA;
import org.slf4j.Logger;
import javax.inject.Inject;
import java.util.*;
import static com.workfusion.rpa.helpers.RPA.$;
import static com.workfusion.rpa.helpers.RPA.downloadFileOnAgent;

@BotTask(requireRpa = true)
public class AutomateJavaDesktopApplications implements AdHocTask {
    private final RpaRunner rpaRunner;
    private final Logger logger;

    @Inject
    public AutomateJavaDesktopApplications(RpaFactory rpaFactory, Logger logger){
        this.rpaRunner = rpaFactory
                .builder(RpaDriver.UNIVERSAL)
                .closeOnCompletion(true)
                .build();
        this.logger = logger;
    }

    @Override
    public TaskRunnerOutput run(TaskInput taskInput) {

        rpaRunner.execute(driver->{
            this.automateSwingSetApplicationJar(driver);
        });

        return taskInput.asResult()
                .withColumn("example_bot_task_output", "completed_successfully");
    }

    private void automateSwingSetApplicationJar(Driver driver){
        String appletUrl = "http://rpa-tutorial.s3.amazonaws.com/demo/jfc/SwingSet2/SwingSet2.jar";
        RPA.timeouts(40 * 1000);

        String localPath = downloadFileOnAgent(appletUrl);
        RPA.open("C:\\Java\\bin\\java -jar "+localPath);

        RPA.switchTo().window("[CLASS:SunAwtFrame; TITLE:SwingSet2]");
        $("[CLASS: JToggleButton; TOOLTIP: JTable demo]").click();

        // Change some values inside table.
        $("[CLASS: JTable; CELLTEXT:Mike]").sendKeys(" text value").pressEnter();
        RPA.sleep(500);
        $("[CLASS: JTable; CELL:1,1]").sendKeys(" append{ENTER}");
        RPA.sleep(500);

        // Clear cell values
        $("[CLASS: JTable; CELLTEXT:Jeff]").clear();
        RPA.sleep(500);
        $("[CLASS: JTable; CELL:6,0]").clear();
        RPA.sleep(500);

        // Work with text.
        String text = $("[CLASS: JTable; CELL:0,0]").getText();
        $("[CLASS: JTable; CELL:2,1]").sendKeys(text);
        RPA.sleep(3000);

    }

}

Combo boxes

The example automates the SwingSet application as a Java applet in the current browser tab using two drivers: Browser and Desktop.

note

The first driver is not closed on completion but only after the desktop.
The applet window is located using the [CLASS:SunAwtCanvas] selector.

Applet in the current browser tab

<?xml version="1.0" encoding="UTF-8"?>
<config xmlns="http://web-harvest.sourceforge.net/schema/1.0/config" scriptlang="groovy">

    <robotics-flow>
        <robot name="ie" driver="internet explorer" close-on-completion="false">
            <script><![CDATA[
                open('https://rpa-tutorial.s3.amazonaws.com/demo/jfc/SwingSet2/SwingSet2.html')
                sleep(7000)
            ]]></script>

        </robot>
        <robot name="bb8" driver="desktop" close-on-completion="true">
            <capability name="SEARCH_ALL_WINDOWS" value="true" />
            <script> <![CDATA[

                timeouts(40 * 1000)
                switchTo().window('[CLASS:SunAwtCanvas]')

                $('[CLASS: JToggleButton; TOOLTIP: JComboBox demo]').click()

                $(byXpath("//*[@text='Hair:']/following-sibling::*"))
                    .singleClick()
                    .sendKeys('Brent{ENTER}')

                $(byXpath("//*[@text='Eyes & Nose:']/following-sibling::*"))
                    .singleClick()
                    sendKeys('Brent{ENTER}')

                $(byXpath("//*[@text='Mouth:']/following-sibling::*"))
                    .singleClick()
                    .sendKeys('Brent')
                    .pressEnter()

                sleep(3000)

            ]]></script>
        </robot>

        <robot name="ie" driver="internet explorer" close-on-completion="true"/>

    </robotics-flow>
    <export include-original-data="false"/>
</config>

Trees

The example automates the SwingSet app as a Java applet in a new window using the universal driver.

The workflow is as follows:

The universal RPA driver is used. You can also use the browser and desktop combination as in the previous example.
The applet window is located using the [CLASS:SunAwtFrame; TITLE:SwingSet2] selector.
You can use regexps in CSS selectors: [CLASS:JTree; PATH: Music|Clas.*cal|Br.*ms|Conc.*tos]. For more details, see Use inspecting tools for desktop automation.

Tree example

<?xml version="1.0" encoding="UTF-8"?>
<config xmlns="http://web-harvest.sourceforge.net/schema/1.0/config" scriptlang="groovy">

    <robotics-flow>
        <robot name="bb8" driver="universal" close-on-completion="true">
            <capability name="SEARCH_ALL_WINDOWS" value="true" />
            <script> <![CDATA[

                rpaVariables = new HashMap()
                def appletUrl = 'https://rpa-tutorial.s3.amazonaws.com/demo/jfc/SwingSet2/custom/SwingSet2.html'
                timeouts(40 * 1000)

                openIE(appletUrl)
                sleep(7000)

                switchTo().window('[CLASS:SunAwtFrame; TITLE:SwingSet2]')

                $('[CLASS: JToggleButton; TOOLTIP:JTree demo]').click()
                sleep(1000)

                // getting tree node attributes
                rpaVariables.put('get_width', $('[CLASS:JTree]').getAttribute('getWidth'))
                rpaVariables.put('get_height', $('[CLASS:JTree]').getAttribute('getHeight'))

                $('[CLASS:JTree; TEXT:Rock; LEVEL:1]').sendKeys('{RIGHT}')
                sleep(1000)
                $('[CLASS:JTree; TEXT:Komeda]').sendKeys('{RIGHT}')
                sleep(1000)
                $('[CLASS:JTree; TEXT:Genius Of; LEVEL:3]').sendKeys('{RIGHT}')
                sleep(1000)

                rpaVariables.put('level', $('[CLASS:JTree; TEXT:More Is More; LEVEL:4]').getAttribute('LEVEL'))

                $('[CLASS:JTree; TEXT:More Is More; LEVEL:4]').sendKeys('{RIGHT}')
                sleep(1000)
                $('[CLASS:JTree; PATH: Music|Classical|Beethoven|Quartets]').sendKeys('{RIGHT}')
                sleep(1000)
                $('[CLASS:JTree; PATH: Music|Classical|Beethoven|Quartets|Six String Quartets]').sendKeys('{RIGHT}')
                sleep(1000)

                // using regexp in selectors
                $('[CLASS:JTree; PATH: Music|Clas.*cal|Br.*ms|Conc.*tos]').sendKeys('{RIGHT}')
                sleep(3000)

            ]]></script>
        </robot>
    </robotics-flow>
    <export include-original-data="false">
        <loop item="rpaVar">
            <list>
                <script return="keys">
                    keys = new ArrayList(rpaVariables.keySet())
                </script>
            </list>
            <body>
                <single-column name="${rpaVar}">
                    <template>${rpaVariables.get(rpaVar.toString())}</template>
                </single-column>
            </body>
        </loop>
    </export>
</config>
