Issues caused by incorrect RPA configuration

The article lists a number of the most common issues stemming from incorrect RPA configuration and tips to troubleshoot them.

RPA recordings are not uploaded to S3

To resolve the problem, set /config/bot-agent/rpa.recording.enabled (in Work.AI v10.3, /config/bot-agent/rpa.upload.recording.s3), on the ZooKeeper node to true and restart the WorkFusion services.

Web automation fails with 'DriverCallTimeoutException' error

To avoid the Business Process failure, configure the following property in {RPA_INSTALLATION_FOLDER}/worker/worker.bat:

Drpa.timeouts.http=<value_in_milliseconds>
Desktop automation fails with 'NativeTimeoutException' error

To avoid the Business Process failure, configure the following property in {RPA_INSTALLATION_FOLDER}/worker/worker.bat:

Drpa.timeouts.mfw=<value_in_milliseconds>
Windows Defender blocks execution of D:/rpa/java/bin/java.exe

The following symptoms indicate the issue:

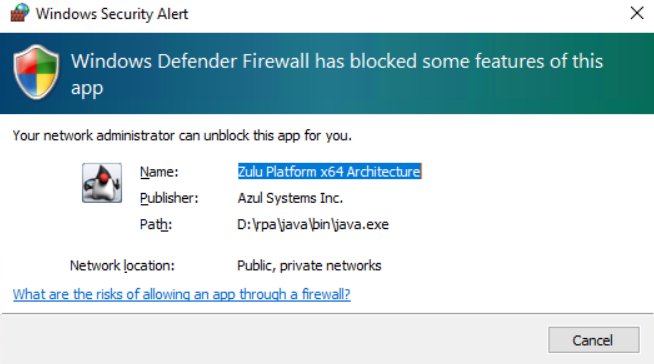

  • You see the Windows Defender screen appear during process execution.

  • In the Windows event logs, you see the following message:

    A rule has been added to the Windows Defender Firewall exception list.

        Added Rule:
            Rule ID:    TCP Query User{ADA6DD42-7CF4-4132-92DB-7AAA2F96F462}D:\rpa\java\bin\java.exe
            Rule Name:  Zulu Platform x64 Architecture
            Origin: Local
            Active: Yes
            Direction:  Inbound
            Profiles:   Public
            Action: Block
            Application Path:   D:\rpa\java\bin\java.exe
            Service Name:
            Protocol:   TCP
            Security Options:   None
            Edge Traversal: None
            Modifying User: S-1-5-80-3088073201-1464728630-1879813800-1107566885-823218052
            Modifying Application:  C:\Windows\System32\svchost.exe

To resolve the issue, add /rpa/java/bin/java.exe to the whitelist of Windows Firewall.

Out-of-memory error for Worker

To resolve any RPA issue due to the cause, change the Xms and Xmx Worker memory setting in worker.bat or bot-agent-unit.yml.

Worker closed during process execution by CTRL+C

To enable the Worker console to ignore the CTRL+C signal, set the associated variable to true. You can do this in bot-agent-unit.yml/worker.bat in the standard way through the -D switch. For example, insert the following line:

-Drpa.worker.ignore.ctrlc=true

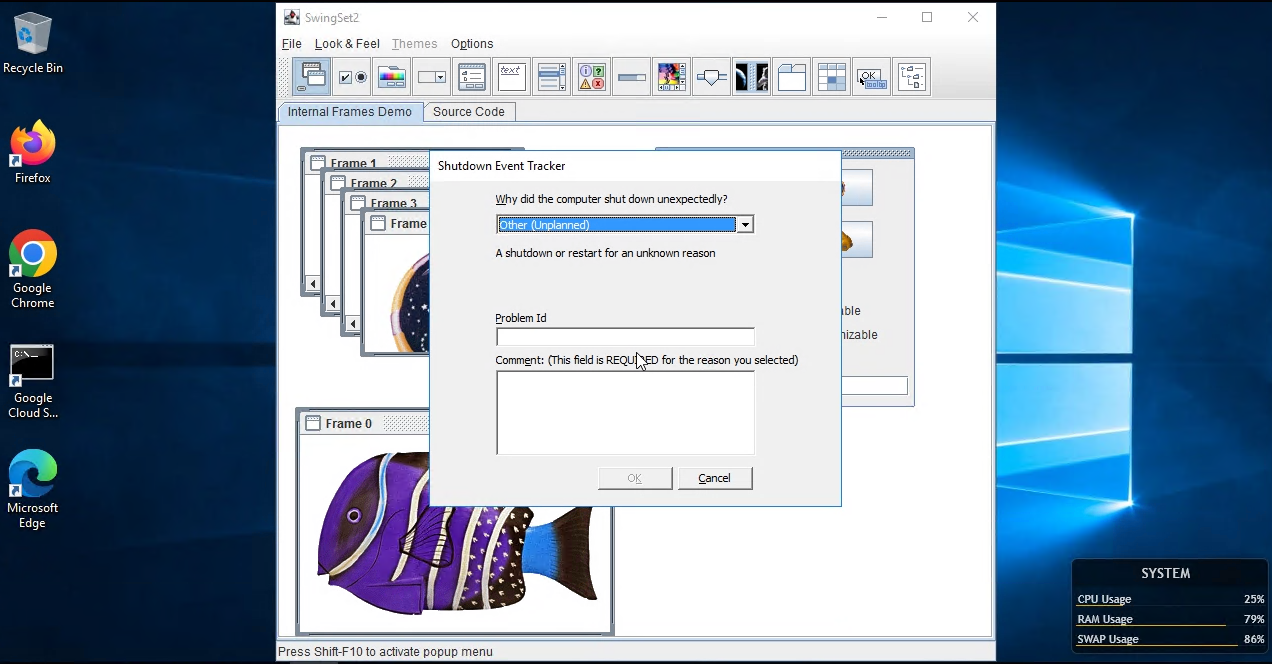

Desktop automation fails due to Display Shutdown Event Tracker window

The desktop automation fails due to the Display Shutdown Event tracker window appearing in front of the application.

To resolve the issue, do as follows:

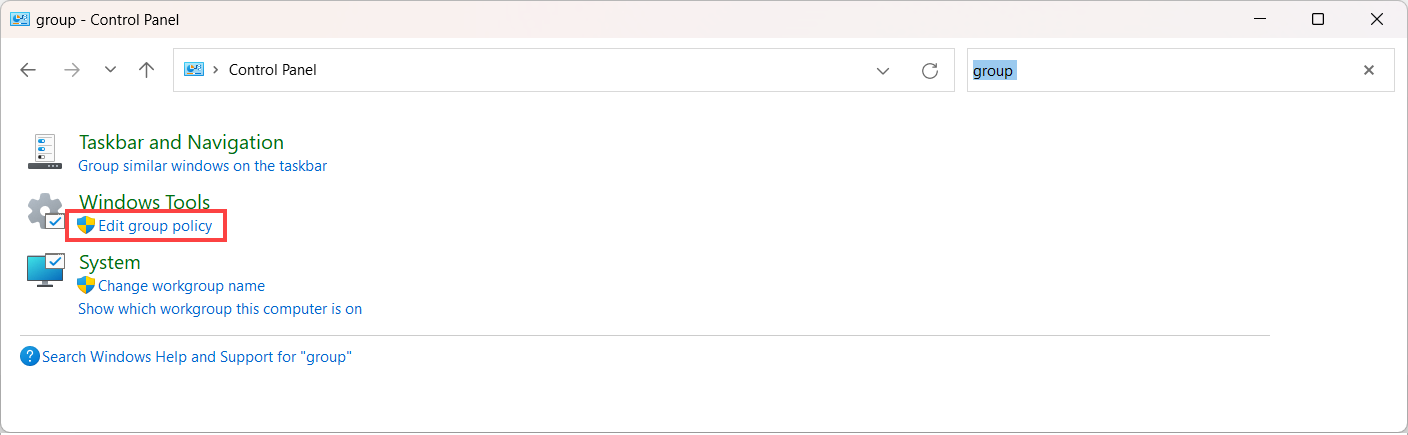

  1. Open Control Panel > Windows Tools and select Edit group policy.

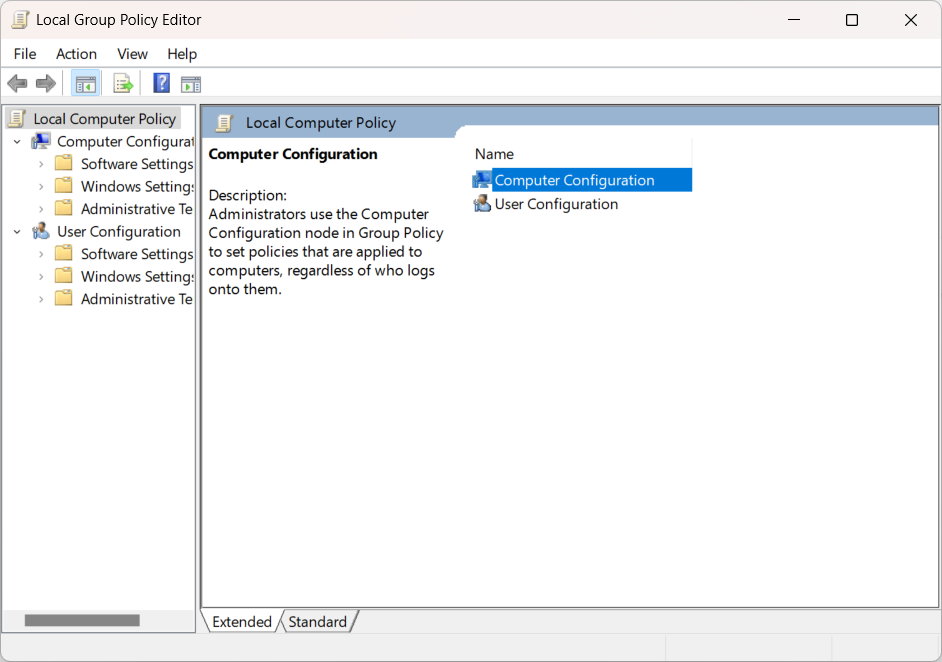

  2. In the Local Group Policy Editor window, select Local Computer Policy > Computer Configuration > Administrative Templates > System.

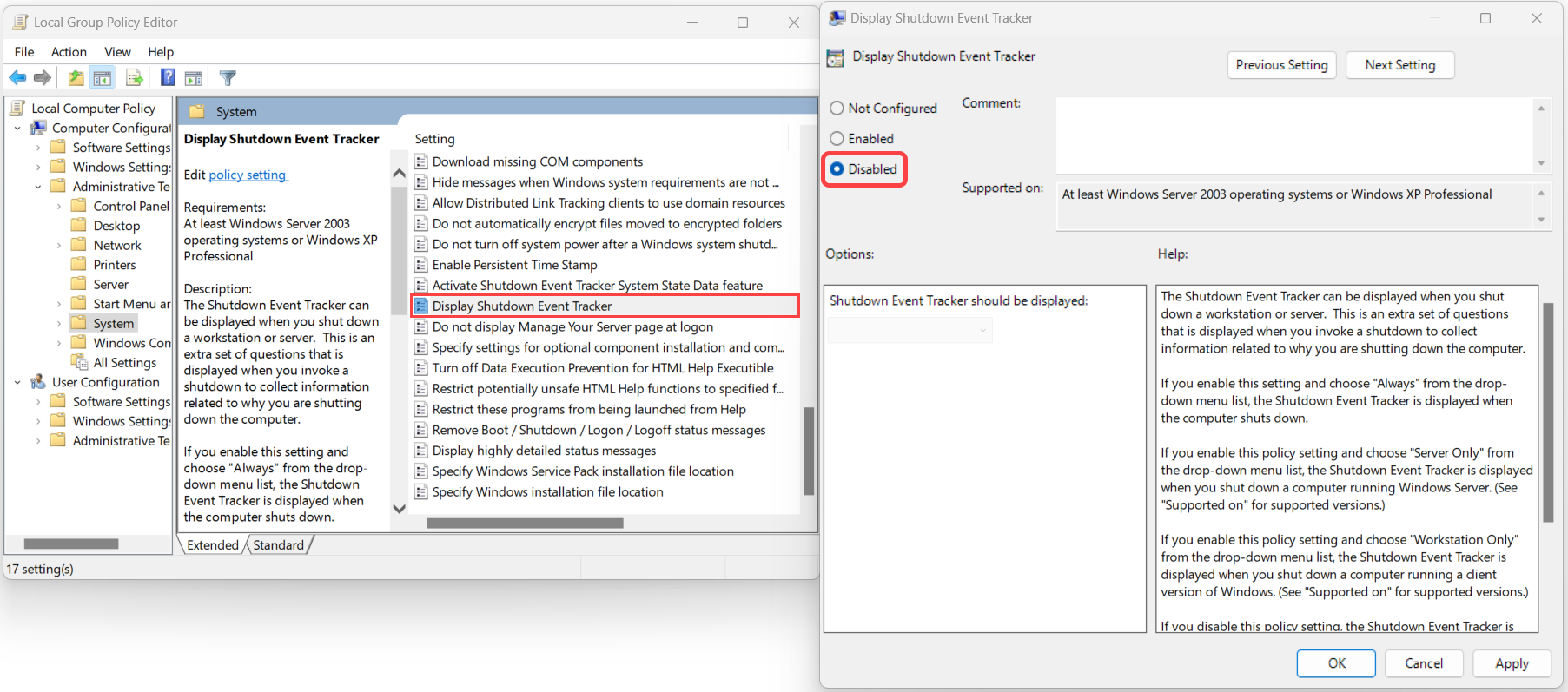

  3. Double-click Display Shutdown Event Tracker, set it to Disabled, and click OK.
