Issues related to OCR server performance

If you suspect your issue is related to poor OCR server performance, act as follows:

Analyze Kibana dashboards​

Check whether the issue is reproduced at the moment of the investigation. In Kibana, examine the Cluster Utilization, System Overview, Host Overview dashboards for CPU, memory, inputs, and outputs.

For more information, refer to the following troubleshooting guides as there are already generic instructions on inspecting the server condition via Kibana:

If you notice any disruptions, request the Support team for assistance in further investigation.

Use Postman, your browser, or any preferable tool and make the /api/v1/health-check request against the OCR endpoint. This can bring you a bunch of information, but pay special attention to the following:

  • Endpoint components
  • Error count and errors
  • Status
  • Warning count and warnings

For details on the request, refer to the OCR API documentation.

Review event longs​

To find out whether the issue resulted from an OCR crash or Business Process (BP) failure, check the OCR BP event logs.

tip

Such BP components as OCR and ML sub-processes can have caches with already processed documents so that the BP doesn't have to handle those documents once again unnecessarily. If your issue is about OCR not processing, its resolution can involve clearing caches.

Also, go to the Results tab of the appropriate BP and get the document results from the OCR output and input.

  1. Click the cogwheel button to open the settings:

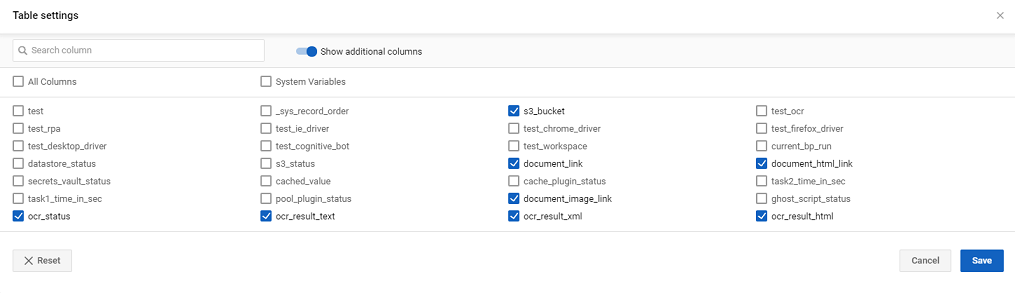

  2. Choose the columns to target the parameters associated with the document. Mind that some of them can be BP-specific:

  3. Check the OCR step processing time and evaluate the OCR input. Compare it to the regular processing time before the issue occurred and determine if the issue is related to the OCR server performance or if it's strictly BP-related.

tip

OCR API works with retries and delivers non-unique results (three OCR attempts). To find the request and eliminate the issue, for instance, multiple requests, review Nginx or logs.

Check OCR server​

First, check the OCR server configuration corresponds to system requirements. Next, get results from OCR API. Below, you can find helpful API endpoints and links to related articles:

  • Display the response from the /api/v1/metrics/activeLicense request. For details, refer to the OCR API article.

    To see if OCR is stuck due to an expired license, exceeded volume, or for another reason, use the following fields:

    allowedCoresCount
    availableBarcodeModules
    availableEngineModules
    availableExportFormats
    availableLanguageSets
    availableTextTypes
    availableVisualComponents
    category
    expirationDate
    limited
    minimumCoresCountPerInstance
    serialNumber
    volume
    volumeRefreshingPeriod
    volumeRemaining
    warnings

  • Check if the document count exceeds the limitations or processes too much at once. Send a request to /api/v1/metrics/count with the following parameters:

    • status: either one of the TaskStatus values or an aggregate, such as DONE, PROCESSING, ALL.
    • period: BEGINNING to NOW-MINUTES. The default is 60 minutes.

    For details, refer to the OCR API documentation.

  • Review the overall statistics by sending api/v1/metrics/stats. For details, refer to the OCR API documentation. The available information is as follows:

    • Time period
    • Minimum processing time
    • Descriptive statistics
note

Sometimes, the OCR server batch-processes an upload, which cannot be done quickly. All documents are then queued for an extended period of time. In a larger environment, you can track the OCR workload at endpoints by sending the api/v1/cloud/listLicenses request. For details, refer to the OCR API documentation.

Analyze output​

If you confirm the issue, change the OCR server configuration accordingly. When you discover no critical fallbacks on the server, you may want to read the topic about performance improvements. Otherwise, continue the investigation.
