Set up local workstation development environment

To start exploring Open Development Framework, prepare your workstation, and use Quickstart Archetypes to generate an initial ODF-based project. Follow this guide for detailed instructions.

ODF is released for the following versions of Intelligent Automation Cloud Enterprise:

  • 10.2.x
  • 10.1.x
  • 10.0.0
  • 9.4.2-9.4.3
  • 9.3.4
  • 9.3.0-9.3.3
  • 9.2.2
  • 9.2.0-9.2.1

Such version fragmentation is due to the availability of certain WorkFusion features. For example, Asset Bundle import API is available for v10.1.x, v9.3.4, v9.2.2. This guide contains steps adjusted for v10.1.x.

Install Java 8 SDK

Download Java 8 SDK from the Oracle website and install it.

Install local Nexus

Refer to this guide to download and install a Nexus server on your workstation.

With the local Nexus, you have full control over the repository that works with your local Control Tower. You can use the local Nexus for deploying Bot Config Bundles (BCBs) to the local Control Tower. These can be BCBs originating from your WorkFusion Studio or copied from the public WorkFusion Nexus.

Configure local environment

Configure Maven

Configure Maven's settings.xml file located in the C:/User/\[USER\_HOME\]/.m2 directory:

<settings>
    <servers>

        <!-- Nexus Credentials for Maven to download WF dependencies to build a project. Read-only permissions are needed for this user. -->
        <server>
            <id>wf-dependencies</id>
            <username>odf-user</username>
            <password>********</password>
        </server>

        <!-- Credentials for using Package Import API to deploy to a local or server Control Tower -->
        <server>
            <id>control-tower</id>
            <username>ctuser</username>
            <password>********</password>
        </server>

        <!-- Credentials to deploy BCBs to Nexus. Subsequently, the local or server Control Tower pulls BCBs from Nexus. Write permissions are needed for this user.  -->
        <server>
            <id>bcb-repository</id>
            <username>admin</username>
            <password>********</password>
        </server>

    </servers>

    <profiles>
        <profile>
            <id>wf-repo</id>
            <repositories>
                <repository>
                    <id>wf-dependencies</id>
                    <url>https://repository.workfusion.com/content/groups/dependencies</url>
                </repository>
            </repositories>
        </profile>
    </profiles>

    <activeProfiles>
        <activeProfile>wf-repo</activeProfile>
    </activeProfiles>

</settings>
note

If you don't have the .m2 directory with settings.xml, create it manually in the C:/Users/[USER_HOME] directory.

If you use custom Nexus (not https://repository.workfusion.com), your default settings.xml file must be as shown below:

Expand to see the code

<settings>
    <servers>

        <!-- Nexus Credentials for Maven to download WF dependencies for building a project. Read-only permissions are needed for this user. -->
        <server>
            <id>wf-dependencies</id>
            <username>someUser1</username>
            <password>********</password>
        </server>

        <!-- Credentials for Package import API to local or server Control Tower -->
        <server>
            <id>control-tower</id>
            <username>someUser2</username>
            <password>********</password>
        </server>

        <!-- Credentials to deploy BCBs to Nexus. Subsequently, the local or server Control Tower pull BCBs from Nexus. Write permissions are needed for this user.  -->
        <server>
            <id>bcb-repository</id>
            <username>someUser3</username>
            <password>********</password>
        </server>

    </servers>

    <profiles>
        <profile>
            <id>wf-repo</id>
            <repositories>
                <repository>
                    <id>wf-dependencies</id>
                    <!-- URL to Nexus with dependencies, such as https://repository.workfusion.com/content/groups/dependencies  -->
                    <url>nexusURL</url>
                </repository>
            </repositories>
        </profile>
    </profiles>

    <activeProfiles>
        <activeProfile>wf-repo</activeProfile>
    </activeProfiles>

</settings>

Install IA Cloud Developer

Intelligent Automation Cloud Developer is a special version of Intelligent Automation Cloud built for developers.

note

Download Intelligent Automation Cloud Developer v10.1.6 and install it. For the download link and installation instructions, refer to Install IA Cloud Developer.

Launch Intelligent Automation Cloud Developer and start Server components

  1. Launch IA Cloud Developer and click the icon in the top right corner to switch to the Code perspective.

  2. Now, you are ready to start Server components (local Control Tower, WorkSpace, Minio File Storage, RPA Agent). Switch the toggle to the ON position.

  3. Wait for one minute until you see the links to Server components. Once they appear, go to Control Tower.

  4. Log in to Control Tower using the credentials created during the installation of Intelligent Automation Cloud Developer.

ODF artifacts on local Control Tower

Intelligent Automation Cloud Developer has pre-installed ODF artifacts of compatible versions. If you want to install ODF with a different version of artifacts, click here.

ODF Bot Tasks are deployed successfully to your Control Tower if you can see reusable Bot Tasks while editing a new business process. On the right panel of reusable bot components, you can see the number of bot tasks.

Set up project

Generate project from Archetype

Maven archetypes are project templates enabling to quickly create projects based on a set of core files. You can generate a project from WorkFusion Studio using the wizard:

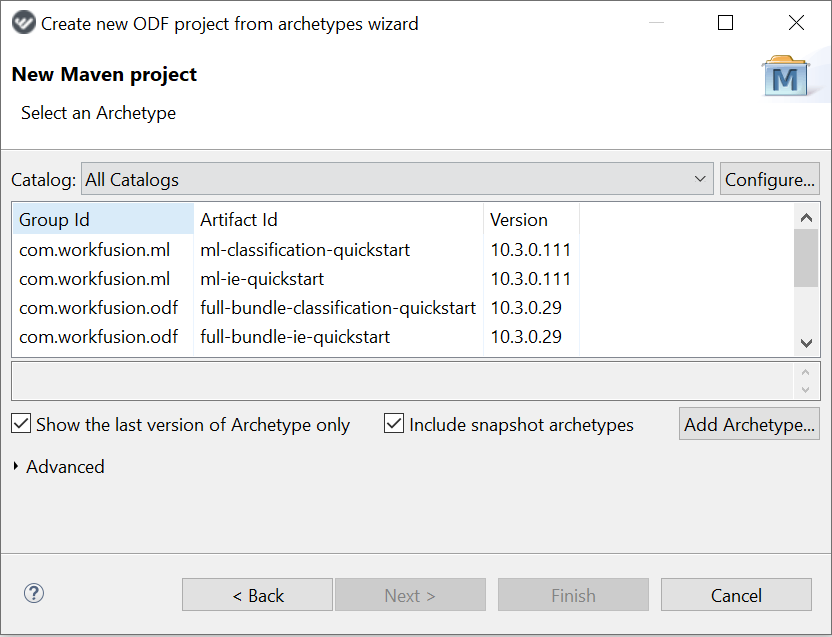

  1. In WorkFusion Project Navigator, right-click New > Start ODF project from Archetype.

  2. Clear the Show the last version of Archetype only checkbox to see the archetypes for all previous ODF versions. Out of available archetypes for your version of Intelligent Automation Cloud, choose the one that best fits your project. Compare using the Archetypes for ODF table in the section below.

  3. Click Next.

Choose archetypes for ODF

In the table below, there are a number of Quickstart Archetypes. Choose the archetype version based on the Intelligent Automation Cloud Enterprise version. Refer to the compatibility matrix.

#

Archetype

Brief description
1

full-bundle-classification-quickstart

Generates a project with three modules:

  1. BCB module for Java classes (Intake, RPA, Utils, etc.) and Bot Tasks
  2. ML SDK Classification quickstart module
  3. Package module (for Asset Bundle import)
2

full-bundle-ie-quickstart

Generates a project with three modules:

  1. BCB module for Java classes (Intake, RPA, Utils, etc.) and Bot Tasks
  2. ML SDK Information Extraction quickstart module
  3. Package module (for Asset Bundle import)
3

minimal-bundle-quickstart

 Generates a project with the Package module only (for Asset Bundle import)
4 rpa-bundle-quickstart

Generates a project with two modules:

  1. BCB module for Java classes (Intake, RPA, Utils, etc.) and Bot Tasks
  2. Package module (for Asset Bundle import)

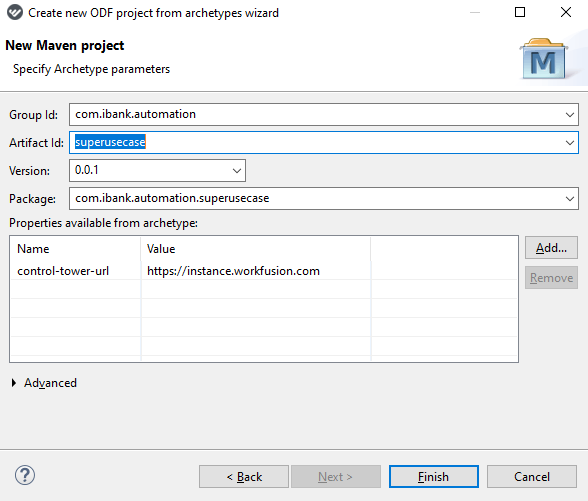

Once you select an archetype to start from, the wizard asks to define the initial settings for your Maven project. Follow the instructions below:

  1. Enter Group Id and Artifact Id.
  2. Use the Release type versioning (for example, 0.0.1 or 1.0) because the default Nexus configuration requires repositories of this type. If you use the Snaphot type (for example, 0.0.1-SNAPSHOT) and specify the -SNAPHOT postfix in the version, deployment to Nexus fails.
  3. Configure the Control Tower URL. This setting is used for deploying projects to the server Control Tower as part of an Asset Bundle.
  4. Click Finish.
tip

Artifact Id defines the main Maven project name. For your automation use case, use a name common within your organization. We suggest giving intuitive names to projects and modules so as not to confuse your peer developers. Keep names short. Use lower-case Latin characters and the "-" symbol.

Now, your initial project structure is generated.

Depending on which archetype you selected, you get a project with 1 to 3 Maven modules. You can use them to code an automation solution, as well as to build and deploy the solution to Control Tower.

To generate a project from Archetype using the command line, follow the instructions:

  1. To link the WorkFusion public archetypes repository to Maven, add this to your Maven's settings.xml before the <servers> section:

      <profiles>
    <profile>
      <id>all</id>
      <repositories>
        <repository>
          <id>wf-archetypes</id>
          <name>WorkFusion Nexus Repository - dependencies</name>
          <url>https://repository.workfusion.com/content/repositories/archetypes/</url>
          <layout>default</layout>
          <releases>
            <updatePolicy>daily</updatePolicy>
          </releases>
          <snapshots>
            <enabled>false</enabled>
          </snapshots>
        </repository>
      </repositories>
    </profile>
  </profiles>
  <activeProfiles>
    <activeProfile>all</activeProfile>
  </activeProfiles>

  2. Execute the command from the console:

    mvn archetype:generate -DgroupId=com.workfusion.myproject -DartifactId=test-arch-project -Dversion=1.0.0 -DarchetypeGroupId=com.workfusion.odf -DarchetypeArtifactId=minimal-bundle-quickstart -DarchetypeVersion=X.X.X.X -DinteractiveMode=false -Dcontrol-tower-url=http://myenv.com

Build Maven project

To build a project, follow the instruction:

  1. Right-click the main pom.xml file and select Run As > Maven install.

  2. As soon as you see the BUILD SUCCESS message in the console, create your own components.

  3. After you add or modify the Java code, select Maven install again to execute the Bot Task with changes.

Mind known issue

You can get the "PKIX path building failed" exception during a Maven build. It is a known issue. For details, visit the page.

To fix this, add the following JVM parameters:

MAVEN_OPTS="-Dmaven.wagon.http.ssl.insecure=true -Dmaven.wagon.http.ssl.allowall=true -Dmaven.wagon.http.ssl.ignore.validity.dates=true"

Another solution is to open the nexus/central repo in your browser, download the certificate, and then import it to the Java TrustStore on a local machine.

Run or debug Bot Task

Now, to test one of the pre-generated Bot Tasks from WorkFusion Studio.

  1. Open Transaction Supplier Example.xml from the [ARTIFACT]-bcb project.
  2. Select Run As (or Debug As) > Bot Task.

In case of Debug, make sure to first add breakpoints to Java classes.

As soon as you see the EXECUTION SUCCESS message in the console, you are ready to test Bot Tasks on a workstation.

Deploy to local or server Control Tower

Each Archetype provided by ODF generates the [ARTIFACT]-package module. It contains a pre-configured Asset Bundle structure where you can put additional static resources if required.

Whether you deploy to local or server Control Tower, use Maven goals. For details, refer to the guide.

You can also deploy an automation project using Asset Bundle import API.

Study project structure

In the generated boilerplate project, start with exploring the following classes and Bot Tasks.

The Intake Engine example comes with AppBuilderExample, which is a class providing the API for building.

package com.ibank.automation.invoices_usecase.app;

import com.workfusion.intake.core.App;
import com.workfusion.intake.core.Module;
import groovy.lang.Binding;

import java.util.List;

public class AppExample extends App {

    protected AppExample(Binding context, List<Module> additionalModules, List<Module> overrideModules, Object injectContext) {
        super(context, additionalModules, overrideModules, injectContext);
    }

    public static AppBuilderExample init(Binding binding) {
        return new AppBuilderExample(binding);
    }
}

The ModuleExample and CipherModule modules come together and are used in the AppBuilderExample class. SecurityModule is used for access with credentials.

package com.ibank.automation.invoices_usecase.app;

import com.workfusion.intake.core.Module;
import groovy.lang.Binding;

import java.util.Arrays;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class AppBuilderExample {
    private Binding context;
    private Map<String, String> params = new HashMap<>();
    private List<Module> overrideModules;
    private Object injectContext;

    public AppBuilderExample(Binding context) {
        this.context = context;
    }

    public AppBuilderExample params(Map<String, String> params) {
        this.setParams(params);
        return this;
    }

    public AppBuilderExample override(Module... modules) {
        overrideModules = Arrays.asList(modules);
        return this;
    }

    public AppBuilderExample injectFields(Object context) {
        this.injectContext = context;
        return this;
    }

    public AppExample get() {
        Module myModule = new ModuleExample();
        Module cipherModule = new CipherModule();
        Module securityModule = new SecurityModule(context);

        List<Module> modules = Arrays.asList(myModule, cipherModule, securityModule);
        return new AppExample(context, modules, overrideModules, injectContext);
    }

    public Map<String, String> getParams() {
        return params;
    }

    public void setParams(Map<String, String> params) {
        this.params = params;
    }
}

Below is a Bot Task showing how to invoke TransactionEncryptionProcessor from XML.

<config xmlns="http://web-harvest.sourceforge.net/schema/1.0/config" scriptlang="groovy">

    <script><![CDATA[
        import com.ibank.automation.invoices_usecase.app.AppExample
        import com.ibank.automation.invoices_usecase.processor.TransactionEncryptionProcessor

        // Expecting only '_sys_transaction_id' from previous step.
        String transactionId = _sys_transaction_id.toString();
        def app = AppExample.init(binding).get();

        def processedTransaction = app.processTransaction(TransactionEncryptionProcessor.class, transactionId);
        ]]></script>

    <!-- Nothing additional required to export. All data was saved inside Transaction. -->
    <export include-original-data="true">
    </export>
</config>

Below is a Bot Task showing how to invoke TransactionSupplierExample from XML.

<config xmlns="http://web-harvest.sourceforge.net/schema/1.0/config" scriptlang="groovy">

    <script><![CDATA[
        import com.ibank.automation.invoices_usecase.app.AppExample
        import com.ibank.automation.invoices_usecase.supplier.TransactionSupplierExample

        def app = AppExample.init(binding).get();
        def transactions = app.loadTransactions(TransactionSupplierExample.class);

        // Exporting only transaction ids to the next steps.
        result = [];
        transactions.each {
            result << ['transaction_id': it.id];
        }
        ]]></script>

    <export include-original-data="false">
        <multi-column list="${result}" split-results="true">
            <put-to-column-getter name="_sys_transaction_id" property="transaction_id"/>
        </multi-column>
    </export>
</config>

Below is a Unit Testing example with the TransactionEncryptionProcessor class.

package com.ibank.automation.invoices_usecase.processor;

import java.util.ArrayList;
import java.util.List;
import javax.inject.Inject;
import lab.lab.app.AppExample;
import com.workfusion.odf.api.domain.Document;
import com.workfusion.odf.api.domain.Transaction;
import com.workfusion.odf.core.Module;
import com.workfusion.rpa.core.plugin.s3.S3PluginAdapter;
import groovy.lang.Binding;
import com.ibank.automation.invoices_usecase.processor.TransactionEncryptionProcessor;
import lab.lab.utils.Cipher;
import org.codejargon.feather.Provides;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.mockito.Mockito;
import org.slf4j.Logger;

public class TransactionEncryptionProcessorTest {

    @Inject
    private TransactionEncryptionProcessor transactionEncryptionProcessor;

    private S3PluginAdapter s3PluginAdapter;
    private Cipher cipher;
    private Logger logger;

    private Module testModule = new Module() {
        @Provides
        public S3PluginAdapter s3PluginAdapter() {
            return s3PluginAdapter;
        }

        @Provides
        public Cipher cipher() {
            return cipher;
        }

        @Provides
        public Logger logger() {
            return logger;
        }
    };

    @BeforeEach
    public void init() {
        s3PluginAdapter = Mockito.mock(S3PluginAdapter.class);
        cipher = Mockito.mock(Cipher.class);
        logger = Mockito.mock(Logger.class);
        Binding binding = new Binding();
        AppExample.init(binding).override(testModule).injectFields(this).get();
    }


    @Test
    public void transform() {
        //given
        final Transaction transaction = getTransaction();
        byte[] content = "link1.txt".getBytes();

        //when
        Mockito.when(s3PluginAdapter.get(Mockito.any())).thenReturn(content);
        Mockito.when(cipher.encode(Mockito.any())).thenReturn(new byte[0]);
        final Transaction processedTransaction = transactionEncryptionProcessor.transform(transaction);

        //then
        Mockito.verify(cipher, Mockito.times(1)).encode(content);
    }

    private Transaction getTransaction() {
        final Transaction transaction = new Transaction();
        transaction.setId("1");
        final List<Document> docs = new ArrayList<>();

        Document doc = new Document();
        doc.setId("1");
        doc.setTextLink("link1.txt");
        docs.add(doc);
        transaction.setDocs(docs);

        return transaction;
    }
}

Below is an example of the TransactionSupplier class generating N transactions.

package com.ibank.automation.invoices_usecase.supplier;

import com.workfusion.intake.api.connector.TransactionSupplier;
import com.workfusion.intake.api.domain.Document;
import com.workfusion.intake.api.domain.Transaction;
import com.workfusion.rpa.core.storage.S3Manager;
import org.springframework.http.MediaType;

import javax.inject.Inject;
import java.io.ByteArrayInputStream;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Collection;
import java.util.UUID;

public class TransactionSupplierExample implements TransactionSupplier {

    private S3Manager s3Manager;

    @Inject
    public TransactionSupplierExample(S3Manager s3Manager) {
        this.s3Manager = s3Manager;
    }

    @Override
    public Collection<Transaction> get() {
        Collection<Transaction> transactions = new ArrayList<>();
        for (int i = 0; i < 5; i++) {
            Transaction transaction = new Transaction();
            transaction.setId(uuid());
            transaction.setDocs(Arrays.asList(createDocument()));
            transactions.add(transaction);
        }
        return transactions;
    }

    private Document createDocument() {
        Document document = new Document();
        document.setId(uuid());
        document.setName("Example Document");
        document.setTextLink(generateAndUploadDocument());
        return document;
    }

    private String generateAndUploadDocument() {
        return s3Manager.putFile(
                uuid() + ".txt",
                new ByteArrayInputStream("Some very important text".getBytes()),
                MediaType.TEXT_PLAIN_VALUE);
    }

    private String uuid() {
        return UUID.randomUUID().toString();
    }
}
← Benefit of pre-packaged componentsODF architecture overview →
