OCR Bridge is introduced to improve:

Performance. The new OCR Bridge step reduces throughput due to processing documents asynchronously without submitting redundant tasks to Control Tower workers and receiving responses instantly in Control Tower.
Usability. Only one step is needed to recognize a document whose output is compatible with the ToD Manual Task.

OCR REST configuration properties

Property	Default value	Description
`execution.bridge.task.queue`	`exec.<CT_HOST>.result.ocr`	Name of the OCR Bridge queue.
`execution.bridge.prefetch.count`	100	Prefetch count of the Bridge queue.
`execution.bridge.thread.count`	20	Count of threads for consuming messages of the Bridge queue.

OCR Bridge Step

Input parameters

Parameter	Code	Default value	Description
Document URL column name	`document_url_column_name`	`original_document_url	Document URL column name for processing by OCR.
OCR Type	`ocr_type`	enriched	OCR Type values: Standard and Enriched (prepare output for TOD Manual Task).
S3 bucket name	`s3_bucket_name`	doc-upload	An S3 bucket to store results.
OCR Provider	`ocr_provider`	Abbyy	Type of the OCR provider: Abbyy Google Vision Azure Form Recognition
OCR parameters JSON	`ocr_parameters`	See later	See parameters in the table below.

OCR JSON. Default values

{
    "exportFormat":"xmlForCorrectedImage,xmlWithoutRecognitionVariants",
    "language": "English",
    "correctSkew": true,
    "correctOrientation": true,
    "writeRecognitionVariants": true,
    "invertImage": false,
    "discardColorImage": false,
    "skipPreprocessing": false,
    "useOnlyCustomRegions": false,
    "useDefaultPattern": false,
    "profile": "documentConversion",
    "removeGarbageSize": 0,
    "lowResolutionMode": false,
    "enhanceLocalContrast": false,
    "allowedRegionTypes": null,
    "changeDPI": 0,
    "version": "V_2",
    "storePreprocessedDoc": true,
    "textTypes": ["normal"],
    "timeout": 60
}

OCR parameters

Parameter	Values	Description
`exportFormat`	txt `xml` `xmlWithoutRecognitionVariants` xmlForCorrectedImage pdfSearchable html	Step's export format.
`language`	English German etc	Predefined language. You can also define multiple languages using a comma as a separator: English,German,Polish
`correctSkew`	boolean	The page skew is detected and automatically corrected.
`correctOrientation`	boolean	The page orientation is detected and if differs from normal, it is rotated automatically.
`writeRecognitionVariants`	boolean	Causes the `xml`/`xmlForCorrectedImage` formats to include all variants of character or word, OCR considered as a possible recognition.
`invertImage`	boolean	Inverts image.
`discardColorImage`	boolean	Leaves only black-and-white plane in the prepared image.
`skipPreprocessing`	boolean	Skips preprocessing stage. It increases performance up to 30%.
`useOnlyCustomRegions`	boolean	Skips original analyzing stage and extracts information from custom regions only.
`useDefaultPattern`	boolean	If true, it requires to apply the default pattern from the OCR application bundle.
`profile`	documentConversion	Converts documents into editable formats.
	`textExtraction`	Extracts text from documents.
	`barcodeRecognition`	Extracts barcodes.
`removeGarbageSize`	integer	Removes garbage: excess dots that are smaller than a certain size from the image. Optinal, valid value > 0 and -1 for automatically detect garbage size.
`lowResolutionMode`	boolean	Improves recognition of images with low resolution.
`enhanceLocalContrast`	boolean	Specifies whether the local contrast of the image should be increased.
`allowedRegionTypes`	BT_Table BT_Text BT_Barcode BT_VectorPicture BT_Separator BT_SeparatorGroup BT_Checkmark BT_CheckmarkGroup	Deprecated. Specifies allowed region types for identified blocks classification. NOTE: narrowing down type of regions can break page layout. Do not use it if you’re not sure you need it.
`changeDPI`	integer [50 : 3200] valid range null or 0 for disable	Specifies the new value for the resolution.
`version`	V_2	ABBYY FRE 12
	V_1	ABBYY FRE 11
`storePreprocessedDoc`	boolean	Specifies whether preprocessed documents should be saved into data storage.
`textTypes`	normal typewriter matrix ocrA ocrB e13b	Specifies the type of the text in the document. This parameter can also contain several text types separated with commas, for example 'normal,matrix'. See Text type.
`timeout`	integer	Sets a timeout in seconds for task execution.

Output parameters

OCR Result: document processing result in the JSON format.

Code: ocr_result

Example:

{
    "originalDocument": "https://minio-host/doc-upload/1.pdf",
    "documents": {
        "xmlForCorrectedImage": "https://minio-host/doc-upload/bp-id/task-id/1- xmlForCorrectedImage.xml",
        "xmlWithoutRecognitionVariants": "https://minio-host/doc-upload/bp-id/task-id/1-xmlWithoutRecognitionVariants.xml"
    },
    "pageDetails": "https://minio-host/doc-upload/bp-id/task-id/preprocessed/links.json"
}

Task id: the ID of an OCR task.
- Code: task_id
- Example: 066416ed-20e8-4e96-9df1-7f7e133f1211

Meta Info JSON extended info for the ToD Manual Task.

Code: meta_info_json
Example:

{
    "pages": "https://minio-host/doc-upload/bp-id/task-id/preprocessed/links.json",
    "ocrXmlUrl": "https://minio-host/doc-upload/bp-id/task-id/1-xmlWithoutRecognitionVariants.xml",
    "imageUrl": "https://minio-host/doc-upload/1.pdf"
}

Process time: record's process time in milliseconds.
- Code: _sys_ocr_process_time
- Example: 24053

Page details json example https://minio-host/doc-upload/bp-id/task-id/preprocessed/links.json

[
    {
        "imgUrl": "https://minio-host/doc-upload/bp-id/task-id/preprocessed/1.png",
        "charsUrl": "https://minio-host/doc-upload/bp-id/task-id/preprocessed/1.json",
        "height": 3300,
        "width": 2550,
        "charsCount": 2216
    }
]

Build BP with OCR and ToD Manual Task

To build a Business Process with the OCR and ToD Manual Task, do the following:

Create a Business Process.
Create an OCR Bridge step.

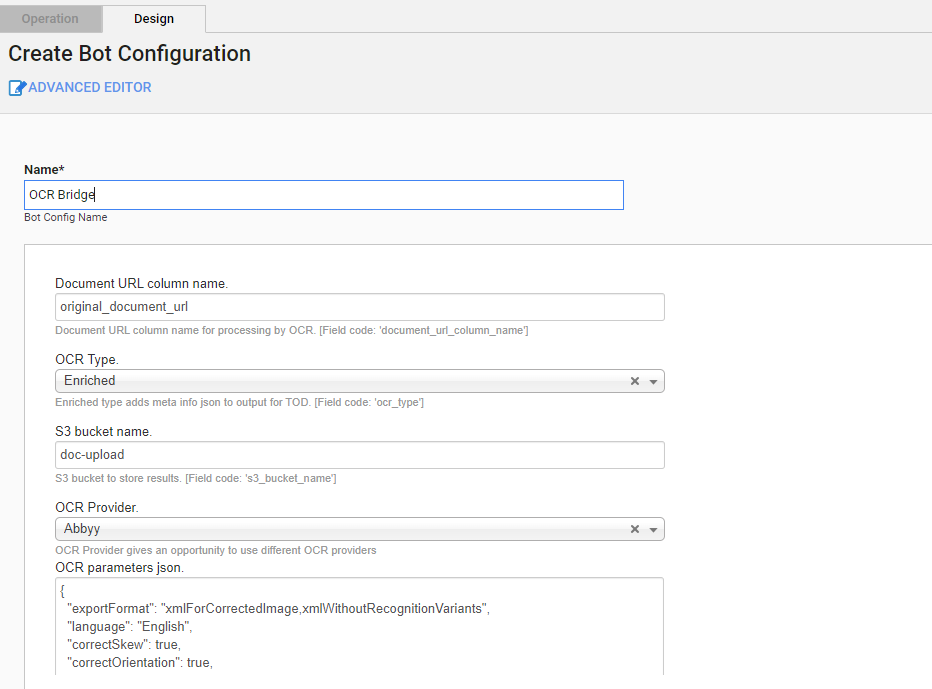

Configure OCR Bridge.

The Business Process is now ready to process incoming documents by OCR and Manual Task.
