Database Connection Encryption

General

The document provides the guidelines on database connection encryption for MySQL, PostgreSQL, MongoDB using SSL certificates.

SSL certificates solve two problems: traffic encryption and verification of trust.

Data transfer encryption includes:

  1. Connect encryption
  2. Authentication methods (classic login and password or client certificates)

Self-signed certificates:

Connection encryption configuration requires generated ssl key pair for the service (MySQL, Postgres, MongoDB). For general flow, independent generation of key pairs for the service need be used.

Authentication method:

Classical login and password authentication through SSL connection.

Document terms

The approach described in this document will be valid for:

  • MySQL 5.7
  • WorkFusion 8.5.x

It’s better to test compatibility of suggested approach, as previous tests were performed on one of the versions above.

Wherever “[ ]” are used - user values need be entered.

Application level encryption of data in transit

PostgreSQL

  1. Generate server.key:

    openssl req -new -text -out server.req

  2. Enter the following values:

    • Country Name (2 letter code) [XX]:US

    • Country Name (2 letter code) [XX]:US

    • State or Province Name (full name) []:New York

    • Locality Name (for example, city) [Default City]:New York

    • Organization Name (for example, company) [Default Company Ltd]:CUSTOMERNAME

    • Organizational Unit Name (for example, section) []:

    • Common Name (for example, your name or your server's hostname) []:ec2-34-206-252-0.compute-1.amazonaws.com

    • Email Address []:

  3. The following extra attributes are to be entered and sent with your certificate request:

    • A challenge password []:

    • An optional company name []:

  4. Remove passphrase from server.key:

    openssl rsa -in privkey.pem -out server.key
rm privkey.pem

  5. Fix permissions:

    chmod og-rwx server.key

  6. Generate a certificate:

    openssl req -x509 -in server.req -text -key server.key -out server.crt

  7. Copy generated certificates to the postgresql data directory:

    mv server.crt /opt/workfusion/apps/pgsql/9.4/data
mv server.key /opt/workfusion/apps/pgsql/9.4
cd .../pgsql/9.4/data/

    As we are using self-signed certificates, we will use same certificate as root.crt:

    cp server.crt root.crt

  8. Enable SSL support in postgresql.conf:

    • Do changes in the host-based access file pg_hba.conf. Allow only SSL for non-local connections:

    • Turn on SSL: ssl on

    hostssl all all 0.0.0.0/0 md5

  9. Apply correct permissions and ownership on server.key:

    chown wfuser server.key
chmod og-rwx server.key

  10. Start server and try to connect without SSL from APP Server:

    psql "sslmode=disable host=dbhost_ip_adress -p"

    Because we disabled non-SSL connections, we are getting the error:

    psql: FATAL: no pg_hba.conf entry for host " dbhost_ip_adress ", user "ec2-user", database "ec2-user", SSL off

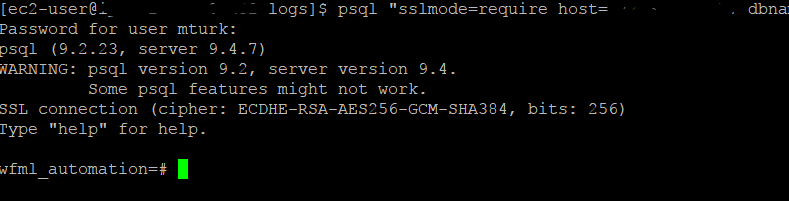

  11. Try to connect with SSL from APP Server:

    psql "sslmode=require host=172.31.29.177 -p dbname=wfml_automation" -U mturk

MySQL

  1. Generate server.key:

    Cd /opt/workfusion/apps/mysql/etc
openssl req -new -text -out server.req

  2. Enter values:

    • Country Name (2 letter code) [XX]:US

    • State or Province Name (full name) []:New York

    • Locality Name (eg, city) [Default City]:New York

    • Organization Name (eg, company) [Default Company Ltd]:CUSTOMERNAME

    • Organizational Unit Name (eg, section) []:

    • Common Name (eg, your name or your server's hostname) []:your_ip

    • Email Address []:

  3. Enter the following extra attributes to be sent with your certificate request:

    • A challenge password []:
    • An optional company name []:

  4. Remove passphrase from server.key:

    openssl rsa -in privkey.pem -out server.key
rm privkey.pem

  5. Fix permissions:

    chmod og-rwx server.key

  6. Generate a certificate:

    openssl req -x509 -in server.req -text -key server.key -out server.crt

  7. As we are using self-signed certificates, we will use the same certificate as root.crt:

    cp server.crt root.crt
chown wfuser server.key

  8. Do the following changes in the MySQL configuration (my.cnf) to enable SSL support.

    my.cnf
[mysqld]
ssl-ca=/opt/workfusion/apps/mysql/etc/root.crt
ssl-cert=/opt/workfusion/apps/mysql/etc/server.crt
ssl-key=/opt/workfusion/apps/mysql/etc/server.key

  9. Restart MySQL.

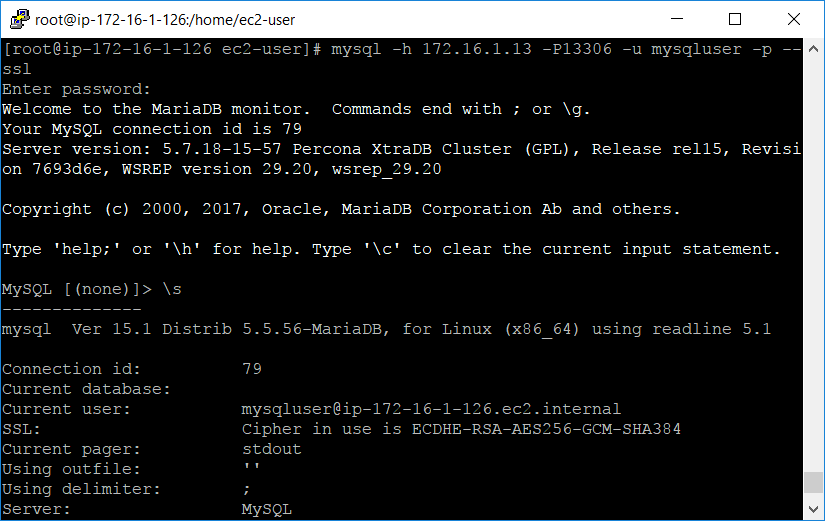

  10. Connect to MySQL with SSL from APP Server:

    mysql -h dbhost_ip_adress -u mysqluser -p --ssl
MySQL [(none)]> status;
SSL: Cipher in use is DHE-RSA-AES256-SHA

  11. MySQL 5.6 does not have a simple way to restrict non-SSL connections on the server side. This can be done in MySQL 5.7 by using the below setting:

    require_secure_transport = yes
[mysqld]
secure-file-priv=""
show_compatibility_56=ON
sql_mode = 'ERROR_FOR_DIVISION_BY_ZERO,NO_AUTO_CREATE_USER,NO_ENGINE_SUBSTITUTION'


require_secure_transport=ON
ssl-ca=/opt/workfusion/apps/mysql/etc/root.crt
ssl-cert=/opt/workfusion/apps/mysql/etc/server.crt
ssl-key=/opt/workfusion/apps/mysql/etc/server.key
datadir=/opt/workfusion/apps/mysql/data
port=13306
socket=/opt/workfusion/apps/mysql/mysql.sock
user=wfuser

  12. For 5.6 version, restrict for every user.

  13. Execute the following command:

    GRANT USAGE ON *.* TO 'username'@'server_ip' REQUIRE SSL

MongoDB

  1. Generate server.key:

    openssl req -new -text -out server.req
cd /opt/workfusion/apps/mongodb/etc/

  2. Enter values:

    • Country Name (2 letter code) [XX]:US

    • State or Province Name (full name) []:New York

    • Locality Name (eg, city) [Default City]:New York

    • Organization Name (eg, company) [Default Company Ltd]:CUSTOMERNAME

    • Organizational Unit Name (eg, section) []:

    • Common Name, for example, your name or your server hostname: http://ec2-34-206-252-0.compute-1.amazonaws.com.

    • Email Address []:

  3. Enter the following 'extra' attributes to be sent with your certificate request:

    • A challenge password []:

    • An optional company name []:

  4. Remove passphrase from server.key:

    openssl rsa -in privkey.pem -out server.key
rm privkey.pem

  5. Fix permissions:

    chmod og-rwx server.key
chown wfuser server.key

  6. Generate a certificate:

    openssl req -x509 -in
server.req -text -key server.key -out server.crt

    As we are using self-signed certificates, we will use the same certificate as root.crt:

    cp server.crt root.crt
MongoDB uses only one file that holds certificate and serverkey


cat server.key server.crt > servermongodb.pem

  7. Do the following changes in the MongoDB configuration (mongod.conf) to enable SSL support:

    /opt/workfusion/apps/mongodb/etc/mongod.conf
sslMode = requireSSL
sslPEMKeyFile = /opt/workfusion/apps/mongodb/etc/servermongodb.pem

  8. If you use the YAML configuration file format:

    net:
ssl:
mode: requireSSL
PEMKeyFile:
/opt/workfusion/apps/mongodb/etc/servermongodb.pem

  9. Restart MongoDB.

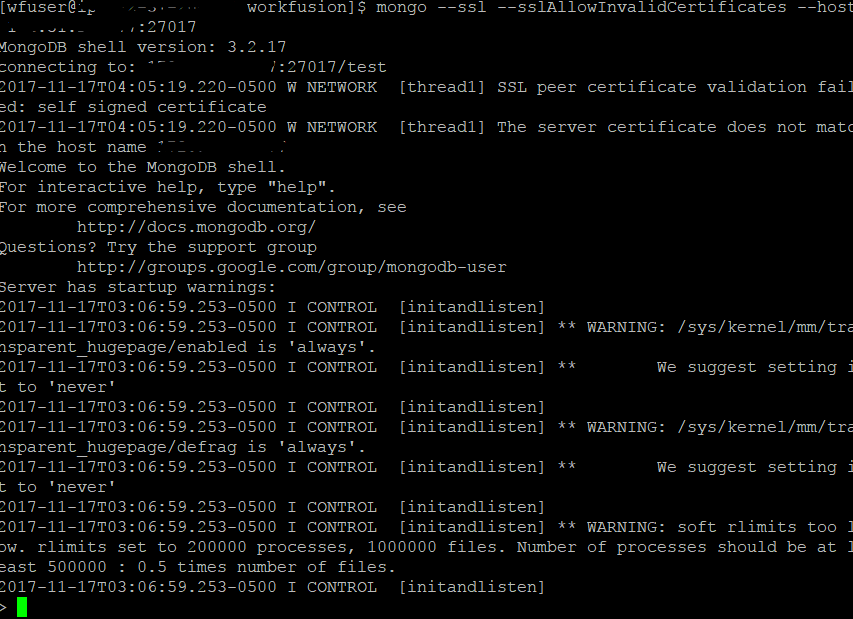

  10. Check that SSL works:

    mongo --ssl --sslAllowInvalidCertificates --host your_ip_adress:27017

WorkFusion settings

  1. Change datasource URL in /opt/workfusion/apps/wfbi/application.properties:

    spring.datasource.url=jdbc:postgresql://hostname:port/wfml_automation?sslmode=require&ssl=true&sslfactory=org.postgresql.ssl.NonValidatingFactory

  2. Change datasource URL in /opt/workfusion/apps/webapps/tomcat/conf/workspace-sandbox.properties.

    dataSource.url=jdbc:postgresql://hostname:port/virtualizer_sandbox?targetServerType=master&sslmode=require&ssl=true&sslfactory=org.postgresql.ssl.NonValidatingFactory

  3. Change datasource URL in /opt/workfusion/apps/webapps/tomcat/conf/workspace.properties:

    dataSource.url=jdbc:postgresql://hostname:port/virtualizer?targetServerType=master&sslmode=require&ssl=true&sslfactory=org.postgresql.ssl.NonValidatingFactory
cd /opt/workfusion/apps/webapps/wf_sec_storage
./loader.sh workfusion review touch config.properties

    Add value in config.properties:

    mturkds.database.url=jdbc:mysql://hostname:port/wfdb?noAccessToProcedureBodies=true&useLegacyDatetimeCode=false&noAccessToProcedureBodies=true&serverTimezone=UTC&rewriteBatchedStatements=true&failOverReadOnly=false&verifyServerCertificate=false&useSSL=true
wf.datastore.database.url=jdbc:postgresql://hostname:port/wf_datastore?targetServerType=master&sslmode=require&ssl=true&sslfactory=org.postgresql.ssl.NonValidatingFactory
tableau.db.url=jdbc:postgresql://hostname:port/wfml_automation?targetServerType=master&sslmode=require&ssl=true&sslfactory=org.postgresql.ssl.NonValidatingFactory

./loader.sh workfusion config.properties

  4. Restart tomcat:

The RPA Manager client fix is as follows:

Copy /opt/workfusion/apps/mongodb/etc/server.crt from DB Server to /opt/workfusion/apps/rpa_manager/ssl on APP Server.

keytool -importcert -trustcacerts -file server.crt -keystore /opt/workfusion/apps/rpa_manager/ssl/KeyStore.jks

Application level encryption of data at rest

PostgreSQL

PostgreSQL have pgcrypto module. The pgcrypto module provides cryptographic functions for PostgreSQL, that developers (or someone who will access to the database) can use to encrypt and decrypt data. It is not a database level encryption, it is data encryption.

Check the mplementation documentation for these functions at the official site.

MySQL

MySQL 5.6 have similar functions but starting from version 5.7 it can encrypt whole tables

See more info here.

In version 5.6, there is no such possibility.

MongoDB

MongoDB support encryption at rest, you just need to generate symmetric key and start mongo DB server with next options:

--enableEncryption
--encryptionKeyFile <path to keyfile>

https://docs.mongodb.com/manual/tutorial/configure-encryption/

Even if it is possible to implement database level encryption, application-level still looks much better.
