Database connection encryption

General

This document provides the guidelines on database connection encryption for MySQL, PostgreSQL, MongoDB using SSL certificates. SSL certificates solve two problems:

Traffic encryption
Verification of trust

The connection encryption configuration requires an SSL key pair for the services: MySQL, PostgreSQL, MongoDB. The authentication method is the classic login and password authentication through an SSL connection.

Document terms

Predefined common variables:

WorkFusion user: the default value is wfuser.
WorkFusion home directory: the default value is /opt/workfusion.

The guide also uses certificates located on the DB server in the /nginx/ssl folder.
User values should be entered whenever you see the [ ] placeholder.

Application level encryption of data in transit

PostgreSQL

To configure the PostgreSQL server, perform the following steps:

SSH to the DB server and switch to <WF_USER>, for instance:
```
sudo su - wfuser
```

Copy certificates to PostgreSQL data directory and make sure the permissions for the files are set to 600.

cp /opt/workfusion/nginx/ssl/db.key /opt/workfusion/postgres/data/server.key
cp /opt/workfusion/nginx/ssl/db.crt /opt/workfusion/postgres/data/server.crt
cp /opt/workfusion/nginx/ssl/ca.crt /opt/workfusion/postgres/data/root.crt


chmod 600 /opt/workfusion/postgres/data/server.key
chmod 600 /opt/workfusion/postgres/data/server.crt
chmod 600 /opt/workfusion/postgres/data/root.crt

Enable SSL support in PostgreSQL config files.
1. Find the string in /opt/workfusion/postgres/data/postgresql.conf.
```
#ssl                       = off
```
Make sure it's uncommented. Remove the ## sign at the beginning of the line and change "off" to "on" as shown below.
```
ssl                       = on
```
1. Find string in /opt/workfusion/postgres/data/pg_hba.conf.
```
host    all             all             0.0.0.0/0                md5
```
1. Replace it with:
```
hostssl    all             all             0.0.0.0/0                md5
```
Restart PostgreSQL
```
wfmanager restart postgresql
```
Modify mysql_server foreign server settings (foreign data wrapper for mysql). Specify $workfusion_analytics_user username and path to root certificate.
```
psql -U analytics -d wf_datastore -c "alter server mysql_server OPTIONS (ssl_ca '/opt/workfusion/postgres/data/root.crt');"
```
"...-U analytics..." - default $workfusion_analytics_user username
Connect without SSL from APP Server.
- SSH to the APP server and switch to <WF_USER>
- Execute the following:
```
psql "sslmode=disable host=[db_hostname]"
```
Because we disabled non-ssl connections, we should get following error:
```
psql: FATAL: no pg_hba.conf entry for host " dbhost_ip_adress ", user "wfuser", database "wfuser", SSL off
```

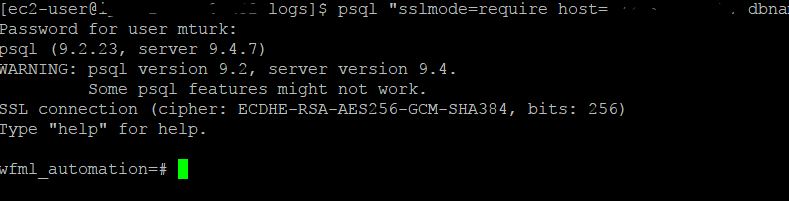

Connect with SSL from APP Server:
```
psql "sslmode=require host=[db_hostname] dbname=wf_datastore" -U [workfusion]
```
where [workfusion] is a workfusion_datastore_user of PostgreSQL DB.

Now, the serverside SSL configuration for postgresql is completed.

MySQL

To configure MySQL server, do as follows:

SSH to DB server and switch to <WF_USER>, e.g.
```
sudo su - wfuser
```

Copy certificates to mysql directory.

cp -r /opt/workfusion/nginx/ssl /opt/workfusion/mysql

Add following strings in the mysql configuration /opt/workfusion/mysql/usr/my.cnf.

[mysqld]
require_secure_transport=ON
ssl-ca=/opt/workfusion/mysql/ssl/ca.crt
ssl-cert=/opt/workfusion/mysql/ssl/db.crt
ssl-key=/opt/workfusion/mysql/ssl/db.key

Restart MySQL.
```
wfmanager restart mysql
```

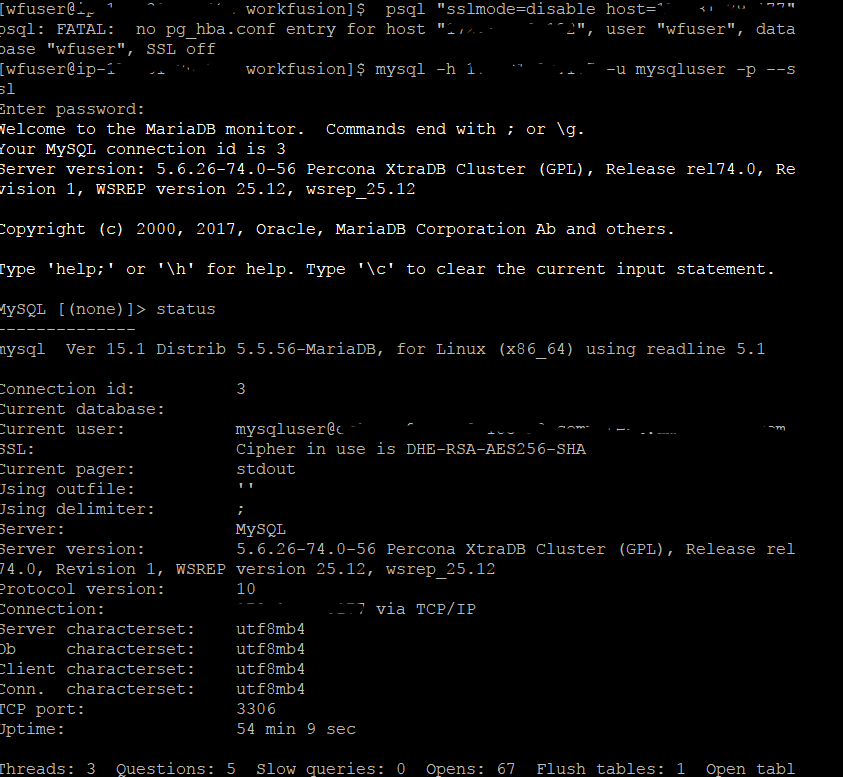

Connect to MySQL with ssl from APP Server

SSH to the APP server and switch to <WF_USER>
Execute the following:

mysql -h [db_hostname] -u [workfusion] -p --ssl
MySQL [(none)]> status;
SSL: Cipher in use is DHE-RSA-AES256-SHA

SSL for MySQL is successfully configured.

MongoDB

Unfortunately, in versions 9.0.x-9.2.x rpa-manager and OCR applications are unable to establish connection with MONGODB via SSL

Do not perform section below until fixed rpa-manager and OCR applications are out Section below describes how to configure mongodb server to use SSL

To configure MongoDB server, perform the following steps:

SSH to DB server and switch to <WF_USER>, e.g.

sudo su - wfuser

MongoDB uses only one file that holds certificate and serverkey:

cd /opt/workfusion/mongodb/etc
cat /opt/workfusion/nginx/ssl/db.key /opt/workfusion/nginx/ssl/db.crt > /opt/workfusion/mongodb/etc/db.pem

Add the following section to MongoDB configuration in file /opt/workfusion/mongodb_db/etc/mongodb.conf to enable ssl support.
```
net:
  ssl:
    mode: requireSSL
    PEMKeyFile: /opt/workfusion/mongodb/etc/db.pem
```
Restart MongoDB.
```
wfmanager restart mongodb
```

Check that ssl works:

SSH to the APP server and switch to <WF_USER>
Execute the following:

mongo --ssl --sslAllowInvalidCertificates --host [db_hostname]:27016

WorkFusion settings

The following steps should be performed on DB server.

Fill in the next variables and execute in shell:

export DB_HOSTNAME=< YOUR_DB_SERVER_HOSTNAME_HERE>
export MYSQL_PORT=<YOUR_MYSQL_PORT_HERE>
export POSTGRESQL_PORT=<YOUR_POSTGRESQL_PORT_HERE>

Create a file with ssl properties that will be uploaded to VAULT with loader.sh.

cd /opt/workfusion/wf-sec-storage/

cat << EOF > /opt/workfusion/wf-sec-storage/config-ssl.properties
mturkds.database.url=jdbc:mysql://$DB_HOSTNAME:$MYSQL_PORT/wfdb?noAccessToProcedureBodies=true&useLegacyDatetimeCode=false&noAccessToProcedureBodies=true&serverTimezone=UTC&rewriteBatchedStatements=true&failOverReadOnly=false&verifyServerCertificate=false&useSSL=true
wf.datastore.database.url=jdbc:postgresql://$DB_HOSTNAME:$POSTGRESQL_PORT/wf_datastore?targetServerType=master&sslmode=require&ssl=true&sslfactory=org.postgresql.ssl.NonValidatingFactory
tableau.db.url=jdbc:postgresql://$DB_HOSTNAME:$POSTGRESQL_PORT/wfml_automation?targetServerType=master&sslmode=require&ssl=true&sslfactory=org.postgresql.ssl.NonValidatingFactory
EOF
./loader.sh workfusion config-ssl.properties

The following steps should be performed on APP server.

Change the datasource URL in /opt/workfusion/wfbi/conf/Catalina/localhost/service-wfbi.xml.

url="jdbc:postgresql://db_hostname:postgresql_port/wfml_automation?targetServerType=master&amp;useSSL=true&amp;sslmode=require&amp;ssl=true"

Change the datasource URL in /opt/workfusion/workspace_sandbox/conf/workspace-sandbox.properties.

dataSource.url=jdbc:postgresql://hostname:port/virtualizer_sandbox?targetServerType=master&sslmode=require&ssl=true

Change the datasource URL in /opt/workfusion/workspace_production/conf/workspace.properties.

dataSource.url=jdbc:postgresql://hostname:port/virtualizer?targetServerType=master&&sslmode=require&ssl=true

Change the datasource URL in /opt/workfusion/sqc/conf/Catalina/localhost/sqc-rest.xml.

url="jdbc:mysql://db_hostname:mysql_port/sqc?useLegacyDatetimeCode=false&amp;serverTimezone=UTC&amp;rewriteBatchedStatements=true&amp;autoReconnect=true&amp;useSSL=true"

Restart Workfusion applications on APP server
```
wfmanager restart all
```

Following steps should be performed on BI server:

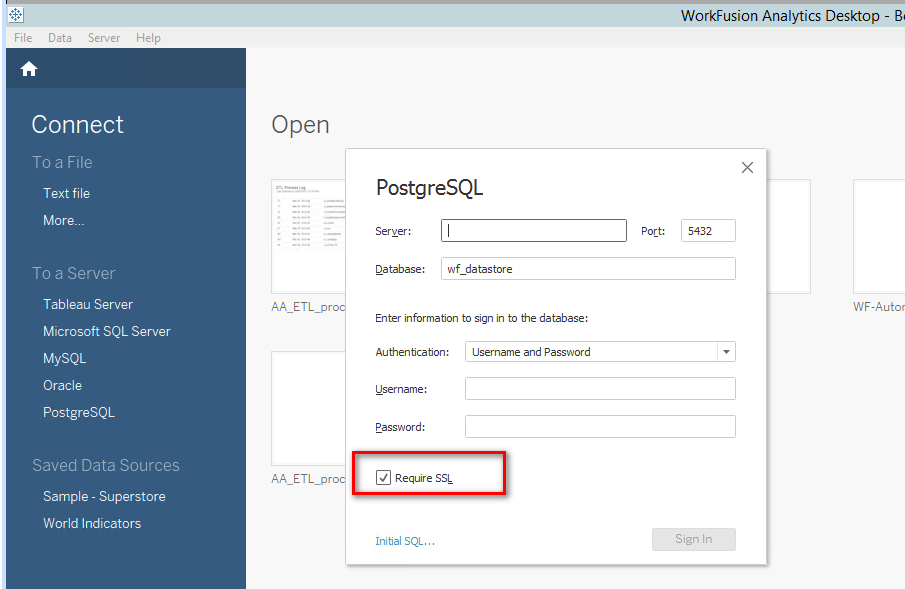

If you are using the Tableau desktop, in the PostreSQL settings, select Require SSL. If you do not use Tableau desktop, this step is optional.
Download a workbook from the Tableau server to the machine with the installed Tableau desktop.
Open the Tableau desktop.
Go to datasources, and then edit the connection for all of them.
Publish workbook on the server.

important

The APM Server can display the MySQL Major Outage alert, if SSL is disabled.

To enable the SSL:

On the DB server, browse to the wfagent/settings directory, and run the following command:

cat mysql.yml | grep -i ssl

Find the following line:

url: "jdbc:mysql://%mysql_hostname%:%mysql_port%/%mysql_db%?characterEncoding=UTF-8&autoReconnect=true&useSSL=true"

Set the value to "true", if it is not already.
Restart the wfagent service:
```
wfmanger restart wfagent
```
