Architecture overview

Download PDF

You can also view the entire Installation section in the PDF format. Click the link to download (20 MB).

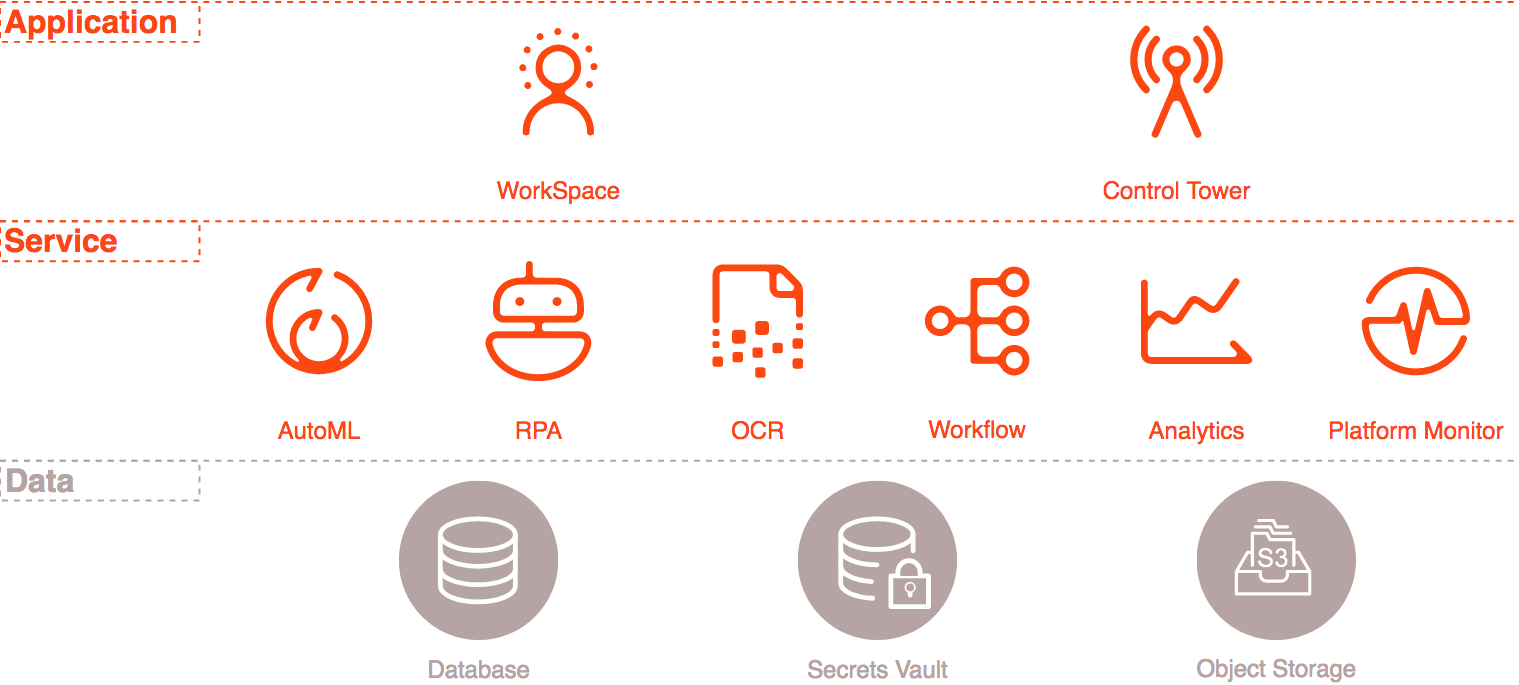

Components Architecture

WorkSpace

Description	WorkSpace is the web application for manual task fulfillment by Subject Matter Experts
Related components	Control Tower, Object Storage
Covered functionality	Manual tasks queue management Manual task fulfillment by Subject Matter Experts Managing users, roles, teams, qualifications

Control Tower

Description	Control Tower is the central managing web application, which orchestrates automation processes and tasks, and provides a user interface for power users, admins and developers. Provides functionality to manage Business Processes, Manual Tasks, AutoML automations, access to Analytics, Platform Monitor, user management system and Secrets Vault.
Related components	WorkSpace, Workflow, RPA, AutoML, OCR, Data Storage
Covered functionality	Automation Processes Management Creation and editing workflows using GUI tools Running and monitoring automations Input/output data handling User/Role Management Manual Tasks Management Workforce Management System-wide configuration

AutoML

Description	AutoML finds the best ML model for a particular target function (expressed in a Manual Task), trains it, validates it, and finally predicts the target’s variables.
Related components	Control Tower, Data Storage
Covered functionality	Searching for a best model within hypermodels space Training, validation of models using data from Manual Tasks Computing predictions for unseen input data Visualizing quality of prediction

RPA

Description	RPA Cluster is a scalable computing environment that executes user scenarios within desktop or web applications. It takes control of the keyboard and mouse pointer to emulate user inputs.
Related components	Control Tower
Covered functionality	Automation of user scenarios within desktop and web applications.

OCR

Description	Optical Character Recognition component of WorkFusion SPA digitizes image-based data into character documents (e.g.: transform PDF file into text one)
Related components	Control Tower, WorkSpace, Data Storage
Covered functionality	OCR processing of scanned documents

Workflow

Description	Workflow Engine executes automation processes in Control Tower. It orchestrates work queues, Machine Learning training data collection, exception handling and quality control.
Related components	Control Tower, RPA, WorkSpace, AutoML
Covered functionality	Automation Process execution according to process definition created in Control Tower. Execution is handled in different computing environments—RPA, WorkSpace, OCR and AutoML.

Analytics

Description	Analytics web application provides comprehensive dashboards and reporting capabilities.
Related components	Control Tower
Covered functionality	Reporting, dashboards

Platform Monitor

Description	Platform Monitor is responsible for the centralized monitoring of SPA platform components and aggregation of logs.
Related components	Control Tower, WorkSpace, RPA, OCR, Analytics
Covered functionality	Monitoring overall platform component health Monitoring hardware utilization and health Alerting on issues Providing API to integrate with third-party application monitoring tools Log aggregation

Database

Description	Database stores business process definitions, runtime and tracking information on their executions—including RPA and Cognitive automations.
Related components	Control Tower, WorkSpace, Analytics
Covered functionality	Reliable storage of the designed automation implementation

Secrets Vault

Description	Secrets Vault is a secured storage destination for sensitive data.
Related components	Control Tower, RPA
Covered functionality	This is mostly related to the solution’s non-functional requirements: Storing authentication data (login/password) for applications involved in RPA and providing secure access to it during business process execution Storing authentication data for WorkFusion SPA inter-component interaction

Object Storage

Description	Object Storage keeps binary file type content, such as OCR results, AutoML models, screenshots and reports generation by automation.
Related components	Workflow, OCR, AutoML
Covered functionality	Reliable storage of OCR results and trained AutoML models.

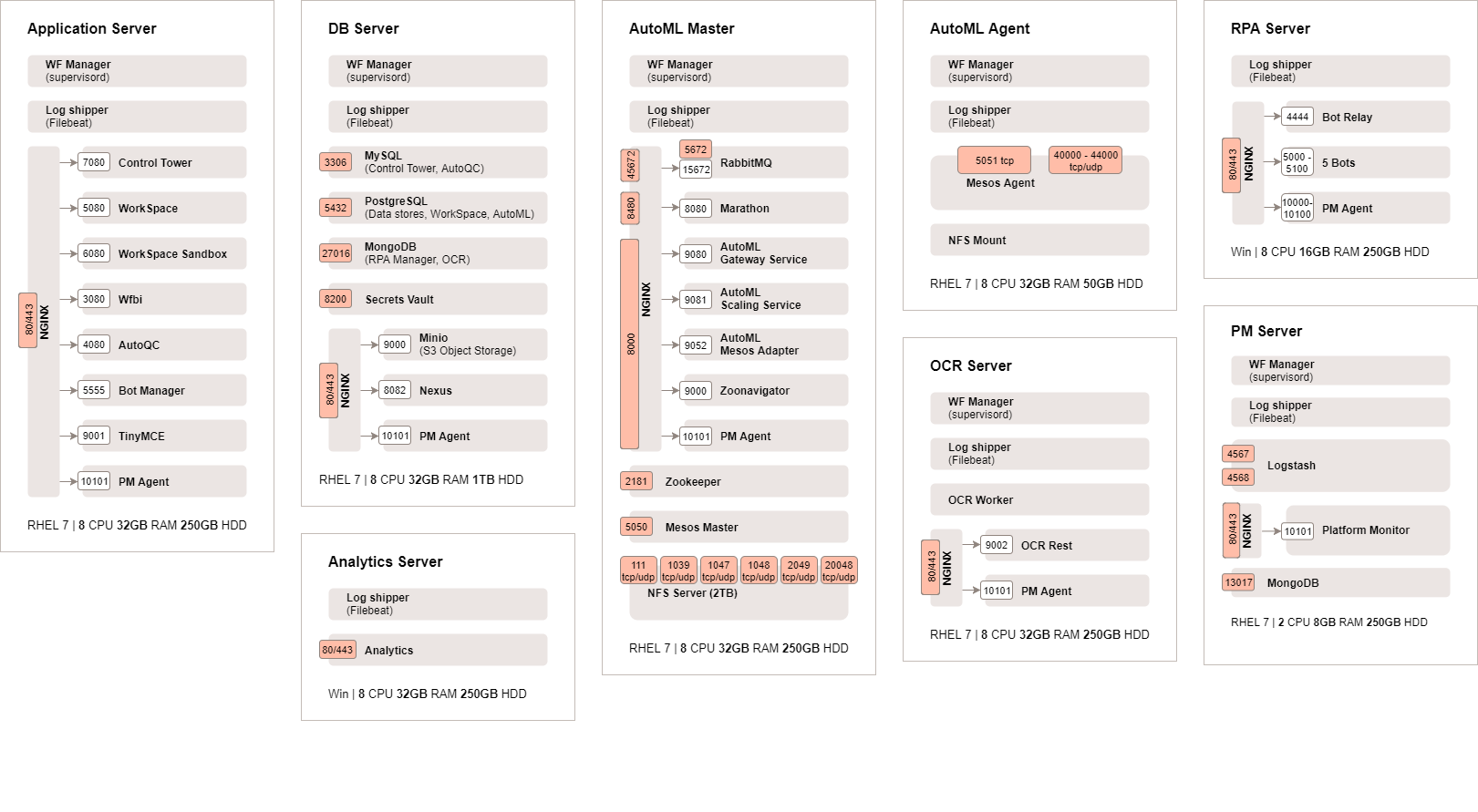

Deployment Architecture
