Cold backup and restore

Important notes

Currently, the backup and restore process cannot be used as a part of the migration process if DNS names are changed. This is due to the fact that the VAULT DB component will contain records with old DNS names from the previous installation.

This backup script can backup and restore only SPA data components.

From SPA 9.0.0 on, TLS certificates, config.yml and secrets.yml can be found in the distr archive in backup directory once the backup has been performed. You can use them in restore process.

important

In SPA 8.5.X, backup scripts were incorporated in the Ansible installer. Since SPA 9.0 backup scripts are a part of the product and located in

<INSTALL_DIR>/tools/cold-backup

General information

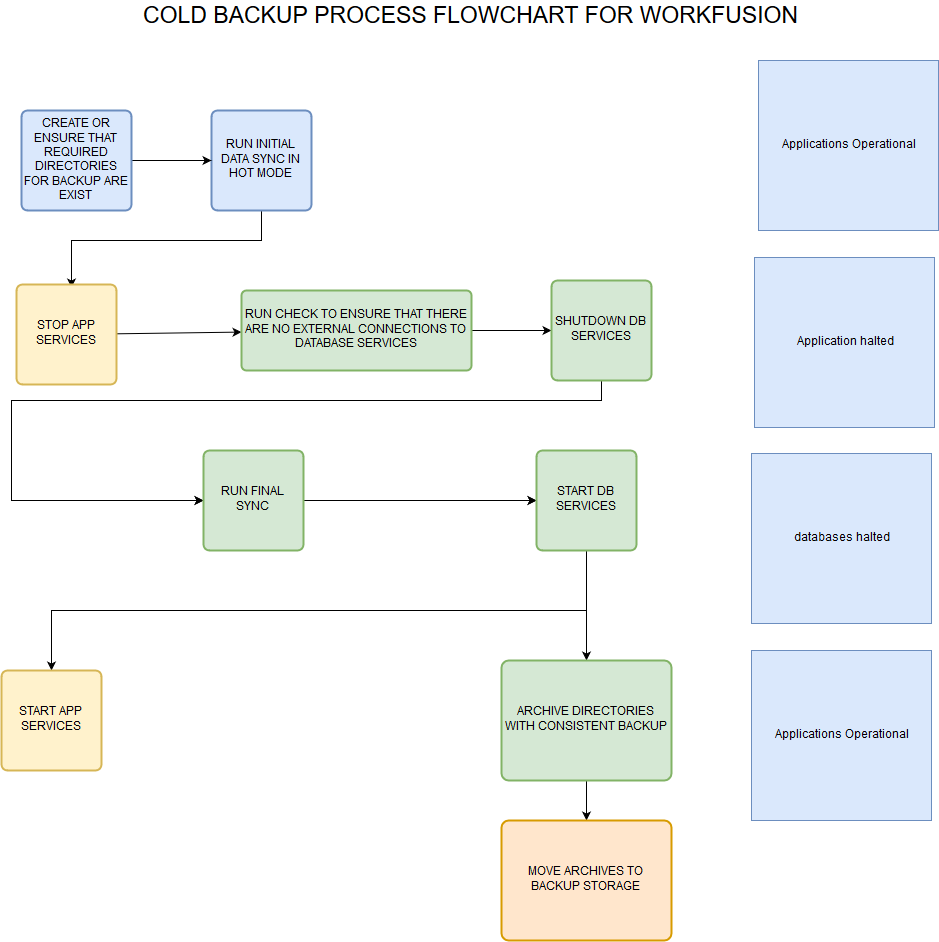

The Ansible installation comes with a script that implements the following cold backup solution design:

Backup script

wf-backup.sh { OPERATION } { COMPONENT } { ROLE }

$ ./wf-backup.sh
Usage:
 ./wf-backup.sh {prepare,backup,restore}
{all,mysql,postgresql,riak,minio,mongodb,vault,nexus,rpa-manager,distr} {apm,db,app} [EXTRA_VARS...]
Examples:
./wf-backup.sh prepare all db
./wf-backup.sh backup all db
./wf-backup.sh restore all db
./wf-backup.sh backup rpa-manager app
./wf-backup.sh restore rpa-manager app
./wf-backup.sh backup mongodb apm
./wf-backup.sh restore mongodb apm

Available procedures

The backup script supports 3 possible operation:

  • Prepare (optional)
    Hot-sync data: It is part of the backup operation, but can be launched separately before the main backup process to achieve minimal downtime.
  • Backup
    All SPA services are turned off, components are archived. Once completed, the services are restarted.
  • Restore
    The script searches for backup archives in the backup directory and performs the restore process.

Components for backup

Depending on the server role (APM, DB, APP), the script supports backup and restoration of the following components:

DB ROLE:

  • MySQL
  • PostgreSQL
  • MiniIO
  • MongoDB
  • Vault
  • Nexus

APM ROLE:

  • MongoDB

APP ROLE:

  • rpa-manager

Variables used in backup script

$ cat secrets.yml

mysql_admin_user : mysql

mysql_admin_pass: mysql

postgresql_admin_user: postgres

$ cat config.yml

install_dir: /opt/workfusion

backup_directory: '{{ install_dir }}/backup'

Backup procedure

DB server

Run prepare (hot-sync step)

$ ./wf-backup.sh prepare all db

The script copies (hot-sync) all database components to {{ backup_directory }}.

Result

$ ls -1 /opt/workfusion/backup/

mongodb_db

mysql

nexus

postgres

riak

rpa-manager

vault

Shutdown APP services

note

This step should be executed not on the DB Server, but run manually on the APP Server.

$ wfmanager stop all

Run main backup step

./wf-backup.sh backup all db

The script checks if there are no external connections to WF databases, shuts WF services down, and performs cold-sync of database component files. After all, the files are archived.

As a result, in your {{ backup directory }}, you will find the archives with backups of the component's content:

$ ls -1 /opt/workfusion/backup/

...

mongodb_db-1516797995.tar.gz

mysql-1516797995.tar.gz

nexus-1516797995.tar.gz

postgres-1516797995.tar.gz

riak-1516797995.tar.gz

vault-1516797995.tar.gz

Move these archives to backup storage

APP Server

Run main backup step

$ ./wf-backup.sh backup all app

Result

$ ls -1 /opt/workfusion/backup/
rpa-manager-1516800559.tar.gz

Move this archive to backup storage

APM Server

Run main backup step

$ ./wf-backup.sh backup all apm

Result

$ ls -1 /opt/workfusion/backup/

mongodb_apm

mongodb_apm-1516865538.tar.gz

Move this archive to backup storage

Restore Procedure

DB server

Run installation first (as root)

$ ./install.sh precheck db && ./install.sh preinstall db
$ su - wfuser
$ ./install.sh install db && ./install.sh check db

Put backup archives with DB components into backup directory

Run restore command.

note

All services on APP Server should be stopped!

./wf-backup.sh restore all db

Verify that services started successfully

$ wfmanager status

APM Server

Run installation first (as root)

$ ./install.sh precheck apm && ./install.sh preinstall apm
$ su - wfuser
$ ./install.sh install apm && ./install.sh check apm

Put backup archives with APM components into backup directory

Run restore command

$ ./wf-backup.sh restore all apm

Verify that services started successfully

$ ./wfmanager status

APP Server

Run installation first (as root)

$ ./install.sh precheck app && ./install.sh preinstall app
$ su - wfuser
$ ./install.sh install app && ./install.sh check app

Put backup archives with APP components into backup directory

Run restore command

$ ./wf-backup.sh restore all app

Verify that services started successfully

$ ./wfmanager status
