Deployment architecture
Platform Monitor for RPA helps in maintaining RPA processes. There are two scenarios for deploying Platform Monitor for managing RPA Infrastructure:
- VDI: 1 RPA Bot per server
- RDP-in-RDP: multiple RPA Bots per server
Primary features:
- Manage RPA processes from the UI: start, stop, restart automatically
- Start Active GUI sessions on Windows servers after reboot
- Automatically restart RPA processes (Bot Relay, Bot) in case of a failure
- Monitor the RPA Server health
note
Application Platform Monitor might not work properly under non-standard deployments.

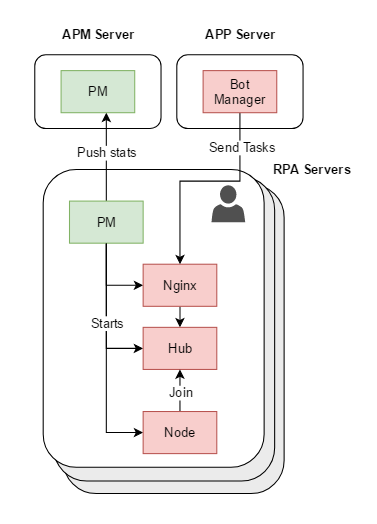

VDI
1 RPA Bot per server
In this approach, each RPA Server has all RPA components in a single active session. No additional RDP connections are created:

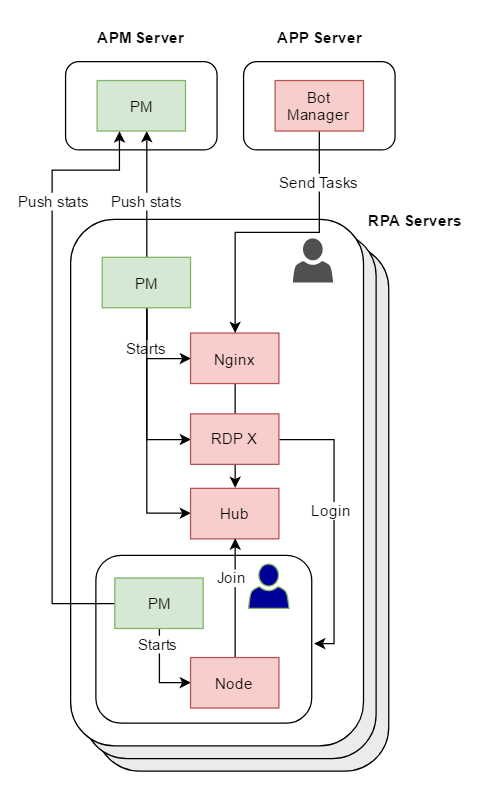

RDP-in-RDP
Multiple RPA Bots per server
In this approach, each RPA Server bootstraps 2 local RDP connections. There is a default limit in Windows Servers: 2 active RDP connections at a time. After tje primary Platform Monitor is started, it will maintain 2 active RDP connections to the same host.
