OCR Windows server installation
Install OCR

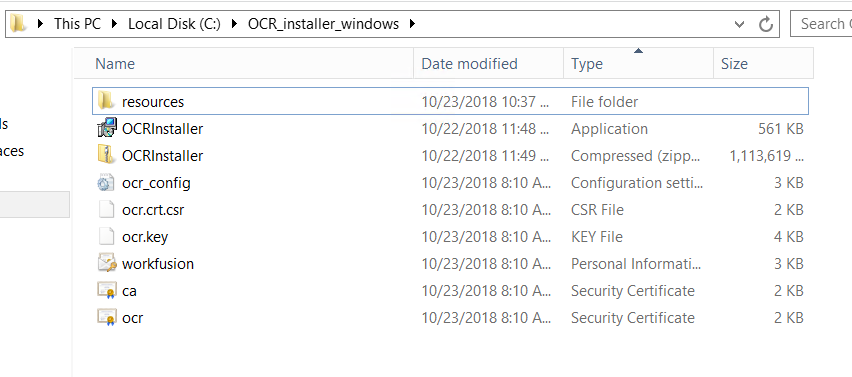

Extract all files from
OCRInstaller-{version}.zipto any folder on your Windows PC.Copy OCR certificates from the APP server on the
/opt/workfusion/ocr-windowspath to the Windows machine to the folder with the extracted OCR installer.

If self-signed certificates are used,

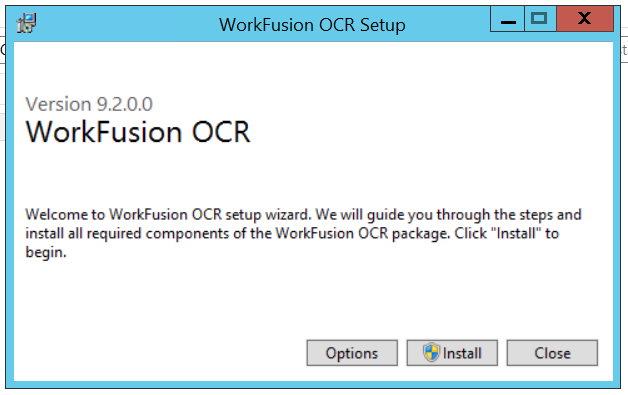

CA.certmust be imported to the Local Machine's Certificate TrustStore into the rusted Root Certificates Authorities section.Launch the OCR Installer.

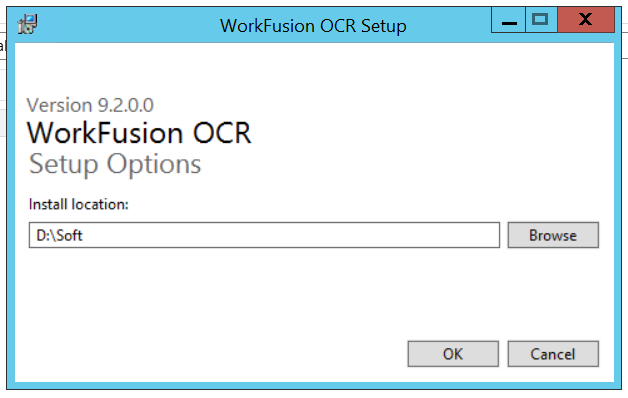

Provide Install location using the Options button and proceed with the installation.

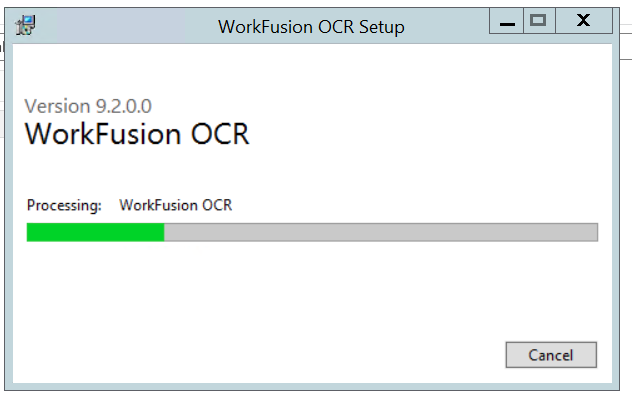

Wait until installation is finished.
Restart all services.
For more details, refer to OCR license.
Configure Nginx on Windows machines
The section describes using of a secure connection between OCR and WorkFusion services.
Skip this step if the setup does not use TLS encryption.

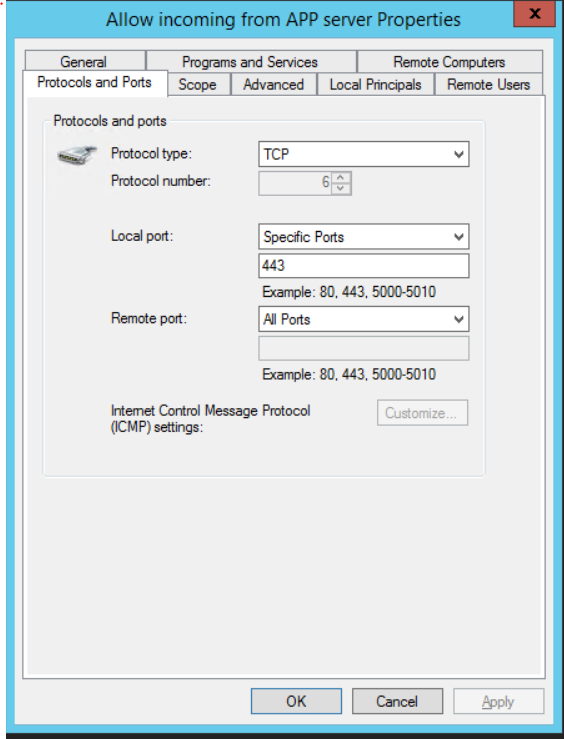

Configure Windows Firewall.
(Create a new rule) Verify ... to allow an inbound secure communication for applications via port 443 (default) on the OCR server for using the SSL connection.
Define the local port 443 to allow the connection:

Scaling OCR
Primary server
Install as per a regular installation guide.
Secondary server
Copy the same installer, certificates, and configuration file as for the primary server.
Correct the OCR server hostnames and
ocr.health.worker.namein theocr_config.inifile.Launch the OCR Installer.
Change
C:/Workfusion/wfagent/settings/environment.ymlto specify a unique agent namespace.environment.yml:environment: agent.ns: ocr_2
