Database connection encryption

This document provides the guidelines on database connection encryption for MySQL, PostgreSQL, MongoDB using SSL certificates. SSL certificates solve two problems:

  • Traffic encryption
  • Verification of trust

The connection encryption configuration requires an SSL key pair for the services: MySQL, PostgreSQL, MongoDB. The authentication method is the classic login and password authentication through an SSL connection.

Terms

Predefined common variables:

  • WorkFusion user: the default value is wfuser.

  • WorkFusion home directory: the default value is /opt/workfusion.

    The guide also uses certificates located on the DB server in the /nginx/ssl folder.

  • User values should be entered whenever you see the [ ] placeholder.

Application-level encryption of data in transit

PostgreSQL

To configure the PostgreSQL server, SSH to the DB server and switch to <WF_USER>, for instance:

sudo su - wfuser

Copy certificates to the PostgreSQL data directory and make sure the permissions for the files are set to 600.

cp /opt/workfusion/nginx/ssl/db.key /opt/workfusion/postgres/data/server.key
cp /opt/workfusion/nginx/ssl/db.crt /opt/workfusion/postgres/data/server.crt
cp /opt/workfusion/nginx/ssl/ca.crt /opt/workfusion/postgres/data/root.crt


chmod 600 /opt/workfusion/postgres/data/server.key
chmod 600 /opt/workfusion/postgres/data/server.crt
chmod 600 /opt/workfusion/postgres/data/root.crt

Enable SSL support in PostgreSQL config files:

  • Find the string in /opt/workfusion/postgres/data/postgresql.conf:

    #ssl                       = off

    Make sure it's un-commented. If needed, remove the ## sign at the beginning of the line. Then, change off to on, as shown below:

    ssl                       = on

  • Find the string in /opt/workfusion/postgres/data/pg_hba.conf:

    host    all             all             0.0.0.0/0                md5

  • Replace it with the following:

    hostssl    all             all             0.0.0.0/0                md5

  • Restart PostgreSQL

    wfmanager restart postgresql

Modify the mysql_server foreign server settings (foreign data wrapper for MySQL). Specify the $workfusion_analytics_user username and path to the root certificate.

psql -U analytics -d wf_datastore -c "alter server mysql_server OPTIONS (ssl_ca '/opt/workfusion/postgres/data/root.crt');"

...-U analytics... is the default $workfusion_analytics_user username.

Try to connect without SSL from the APP Server:

  1. SSH to the APP server and switch to <WF_USER>.

  2. Execute the following:

    psql "sslmode=disable host=[db_hostname]"

Because non-SLL connections are disabled, you should get the following error:

psql: FATAL: no pg_hba.conf entry for host " dbhost_ip_adress ", user "wfuser", database "wfuser", SSL off

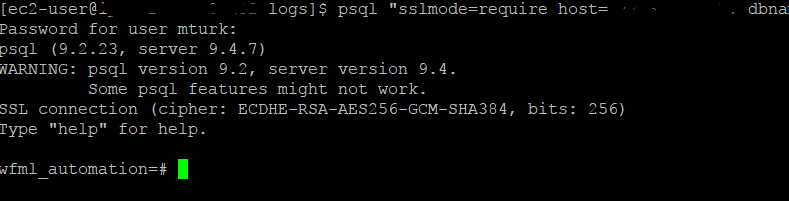

Try to connect with SSL from the APP Server:

psql "sslmode=require host=[db_hostname] dbname=wf_datastore" -U [workfusion]

where [workfusion] is the workfusion_datastore_user of the PostgreSQL DB.

It’s ok now. The server-side SSL configuration for PostgeSQL is completed.

MySQL

MySQL server configuration

SSH to the DB server and switch to <WF_USER>, for instance:

sudo su - wfuser

Copy certificates to the mysql directory:

cp -r /opt/workfusion/nginx/ssl /opt/workfusion/mysql

Add the following strings in the MySQL configuration at /opt/workfusion/mysql/usr/my.cnf.

[mysqld]
require_secure_transport=ON
ssl-ca=/opt/workfusion/mysql/ssl/ca.crt
ssl-cert=/opt/workfusion/mysql/ssl/db.crt
ssl-key=/opt/workfusion/mysql/ssl/db.key

Restart MySQL

wfmanager restart mysql

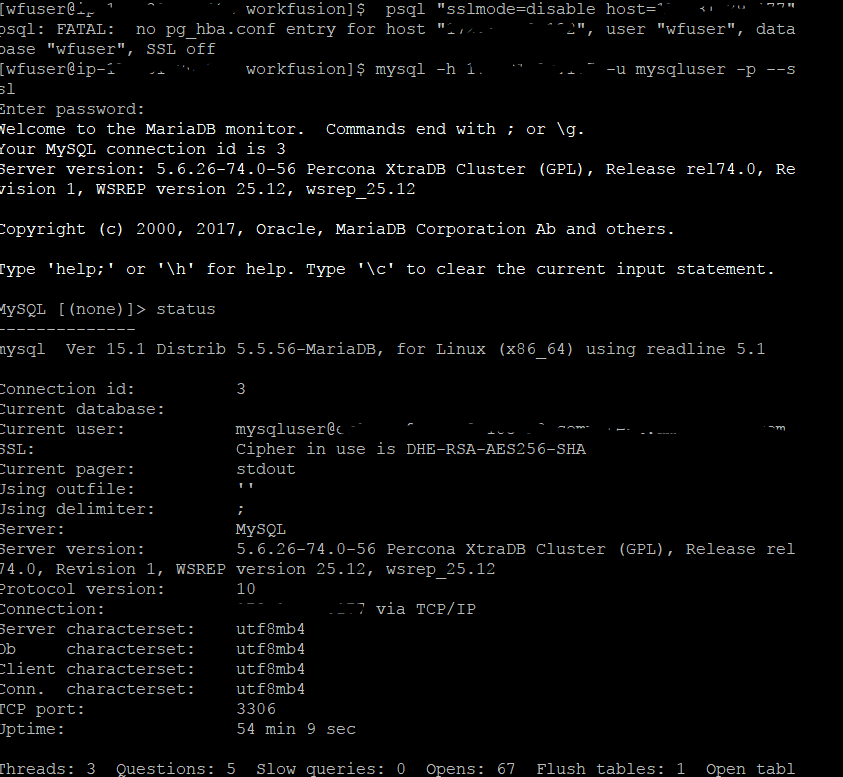

Connect to MySQL with SSL from the APP Server:

  • SSH to the APP server and switch to <WF_USER>.
  • Execute the following:
mysql -h [db_hostname] -u [workfusion] -p --ssl
MySQL [(none)]> status;
SSL: Cipher in use is DHE-RSA-AES256-SHA

As we can see, SSL for MySQL was successfully configured.

MongoDB

Unfortunately, in 9.0.x-9.2.x versions, the rpa-manager and OCR applications are unable to establish a connection with MongoDB via SSL.

note

Do not perform the steps below until fixed rpa-manager and OCR applications are out.

To configure the MongoBD server to use SSL, follow the steps:

  1. SSH to DB server and switch to <WF_USER>, for instance:

    sudo su - wfuser

    MongoDB uses only one file that holds a certificate and server key.

    cd /opt/workfusion/mongodb/etc
cat /opt/workfusion/nginx/ssl/db.key /opt/workfusion/nginx/ssl/db.crt > /opt/workfusion/mongodb/etc/db.pem

  2. Add the following section to the MongoDB configuration in /opt/workfusion/mongodb_db/etc/mongodb.conf to enable SSL support:

    net:
  ssl:
    mode: requireSSL
    PEMKeyFile: /opt/workfusion/mongodb/etc/db.pem

  3. Restart MongoDB:

    wfmanager restart mongodb

  4. Check that SSL works:

    1. SSH to the APP server and switch to <WF_USER>.

    2. Execute the following:

      mongo --ssl --sslAllowInvalidCertificates --host [db_hostname]:27016

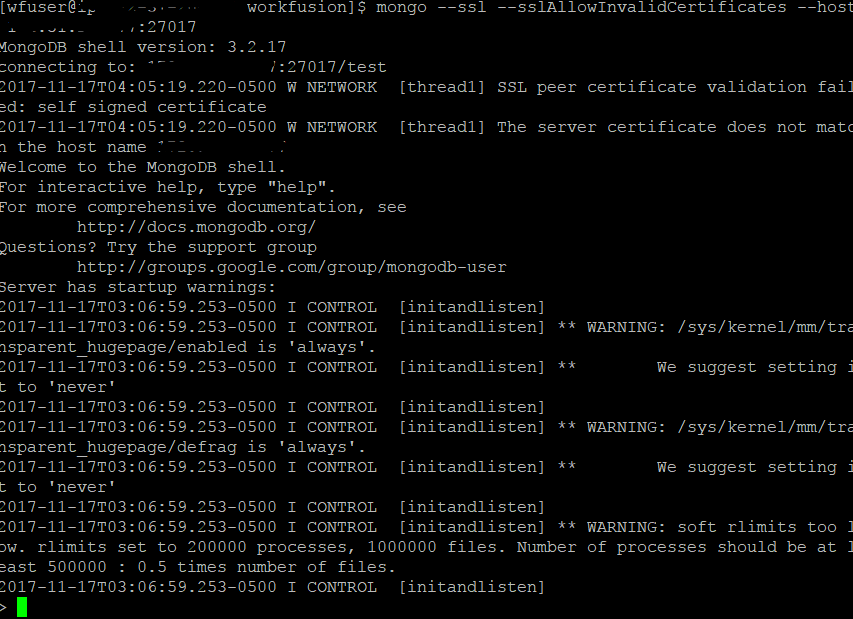

    You should see the following result:

WorkFusion settings

On the DB server, fill in the following variables and execute in shell:

export DB_HOSTNAME=< YOUR_DB_SERVER_HOSTNAME_HERE>
export MYSQL_PORT=<YOUR_MYSQL_PORT_HERE>
export POSTGRESQL_PORT=<YOUR_POSTGRESQL_PORT_HERE>

The following commands create a file with SSL properties, and the file is uploaded to the VAULT with loader.sh:

cd /opt/workfusion/wf-sec-storage/

cat << EOF > /opt/workfusion/wf-sec-storage/config-ssl.properties
mturkds.database.url=jdbc:mysql://$DB_HOSTNAME:$MYSQL_PORT/wfdb?noAccessToProcedureBodies=true&useLegacyDatetimeCode=false&noAccessToProcedureBodies=true&serverTimezone=UTC&rewriteBatchedStatements=true&failOverReadOnly=false&verifyServerCertificate=false&useSSL=true
wf.datastore.database.url=jdbc:postgresql://$DB_HOSTNAME:$POSTGRESQL_PORT/wf_datastore?targetServerType=master&sslmode=require&ssl=true&sslfactory=org.postgresql.ssl.NonValidatingFactory
tableau.db.url=jdbc:postgresql://$DB_HOSTNAME:$POSTGRESQL_PORT/wfml_automation?targetServerType=master&sslmode=require&ssl=true&sslfactory=org.postgresql.ssl.NonValidatingFactory
EOF
./loader.sh workfusion config-ssl.properties

On the APP server, do the following:

  • Change the data source URL in /opt/workfusion/wfbi/conf/Catalina/localhost/service-wfbi.xml.

    url="jdbc:postgresql://db_hostname:postgresql_port/wfml_automation?targetServerType=master&amp;useSSL=true&amp;sslmode=require&amp;ssl=true"

  • Change the data source URL in /opt/workfusion/workspace_sandbox/conf/workspace-sandbox.properties.

    dataSource.url=jdbc:postgresql://hostname:port/virtualizer_sandbox?targetServerType=master&sslmode=require&ssl=true

  • Change the data source URL in /opt/workfusion/workspace_production/conf/workspace.properties.

    dataSource.url=jdbc:postgresql://hostname:port/virtualizer?targetServerType=master&&sslmode=require&ssl=true

  • Change the data source URL in /opt/workfusion/sqc/conf/Catalina/localhost/sqc-rest.xml.

    url="jdbc:mysql://db_hostname:mysql_port/sqc?useLegacyDatetimeCode=false&amp;serverTimezone=UTC&amp;rewriteBatchedStatements=true&amp;autoReconnect=true&amp;useSSL=true"

  • Restart WorkFusion applications on the APP server:

    wfmanager restart all
note

The APM Server can display the MySQL Major Outage alert, if SSL is disabled.

To enable SSL:

  1. On the DB server, browse to the wfagent/settings directory and run the following command:

    cat mysql.yml | grep -i ssl

    Find the following line:

    url: "jdbc:mysql://%mysql_hostname%:%mysql_port%/%mysql_db%?characterEncoding=UTF-8&autoReconnect=true&useSSL=true"

  2. Set the value to true if it is not set yet.

  3. Restart the wfagent service:

    wfmanger restart wfagent
