Review PDF content

The article contains instructions on customizing legacy Manual Task designs via Code Editor to enable the PDF content review.

Use case: you need to review the content of a PDF file and fill some fields in a Manual Task.

To review PDF files out of the box, perform the following steps:

1. Create a Manual Task.

2. Go to the Design tab and select Code Editor.

3. Find the following part of the code:

   <div class="place">
        <@answers question=question/>
   </div>

4. Replace it with the following code:

   <div class="place">
      <div>
           <object data="${question.data.pdf_link?replace('http://','https://')}" width="100%" height="400" type="application/pdf">
               <embed src="${question.data.pdf_link?replace('http://','https://')}" type="application/pdf" />
           </object>
      </div>
      <div>
           <@answers question=question/>
      </div>
   </div>

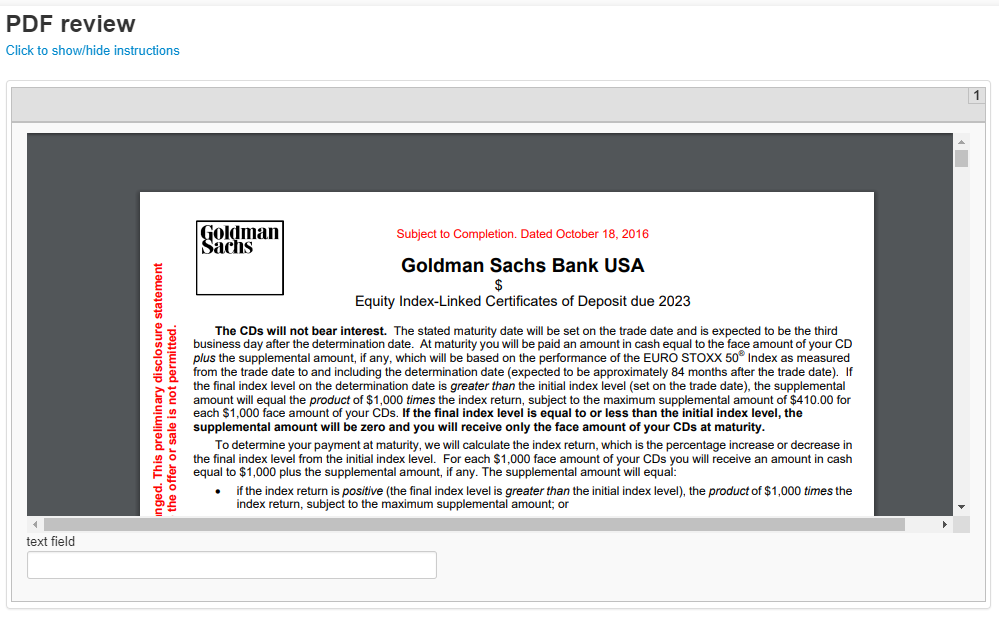

   The expected result (example) looks as follows.



The PDF viewer itself is as follows:

<object data="${question.data.pdf_link?replace('http://','https://')}" width="100%" height="400" type="application/pdf">
    <embed src="${question.data.pdf_link?replace('http://','https://')}" type="application/pdf" />
</object>

You can also use an iframe instead of object and embed.

<iframe src="${question.data.pdf_link?replace('http://','https://')}" width="100%" height="800"></iframe>

It uses the pdf_link input field. You can also change its width and height, but remember that it only works for PDF files.
