Version: 10.2.8

Define allowed Data Store queries

By default, WorkFusion security blocks all Data Store (DS) API calls from Manual Tasks, except Allowed Data Store Queries. Therefore, if you develop a custom Manual Task that uses DS API calls from JavaScript, you must create such allowed queries.

Create Allowed Data Store Query​

To create an Allowed DS Query, follow the steps below:

  1. Open the Manual Task that uses DS API calls and navigate the Design tab.

  2. Switch the Code Editor mode.

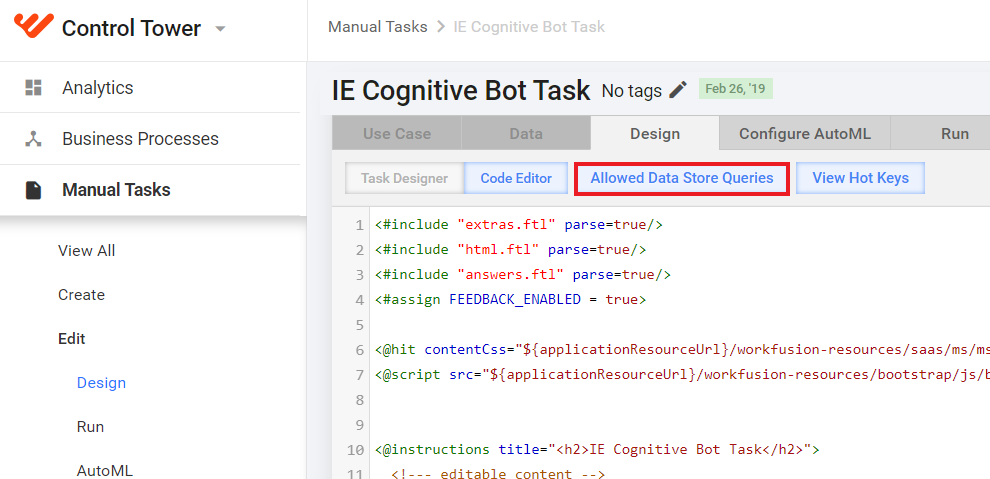

  3. Click the Allowed Data Store Queries button.

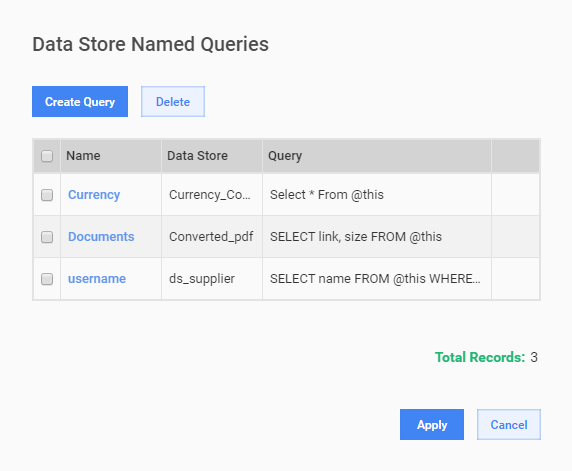

    A grid with DS Queries appears on the screen:

  4. Click the Create Query button or click an existing query name.

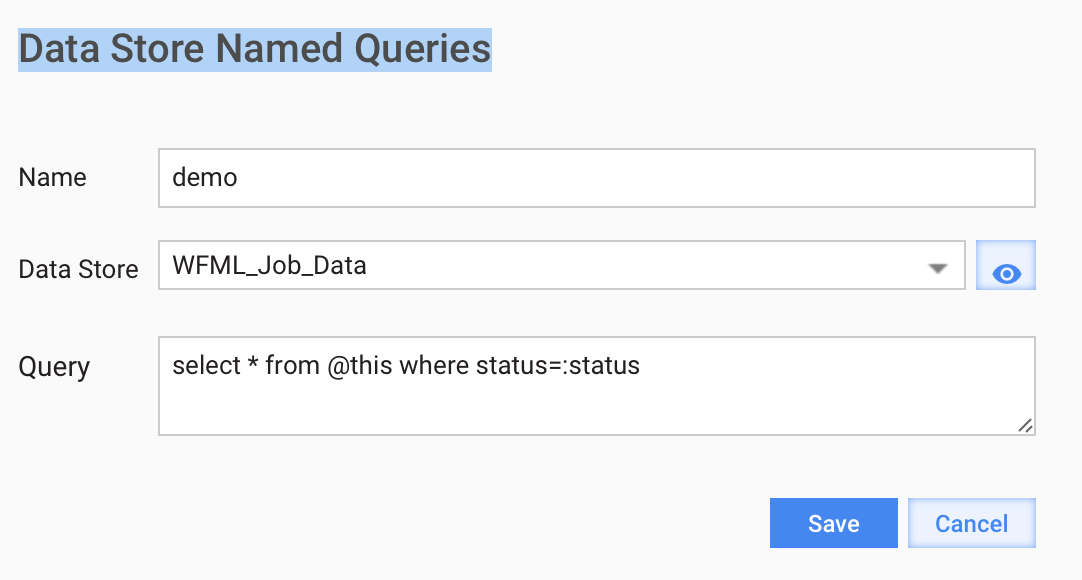

  5. In the displayed popup, add parameters for your DS Query:

    1. Enter a unique Name.
    2. Select an existing Data Store. You can click the eye icon to open the selected DS in a new browser tab.
    3. Enter a valid Query.
    4. Click the Save button.

Allowed queries do not have to return anything. However, you can use OUTPUT to return data. Below is a query example:

INSERT INTO @this (ID, document)
OUTPUT Inserted.ID
VALUES (:id, : document);

Use Allowed DS Query in Manual Task code​

The Data Store API call has the following URL pattern:

/workfusion/public/v2/datastores/executeNamedQuery?queryName=demo&nativeId=hitId&parameters={status:"COMPLETED"}

Where:

  • queryName is the name of your Allowed DS Query.

  • nativeId is hitId of the task.

  • parameters is a JSON representation of an object containing dynamic query parameters.

To allow using DS queries, add the following JavaScript code snippet at the bottom of your Manual Task code:

<script type="text/javascript">
    var hitId= $("input[name=hitId]").val();
    $.ajax({
        dataType: "json",
        type: "get",
        url: "/workfusion/public/v2/datastores/executeNamedQuery",
        data: {
            queryName: 'demo',
            nativeId: hitId,
            parameters: JSON.stringify({
                status: "COMPLETED",
            })
        },
        success: function (resp) { console.log(resp); },
        error: function (resp) { console.log("error", resp); }
    })
</script>

You can access the result of the AJAX request only using one of the following methods:

  • Task Preview > External URL: the link appears for the tasks that are not in the Draft state, meaning they should already be run.
  • In Workspace, when you accepted the respective task.
troubleshooting

For troubleshooting tips, refer to the following support guides:
