Find out number of Elasticsearch nodes

To find out the number of Elasticsearch nodes, follow the steps below:

  1. Log in to Kibana and go to Dev Tools. On the navigation panel on the left, click the following icon:

  2. In the Console window, replace the existing query with the following command:

    GET _cat/nodes?v&h=id,port,v,m,r
  3. Click the button to send a request:

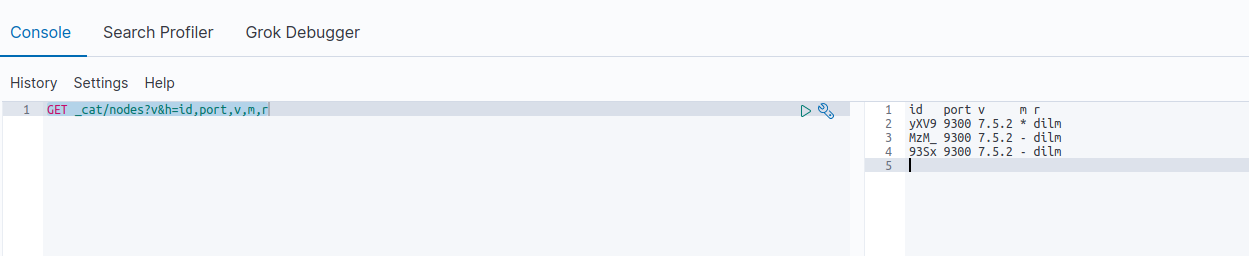

  4. Copy the response from the command. It should look like in the example below, except that the exact output and number of lines can differ.

    Sample output:

    id   port v     m r
    yXV9 9300 7.5.2 * dilm
    MzM_ 9300 7.5.2 - dilm
    93Sx 9300 7.5.2 - dilm
