Convert Bot Config to ETL Form

Bot Form (ETL) is a special Bot Config type intended for flexible re-using by defining all initial parameters (variables) through a UI form, not through direct code editing.

The feature allows including Bot Configs into BPs and setting their initial parameters and input and output data without editing the code.

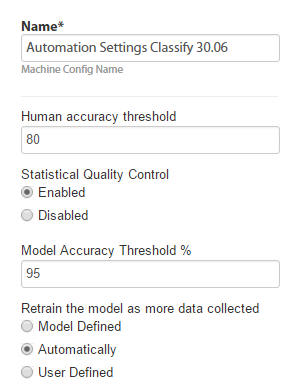

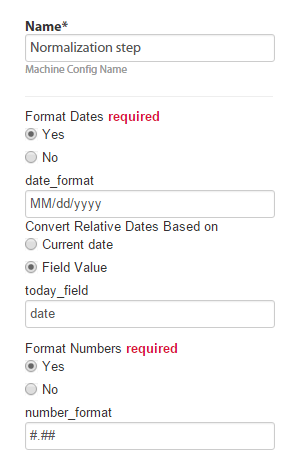

Sample Form 1	Sample Form 2

The goal of the topic is to convert a simple Bot config to a user-friendly ETL form. The ETL Form code is as follows:

<?xml version="1.0" encoding="UTF-8"?>
<config>
   <var-def name ="amount">
       <#noparse>
         <template>${{{input_column_name}}}</template>
       </#noparse>
   </var-def>

   <var-def name ="output">
       <template>Pass</template>
   </var-def>
   <case>
     <#noparse>
       <if condition="${Integer.valueOf(amount.toString()) >= {{amount_limit}}}">
       <var-def name ="output">
           <template>Fail</template>
       </var-def>
       </if>
     </#noparse>
   </case>
   <export include-original-data="true">
     <single-column name="{{result_column_name}}" value="${output}"/>
   </export>
</config>

A Bot Configuration has the Input column, the If statement, and the Output column.

The form can define:

• input column name: {{input_column_name}}
• limit for <if> condition: {{amount_limit}}
• output column name: {{result_column_name}}

In the above case, specify the input column that contains number, specify the value of 100, and the result output column name.

Convert basic Bot Configuration to Form

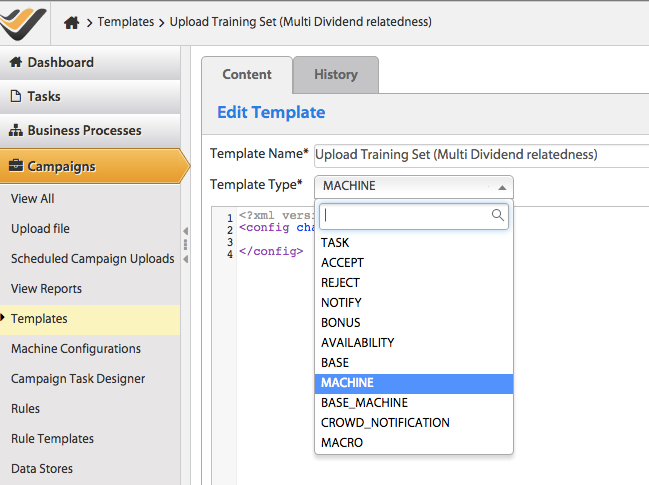

1. Create a template: Use your existing Bot configuration code to go to Campaigns > Templates and create a new template with the Bot code. Select the Template Type = BASE_MACHINE.



2. To create a Use Case, go to System Settings > Use cases:

   1. Select Template and Name.

   2. Specify Type as ETL.

   3. Go to Advanced Mode > Add Answers:

      • Input Column Name: input_column_name
      • Condition: amount_limit
      • Output Column Name: result_column_name

   4. Edit the code for all three values to go from, for example, ${input_column_name} to:

      • {{input_column_name}} to get a column name.
      • ${{{input_column_name}}} to get the value of this column, not its name.

   5. Save the ETL config. Use the <#noparse> directive to fix a validation error in the <if> condition. For more information, see here.

3. Add a Bot Task to BP.

Form examples

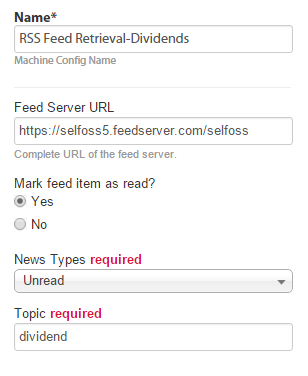

RSS feed retrieval

Expand to learn more

<?xml version="1.0" encoding="UTF-8"?>
<config>

    <var-def name="selfossUrl">
      <template>{{selfossurl}}</template>
    </var-def>



    <var-def name="mark_as_read_var">
      <template>{{mark_as_read}}</template>
    </var-def>

     <script><![CDATA[
        Map uniqueMap = new HashMap();
        List feedIds = new ArrayList();
    ]]>
    </script>



    <while condition="true" index="idx" maxloops="40">
        <var-def name="offset">
            <script return="offset_result">
                <![CDATA[
                offset_result = (Integer.parseInt(idx.getWrappedObject()) - 1) * 200;
                ]]>
            </script>
        </var-def>

        <var-def name="itemsUrl">
          <template>${selfossUrl}/items?items=200&amp;offset=${offset}&amp;
type={{type}}&amp;topic={{topic}}&amp;tag={{topic}}</template>
        </var-def>

        <var-def name="itemsJson">
            <http url="${itemsUrl}" cookie-policy="browser" method="GET"/>
        </var-def>

        <script><![CDATA[
            org.json.JSONArray jsonArr = new org.json.JSONArray(itemsJson.toString());
            int jsonArrLength = jsonArr.length();
            for (int i=0; i<jsonArrLength; i++) {
                org.json.JSONObject jsonItem = jsonArr.getJSONObject(i);
                String jsonItemContent = jsonItem.get("content");
                String jsonItemSourceTitle = jsonItem.get("sourcetitle");
                String jsonItemLink = jsonItem.get("link");
                String jsonItemDateTime = jsonItem.get("datetime");
                String jsonItemUid = jsonItem.get("uid");
                String jsonTitle = jsonItem.get("title");
                String itemId = jsonItem.get("id") != null ? jsonItem.get("id").toString(): "unknown" ;
                Map exportItem = new HashMap();
                exportItem.put("newsLink", jsonItemLink);
                exportItem.put("sourceTitle", jsonItemSourceTitle);
                exportItem.put("dateTime", jsonItemDateTime);
                exportItem.put("feedUid", jsonItemUid);
                exportItem.put("title", jsonTitle);
                exportItem.put("feed_id", itemId);
                uniqueMap.put(jsonItemContent, exportItem);
                feedIds.add(itemId);
            }
        ]]></script>

    </while>

    <var-def name="itemIds">
        <script return="result">
            <![CDATA[
            result = feedIds;
            ]]>
        </script>
    </var-def>

    <case>
      <if condition="${'${' + 'mark_as_read_var.toBoolean()' + '}'}">
          <loop item="itemId">
            <list>
              <var name="itemIds"/>
            </list>
            <body>
              <empty>
                <var-def name="markResult">
                  <http url="${selfossUrl}/mark/${itemId}" cookie-policy="browser" method="POST"/>
                </var-def>
              </empty>
            </body>
          </loop>
      </if>
    </case>



    <script><![CDATA[
      List exportItems = new ArrayList(uniqueMap.values());
   ]]></script>



    <export include-original-data="false">
      <multi-column list="${exportItems}">
        <put-to-column-getter name="source" property="sourceTitle"/>
        <put-to-column-getter name="feed_uid" property="feedUid"/>
        <put-to-column-getter name="feed_link" property="newsLink"/>
        <put-to-column-getter name="date_time" property="dateTime"/>
        <put-to-column-getter name="feed_title" property="title"/>
        <put-to-column-getter name="feed_id" property="feed_id"/>
      </multi-column>
    </export>

</config>

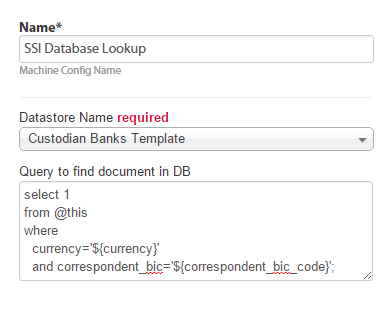

SSI database lookup

Expand to learn more

<?xml version="1.0" encoding="UTF-8"?>
<config charset="UTF-8">
  <var-def name="db_name">{{db_name}}</var-def>

  <var-def name="custodian_bank_swift"><template>${custodian_bank_swift}</template></var-def>
  <var-def name="custodian_bank_name"><template>${custodian_bank_name}</template></var-def>
  <var-def name="currency"><template>${currency}</template></var-def>
  <var-def name="correspondent_bic"><template>${correspondent_bic}</template></var-def>
  <var-def name="ssi_exists"><template>false</template></var-def>


  <var-def name="ssi_document">
    <datastore name="Custodian Banks Template">
      {{check_query}}
    </datastore>
  </var-def>
  <var-def name="ssi_exists">
    <script return="result">
             <![CDATA[
               if(ssi_document.toList().isEmpty())
                 result = false;
               else
                 result = true;
             ]]>
    </script>
  </var-def>
  <var-def name="jobUUID">
    <script return="uuid">
      <![CDATA[java.util.UUID uuid = java.util.UUID.randomUUID();]]>
    </script>
  </var-def>

  <export include-original-data="true">
    <single-column name="ssi_exists" value="${ssi_exists}"/>
    <single-column name="job_uuid" value="${jobUUID}"/>
  </export>

</config>

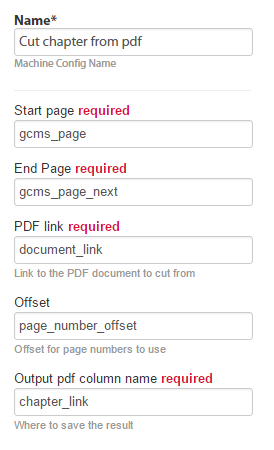

Cut chapter from PDF (split PDF)

Expand to learn more

<?xml version="1.0" encoding="UTF-8"?>
<config>

  <var-def name='toc_start'><template>${{{start_page}}}</template></var-def>
    <var-def name='toc_end'><template>${{{end_page}}}</template></var-def>
    <var-def name='document_link'><template>${{{pdf_document_link}}}</template></var-def>
  <var-def name='offset'><template>${{{offset}}}</template></var-def>

    <script><![CDATA[
            import org.apache.pdfbox.pdmodel.*;
            import org.apache.pdfbox.util.PageExtractor;

            java.net.URL url = new java.net.URL(document_link.toString());
            org.apache.pdfbox.pdmodel.PDDocument document = org.apache.pdfbox.pdmodel.PDDocument.load(url);
            ByteArrayOutputStream output = new ByteArrayOutputStream();
            PDDocument newDocument = new PDDocument();

            int currentPage = 1;

  int offsetInt = offset.toString().isEmpty() ? 0 : offset.toInt();

            for (PDPage page : document.getDocumentCatalog().getAllPages()) {
                if ((toc_start.toString().isEmpty() || currentPage >= toc_start.toInt() - offsetInt) && (toc_end.toString().isEmpty() || currentPage <= toc_end.toInt() - offsetInt)) {
                    newDocument.addPage(page);
                }
                currentPage++;
            }
            newDocument.save(output);
            newDocument.close();
            Object docUuid = java.util.UUID.randomUUID();
        ]]>
  </script>

        <var-def name="cuttedDoc">
            <s3 bucket='temp_bucket'>
                <s3-put-public path='TR/OCR/split/${docUuid}.pdf' content-type="application/pdf" content-disposition="inline">
                    <script return="output.toByteArray()"/>
                </s3-put-public>
            </s3>
        </var-def>

        <export include-original-data='true'>
          <single-column name="{{output_column_name}}" value="${cuttedDoc}" />
        </export>

</config>

Skip escaping

Expand to learn more

<?xml version="1.0" encoding="UTF-8"?>
<config charset="UTF-8">
    <var-def name="message">
        <script return="result">
            String result = org.apache.commons.lang3.StringEscapeUtils.unescapeJava("{{text}}");
        </script>
    </var-def>
    <export include-original-data="true">
        <single-column name="message" value="${message}" />
    </export>
</config>
