LDAP and AD integration

Overview

LDAP or Lightweight Directory Access Protocol is an open, vendor-neutral, industry standard application protocol for accessing and maintaining distributed directory information services over an IP network.

Directory services play an important role in developing intranet and Internet applications by allowing the sharing of information about users, systems, networks, services, and applications throughout the network. As examples, directory services may provide any organized set of records, often with a hierarchical structure, such as a corporate email directory. Similarly, a telephone directory is a list of subscribers with an address and a phone number.

AD or Active Directory is a directory service that Microsoft developed for Windows domain networks. It is included in most Windows Server operating systems as a set of processes and services. Initially, Active Directory was only in charge of centralized domain management. Starting with Windows Server 2008, however, Active Directory became an umbrella title for a broad range of directory-based identity-related services.

WorkFusion Control Tower and WorkSpace can provide security (authentication and authorization) through LDAP and AD integration. Authentication is based on Spring Security standard provider.

Control Tower configuration

By default, Control Tower provides local user, group, and role management. You can enable LDAP and AD integration by setting the following parameters in:

• <TOMCAT_HOME>/conf/workfusion.properties:

  # ldap properties
  ldap.enabled=true
  # to activate LDAP with WF roles switch this property to true. No groups from LDAP will be used.
  #Properties ldap.group.base and ldap.group.filter will be ignored
  ldap.internal.authorization.enabled=false

  # container of corporate user database used for authentication
  # support several base directories pipe separated <baseDN1>|<baseDN2>|...
  ldap.user.base=ou=People,dc=somecompanydomain,dc=com

  # container of corporate user groups used for authorization
  # support several base directories pipe separated <baseDN1>|<baseDN2>|...
  ldap.group.base=ou=Groups,dc=somecompanydomain,dc=com

  # user filter for search, optional, alternative = (uid={0})
  ldap.user.filter=(sAMAccountName={0})

  # group filter for search, optional, alternative = (memberUid={1})
  ldap.group.filter=(member={0})


• Secure properties:

  # ldap server url
  ldap.server.url=ldaps://{host}:{port}

  # system user cridentials
  ldap.bind.dn=<User distinguished name>
  ldap.bind.password=<User password>


External authorization

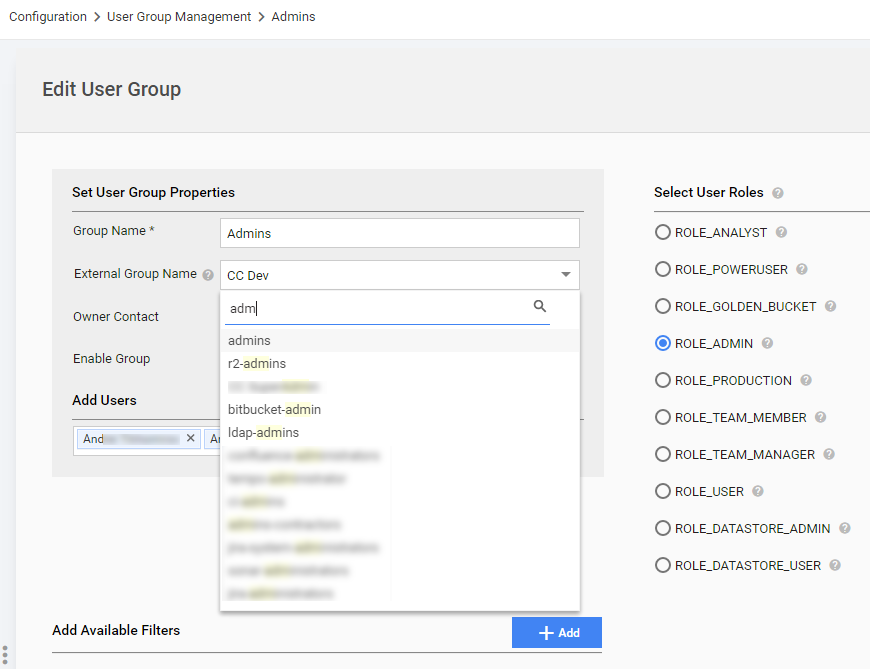

User groups are mapped in Control Tower when creating or editing a User Group:

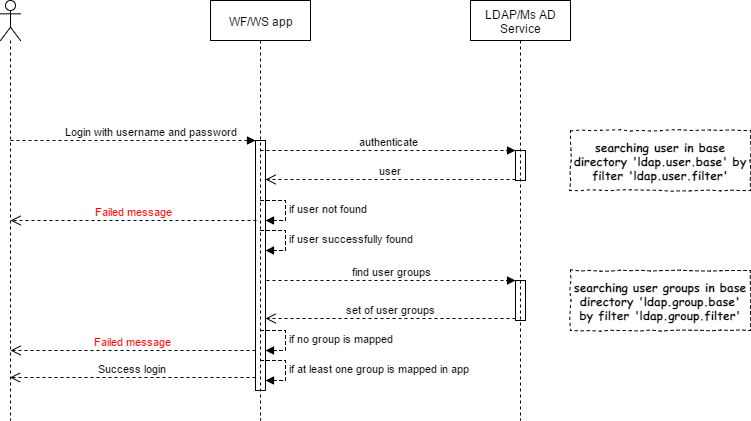

• After a successful login, a user is created or updated with data fetched from LDAP and AD.

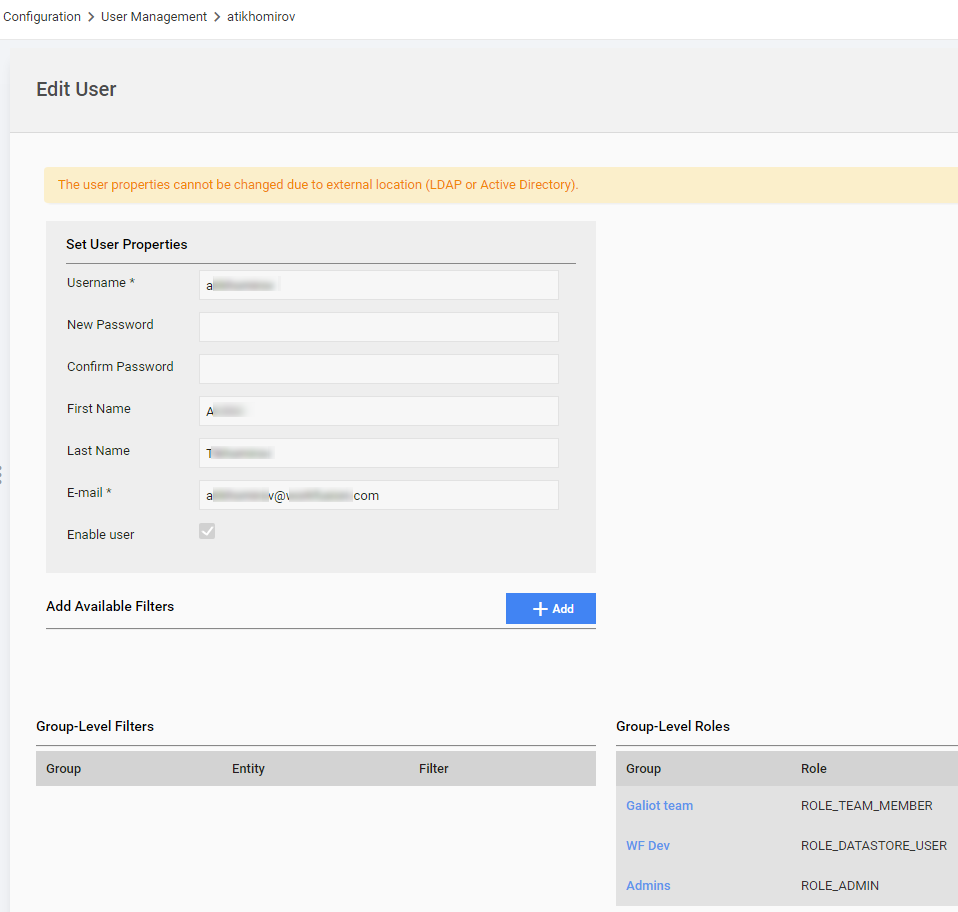

• The user properties cannot be changed in Control Tower, if the LDAP configuration is enabled, only available filters can be added. The direct role selection is unavailable too.

• A user cannot be created, deleted, and disabled in Control Tower. The Create, Delete and Disable buttons are unavailable, if LDAP is enabled.
• System Preferences > User Settings: the Account Details and Change Password sections are disabled too.

Internal authorization

To enable internal authorization, set property ldap.internal.authorization.enabled to true.

Common assumptions are as follows:

• If LDAP authentication is passed successfully, a user is checked for existence in Control Tower, and Control Tower Roles are applied to the user, if such user exists. Otherwise, unable to login.

• User Properties cannot be changed in Control Tower, if LDAP Internal configuration is enabled. You can only edit roles and enable or disable the user.

• User can be created, deleted, and disabled in Control Tower. The Create, Delete and Disable buttons on the User Management page are available, if LDAP with internal authorization is enabled.

• System Preferences > User Settings: the Account Details and Change Password sections are disabled too.

• The following properties are not used, if LDAP with internal authorization is enabled:

  • ldap.group.base
  • ldap.group.filter

Example

This is an example to give an overview of LDAP and AD integration.

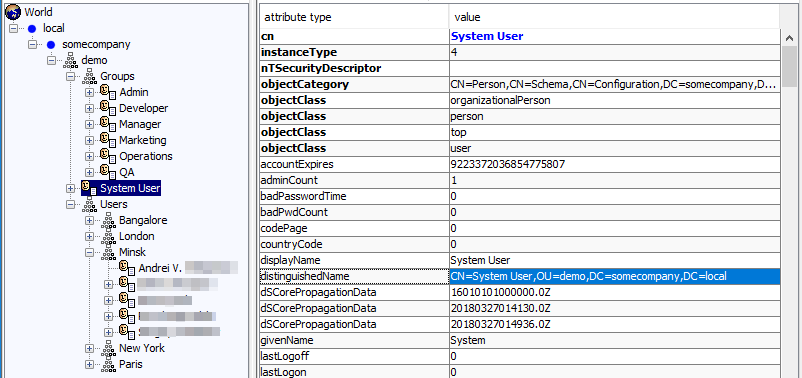

1. At first, we should have distinqueshedName and password of the system user to initialize the connection properties. It can be any user with priviliges to read the directory tree and the object attributes.



   ldap.bind.dn=CN=System User,OU=demo,DC=somecompany,DC=local
   ldap.bind.password=********


2. Configure the base directories for users and groups.

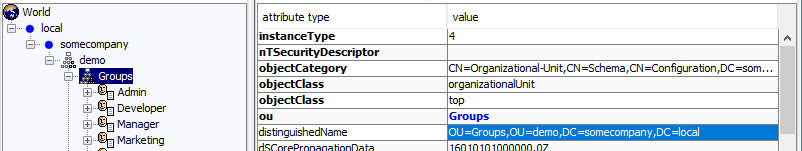

   ldap.group.base=OU=Groups,OU=demo,DC=somecompany,DC=local

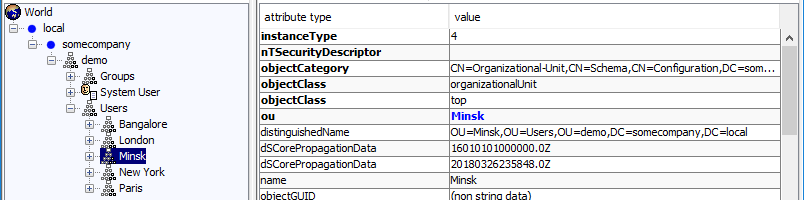

   ldap.user.base=OU=Minsk,OU=Users,OU=demo,DC=somecompany,DC=local


   It supports multi values with pipe separator for users and groups.

   Example:

   ldap.user.base=OU=Minsk,OU=Users,OU=demo,DC=somecompany,DC=local|OU=New York,OU=Users,OU=demo,DC=somecompany,DC=local


   When the base directories are configured properly, it can help reducing time for searching users or groups.
   ldap.group.base is a base directory for loading user's groups during login and a list of groups for the External Group Name mapping on the Edit User Group page.

3. Configure a user filter:

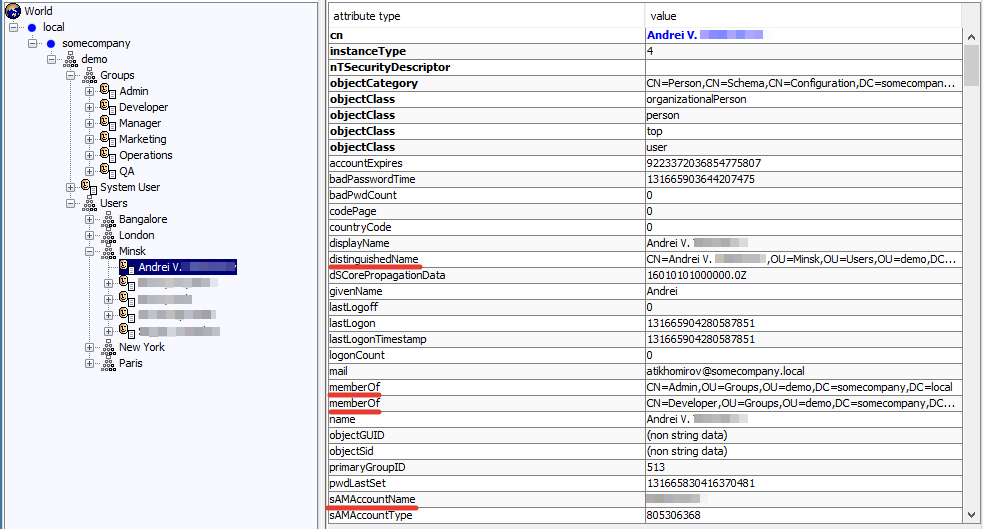

   Usually, a username attribute for Microsoft Active Directory is sAMAccountName. In this case ldap.user.filter=(sAMAccountName={0}). For example, if we are going to use the email for login, so the filter looks as ldap.user.filter=(mail={0}). Keep in mind, that a user filter must return a unique result, otherwise it is configured incorrectly.

4. Configure a group filter:

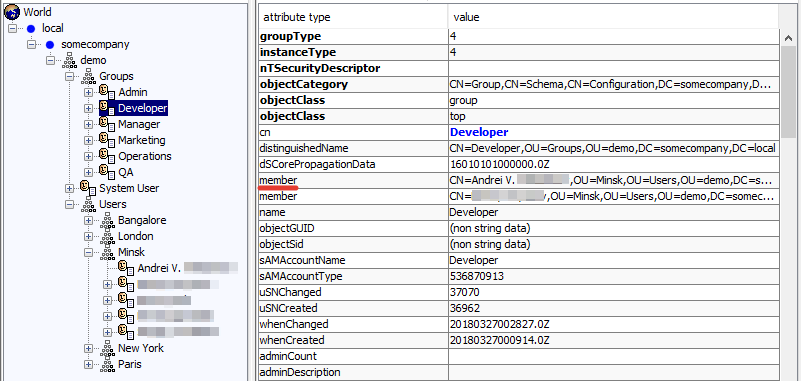

   ldap.group.filter=(member={0}). In this case {0} parameter is distinqueshedName of the logging in user. For example, an alternative filter is ldap.group.filter=(memberUid={1}). In this case, {1} parameter is username of the logging in user.

WorkSpace configuration

By default, WorkSpace provides local user or role management. LDAP and AD integration can be enabled by setting the following parameters:

• in <TOMCAT_HOME>/conf/workspace.properties (or workspace-sandbox.properties):

  # ldap properties
  ldap.enabled=true

  # activate internal authorization if swithed to true with ldap.enabled
  ldap.internal.authorization.enabled=false

  # Comma separated group names from LDAP for mapping to worker users
  ldap.worker.groups=CC Dev,Galiot,CC Ops

  # Comma separated group of roles from LDAP which are mapped to the WorkSpace Requester role
  ldap.requester.groups=CC Admin

  # Name of license that is set to requester if new requester is created
  ldap.requester.license=license_name

  # container of corporate user database used for authentication
  # support several base directories pipe separated <baseDN1>|<baseDN2>|...
  ldap.user.base=ou=People,dc=crowdcomputingsystems,dc=com

  # container of corporate user groups used for authorization
  # support several base directories pipe separated <baseDN1>|<baseDN2>|...
  ldap.group.base=ou=Groups,dc=crowdcomputingsystems,dc=com

  # user filter for search, optional, alternative= (uid={0})
  ldap.user.filter=(sAMAccountName={0})

  # group filter for search, optional, alternative = (memberUid={1})
  ldap.group.filter=(member={0})

  # optional block
  ldap.user.attribute.email=mail
  ldap.user.attribute.firstName=givenname
  ldap.user.attribute.lastName=sn
  ldap.user.attribute.country=country


  The user group mapping is configured via ldap.worker.groups.

• Secure properties:

  ws.secure.ldap.server.url=ldaps://{host}:{port}
  # system user cridentials
  ws.secure.ldap.bind.dn=<User distinguished name>
  ws.secure.ldap.bind.password=<User password>


External authorization

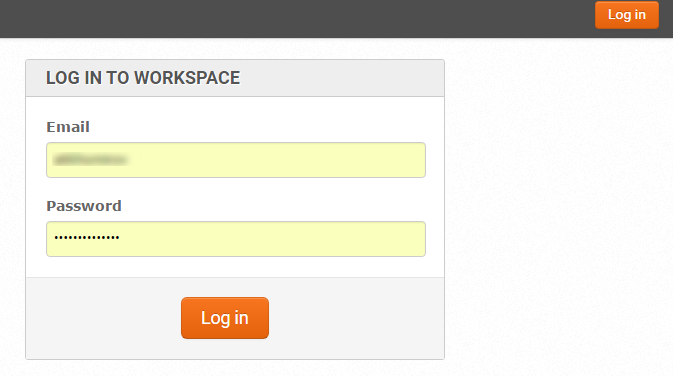

After a successful login, a user is created or updated with data fetched from LDAP and AD.

The Register and Forgot password functionality is unavailable, if LDAP and AD is integrated.

Internal authorization

To enable internal authorization, set property ldap.internal.authorization.enabled to true.

Common assumptions are as follows:

• If LDAP authentication is passed successfully, a user is checked for existence in WorkSpace, and WorkSpace Roles are applied to the user, if such user exists. Otherwise, unable to log in.
• User Properties cannot be changed in WorkSpace, if LDAP Internal configuration is enabled. You can only enable or disable the user.
• User can be created, deleted, and disabled in WorkSpace. The Create, Delete, and Disable buttons on the Workers and Requesters pages are available for requesters.
• The following properties are not used, if LDAP with internal authorization is enabled:
  • ldap.group.base
  • ldap.group.filter
