RPA Server Upgrade

Upgrade under Windows

  1. Back up the current installation. Copy RPA folder (C:\RPA) to C:\RPA_old.

  2. Uninstall RPA using the respective item from Programs and Features in Control Panel.

  3. Install RPA as described in RPA Server Installation.

  4. If hub.json and nodeX.json in C:\RPA\rpa-grid\ have been modified in the previous installation for any particular purposes, replace the newly created files with those from the backup, for example, C:\RPA_old\rpa-grid\.

Upgrade under Linux

  1. Run the following file to stop RPA Manager:

    $INSTALL_DIR/apps/rpa-manager/stop.sh

  2. Replace the RPA Manager file (rpa-manager-server-$version.war) in the RPA Manager folder ($INSTALL_DIR/apps/rpa-manager/) with the new one.

  3. Run the following file to start RPA Manager:

    $INSTALL_DIR/apps/rpa-manager/start.sh

RPA Package Selenium 3 Upgrade

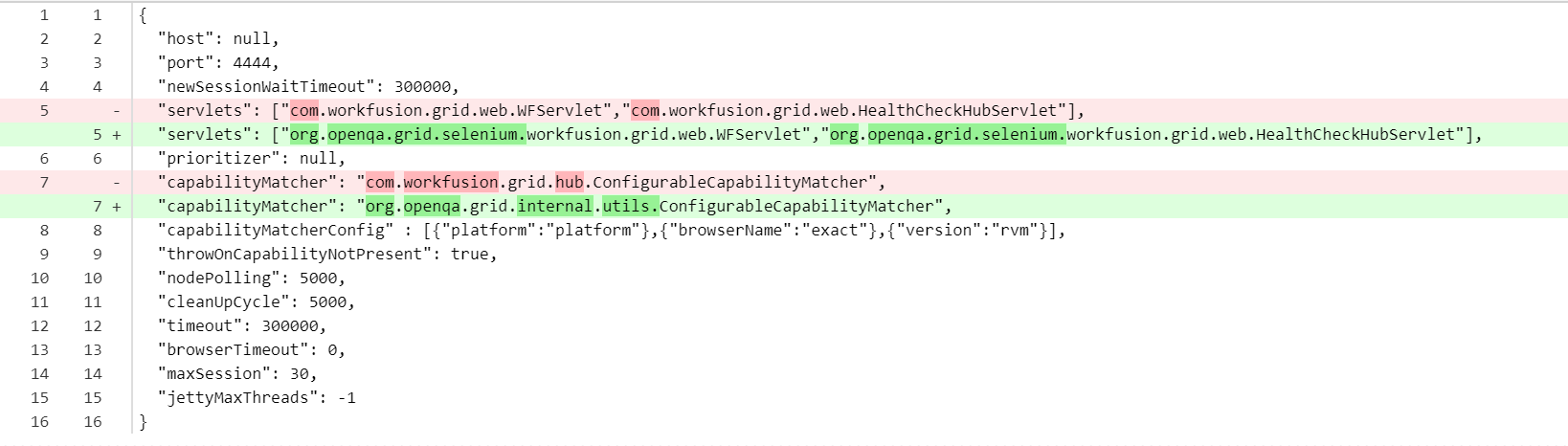

Hub.json

Selenium 2

{
 "host": null,
 "port": 4444,
 "newSessionWaitTimeout": 300000,
 "servlets": ["com.workfusion.grid.web.WFServlet",
              "com.workfusion.grid.web.HealthCheckHubServlet"],
 "prioritizer": null,
 "capabilityMatcher": "com.workfusion.grid.hub.ConfigurableCapabilityMatcher",
 "capabilityMatcherConfig" : [{"platform":"platform"},
                              {"browserName":"exact"},
                              {"version":"rvm"}],
 "throwOnCapabilityNotPresent": true,
 "nodePolling": 5000,
 "cleanUpCycle": 5000,
 "timeout": 300000,
 "browserTimeout": 0,
 "maxSession": 30,
 "jettyMaxThreads": -1
}

Selenium 3 (RPA 8.5.0)

{
  "host": null,
  "port": 4444,
  "newSessionWaitTimeout": 300000,
  "servlets": ["org.openqa.grid.selenium.workfusion.grid.web.WFServlet",
               "org.openqa.grid.selenium.workfusion.grid.web.HealthCheckHubServlet"],
  "prioritizer": null,
  "capabilityMatcher": "org.openqa.grid.internal.utils.ConfigurableCapabilityMatcher",
  "capabilityMatcherConfig" : [{"platform":"platform"},
                               {"browserName":"exact"},
                               {"version":"rvm"}],
  "throwOnCapabilityNotPresent": true,
  "nodePolling": 5000,
  "cleanUpCycle": 5000,
  "timeout": 300000,
  "browserTimeout": 0,
  "maxSession": 30,
  "jettyMaxThreads": -1
}

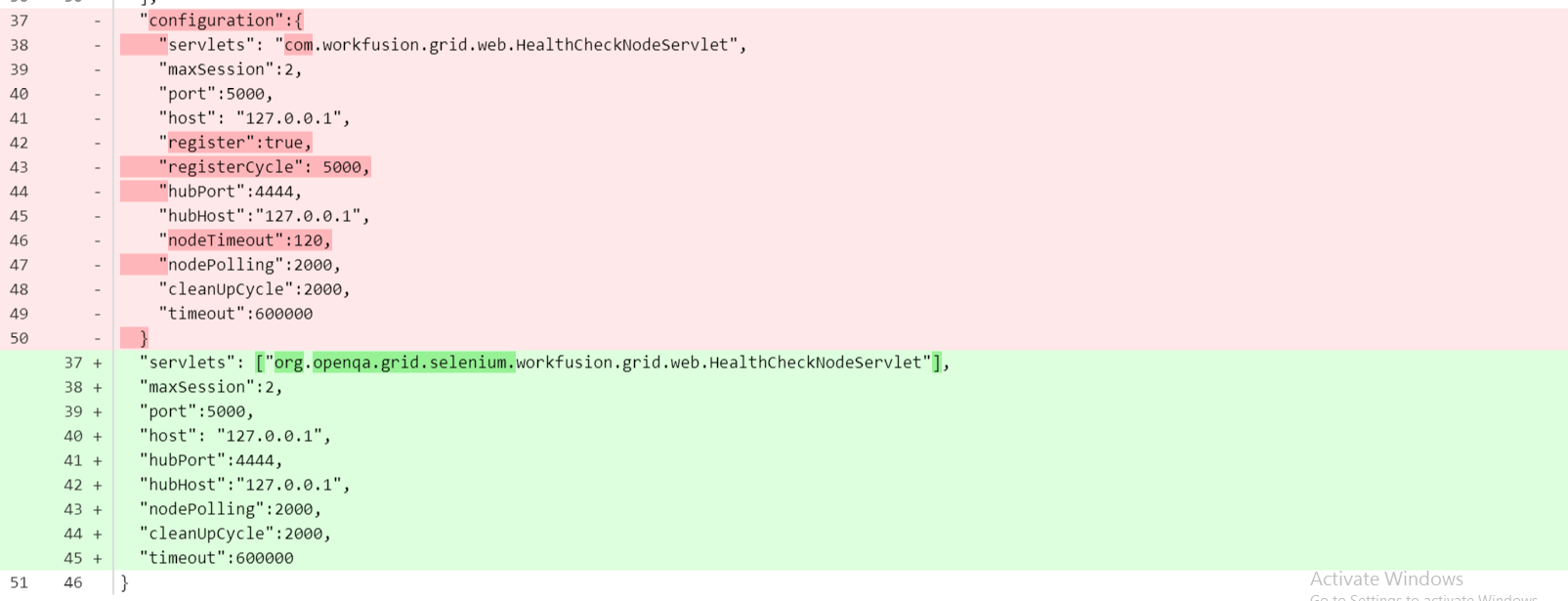

NodeX.json

Selenium 2

{
 "capabilities":[
 {
 "platform": "WINDOWS",
 "browserName": "internet explorer",
 "version": "11",
 "maxInstances": 1,
 "seleniumProtocol": "WebDriver"
 },
 {
 "platform": "WINDOWS",
 "browserName": "desktop",
 "version": "1.0",
 "maxInstances": 1,
 "seleniumProtocol": "WebDriver"
 },
 {
 "platform": "WINDOWS",
 "browserName": "universal",
 "version": "1.0",
 "maxInstances": 1,
 "seleniumProtocol": "WebDriver"
 },
 {
 "browserName": "chrome",
 "version": "1.0",
 "maxInstances": 1,
 "seleniumProtocol": "WebDriver"
 },
 {
 "browserName": "firefox",
 "version": "1.0",
 "maxInstances": 1,
 "seleniumProtocol": "WebDriver"
 }
 ],
 "configuration":{
 "servlets": "com.workfusion.grid.web.HealthCheckNodeServlet",
 "maxSession":2,
 "port":5000,
 "host": "127.0.0.1",
 "register":true,
 "registerCycle": 5000,
 "hubPort":4444,
 "hubHost":"127.0.0.1",
 "nodeTimeout":120,
 "nodePolling":2000,
 "cleanUpCycle":2000,
 "timeout":600000
 }
}

Selenium 3 (RPA 8.5.0)

{
 "capabilities":[
 {
 "platform": "WINDOWS",
 "browserName": "internet explorer",
 "version": "11",
 "maxInstances": 1,
 "seleniumProtocol": "WebDriver"
 },
 {
 "platform": "WINDOWS",
 "browserName": "desktop",
 "version": "1.0",
 "maxInstances": 1,
 "seleniumProtocol": "WebDriver"
 },
 {
 "platform": "WINDOWS",
 "browserName": "universal",
 "version": "1.0",
 "maxInstances": 1,
 "seleniumProtocol": "WebDriver"
 },
 {
 "browserName": "chrome",
 "version": "1.0",
 "maxInstances": 1,
 "seleniumProtocol": "WebDriver"
 },
 {
 "browserName": "firefox",
 "version": "1.0",
 "maxInstances": 1,
 "seleniumProtocol": "WebDriver"
 }
 ],
 "servlets": ["org.openqa.grid.selenium.workfusion.grid.web.HealthCheckNodeServlet"],
 "maxSession":2,
 "port":5000,
 "host": "127.0.0.1",
 "hubPort":4444,
 "hubHost":"127.0.0.1",
 "nodePolling":2000,
 "cleanUpCycle":2000,
 "timeout":600000
}

start-hub.bat

Selenium 2

...

:start
echo "%_messageStarting%"
cd /d %~dp0
%_javaPath%\bin\java -Dfile.encoding=UTF-8 %_logConfig% -cp %_javaPath%\lib\tools.jar;*;dependency\* com.workfusion.grid.CustomGridLauncher %_role% %_config%

:end

...

Selenium 3 (RPA 8.5.0)

...

:start
echo "%_messageStarting%"
cd /d %~dp0
%_javaPath%\bin\java -Dfile.encoding=UTF-8 %_logConfig% -cp %_javaPath%\lib\tools.jar;*;dependency\* org.openqa.grid.selenium.workfusion.grid.SeleniumGridLauncher %_role% %_config%

:end

...

start-nodeX.bat

Selenium 2

...

:start
echo "%_messageStarting%"
cd /d %~dp0
%_javaPath%\bin\java -Dfile.encoding=UTF-8 %_logConfig% -cp %_javaPath%\lib\tools.jar;*;dependency\* com.workfusion.grid.CustomGridLauncher %_role% %_config%
:end

...

Selenium 3 (RPA 8.5.0)

...

:start
echo "%_messageStarting%"
cd /d %~dp0
%_javaPath%\bin\java -Dfile.encoding=UTF-8 %_logConfig% -cp %_javaPath%\lib\tools.jar;*;dependency\* org.openqa.grid.selenium.workfusion.grid.SeleniumGridLauncher %_role% %_config%
:end

...

Application properties

The following new properties should be added to the application.properties file:

  • find.node.retry.count: retry count for node search (default value: 10).
  • find.node.wait.timeout: wait between retries to find a node in milliseconds (default value: 10000).
