Represent Bot Task as ETL form (legacy)

info

The article describes the legacy bot step configuration flow. For the recommended approach, refer to Configure bot steps in UI.

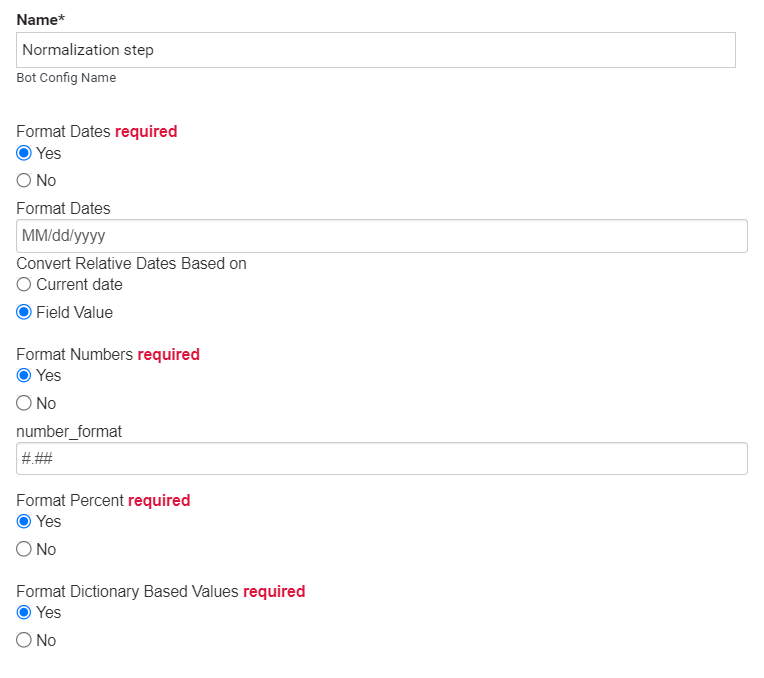

ETL Form is a special Bot Config type that allows you to flexibly reuse bot configurations without direct coding. Business users can include such Bot Configs into Business Processes (BPs) and safely set their initial parameters and input or output data through an interface form.

Sample ETL form

The Bot Config below is another sample of an ETL form. It includes an Input column, If statement, and Output column. With the ETL form, you can define the following:

Input column name ({{input_column_name}})
Limit for the If condition ({{amount_limit}})
Output column name ({{result_column_name}})

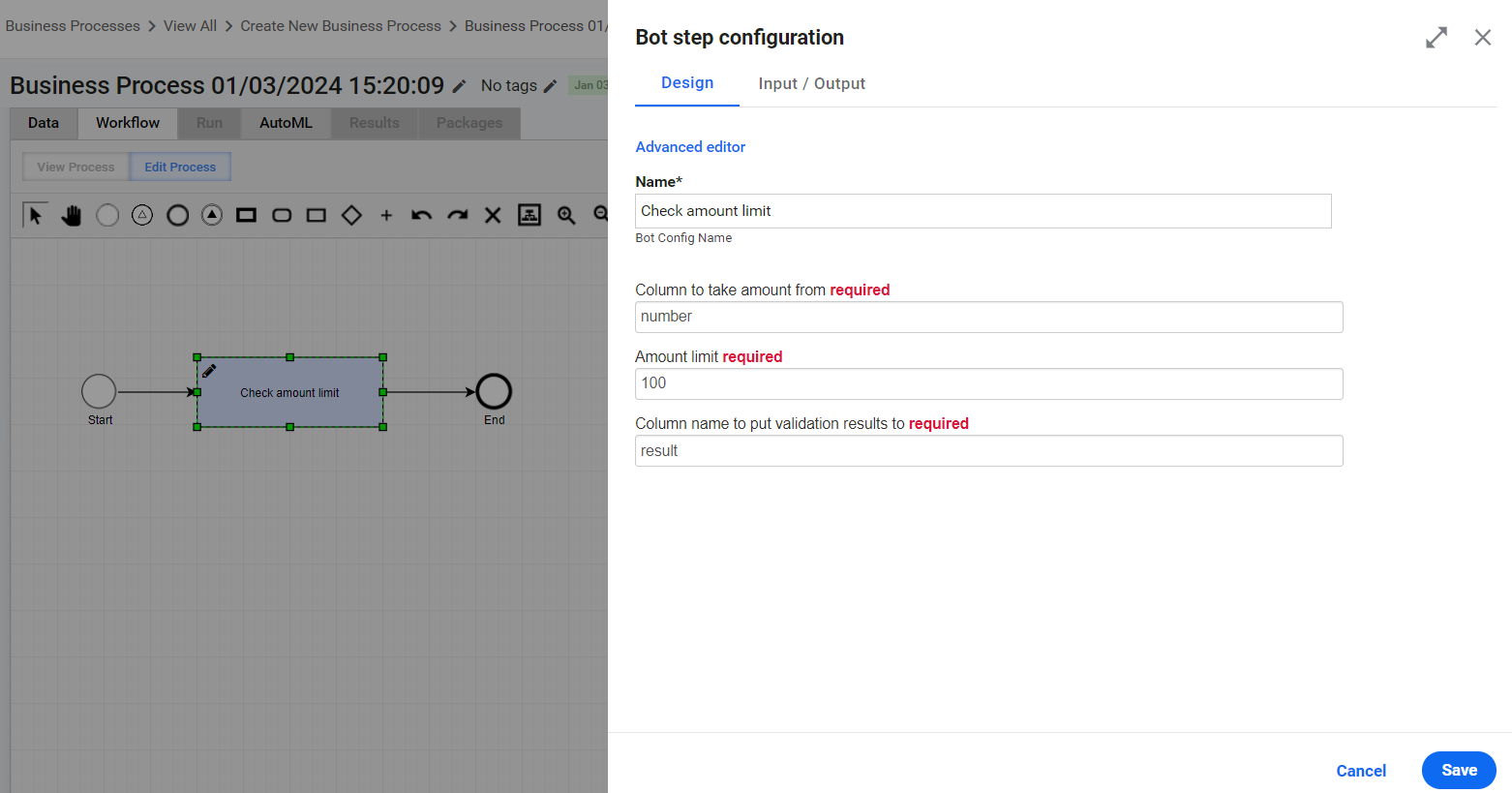

In this form, the user specifies the input column that contains number, sets the limit value to 100 and the output column name to result.

See code

<?xml version="1.0" encoding="UTF-8"?>
<config>
   <var-def name ="amount">
       <#noparse>
         <template>${{{input_column_name}}}</template>
       </#noparse>
   </var-def>

   <var-def name ="output">
       <template>Pass</template>
   </var-def>
   <case>
     <#noparse>
       <if condition="${Integer.valueOf(amount.toString()) >= {{amount_limit}}}">
       <var-def name ="output">
           <template>Fail</template>
       </var-def>
       </if>
     </#noparse>
   </case>
   <export include-original-data="true">
     <single-column name="{{result_column_name}}" value="${output}"/>
   </export>
</config>

Convert Bot Configuration to ETL form

To create an ETL Bot Configuration, follow the steps below:

Create a template:
1. Go to Advanced > Templates and click Create.
2. Specify the template's name and add your existing Bot Configuration code to the created template.
3. In the Template Type fields, select Base and click Save & Close or Save.
Create an Operation:
1. Go to System Settings > Operations. Navigate to the Bot tab and click Create Operation.
2. On the Create Operation page, specify the operation's name and click Show Advanced Options.
3. In the Basic template drop-down box, choose the template you created and set the Operation type to ETL.
4. Click Add Answer and set up the following answers:
  - Input column name (input_column_name)
  - Condition (amount_limit)
  - Output column name (result_column_name)
5. Edit the code for all the three settings. For example, from ${input_column_name} to the following values:
  - {{input_column_name}} to get the column name
  - ${{{input_column_name}}} to get the value of this column, not its name
6. Save the ETL Bot Config.

Add ETL bot to Business Process

For instructions on adding an ETL bot to a BP, refer to Add Bot Task.

Other ETL form examples

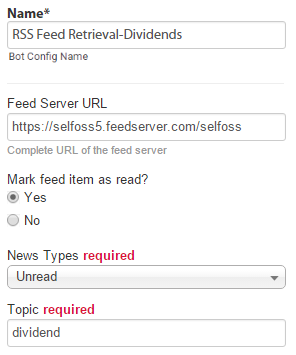

Retrieve RSS feed

See bot code

<?xml version="1.0" encoding="UTF-8"?>
<config>

    <var-def name="selfossUrl">
      <template>{{selfossurl}}</template>
    </var-def>

    <var-def name="mark_as_read_var">
      <template>{{mark_as_read}}</template>
    </var-def>

     <script><![CDATA[
        Map uniqueMap = new HashMap();
        List feedIds = new ArrayList();
    ]]>
    </script>

    <while condition="true" index="idx" maxloops="40">
        <var-def name="offset">
            <script return="offset_result">
                <![CDATA[
                offset_result = (Integer.parseInt(idx.getWrappedObject()) - 1) * 200;
                ]]>
            </script>
        </var-def>

        <var-def name="itemsUrl">
          <template>${selfossUrl}/items?items=200&amp;offset=${offset}&amp;
type={{type}}&amp;topic={{topic}}&amp;tag={{topic}}</template>
        </var-def>

        <var-def name="itemsJson">
            <http url="${itemsUrl}" cookie-policy="browser" method="GET"/>
        </var-def>

        <script><![CDATA[
            org.json.JSONArray jsonArr = new org.json.JSONArray(itemsJson.toString());
            int jsonArrLength = jsonArr.length();
            for (int i=0; i<jsonArrLength; i++) {
                org.json.JSONObject jsonItem = jsonArr.getJSONObject(i);
                String jsonItemContent = jsonItem.get("content");
                String jsonItemSourceTitle = jsonItem.get("sourcetitle");
                String jsonItemLink = jsonItem.get("link");
                String jsonItemDateTime = jsonItem.get("datetime");
                String jsonItemUid = jsonItem.get("uid");
                String jsonTitle = jsonItem.get("title");
                String itemId = jsonItem.get("id") != null ? jsonItem.get("id").toString(): "unknown" ;
                Map exportItem = new HashMap();
                exportItem.put("newsLink", jsonItemLink);
                exportItem.put("sourceTitle", jsonItemSourceTitle);
                exportItem.put("dateTime", jsonItemDateTime);
                exportItem.put("feedUid", jsonItemUid);
                exportItem.put("title", jsonTitle);
                exportItem.put("feed_id", itemId);
                uniqueMap.put(jsonItemContent, exportItem);
                feedIds.add(itemId);
            }
        ]]></script>

    </while>

    <var-def name="itemIds">
        <script return="result">
            <![CDATA[
            result = feedIds;
            ]]>
        </script>
    </var-def>

    <case>
      <if condition="${'${' + 'mark_as_read_var.toBoolean()' + '}'}">
          <loop item="itemId">
            <list>
              <var name="itemIds"/>
            </list>
            <body>
              <empty>
                <var-def name="markResult">
                  <http url="${selfossUrl}/mark/${itemId}" cookie-policy="browser" method="POST"/>
                </var-def>
              </empty>
            </body>
          </loop>
      </if>
    </case>

    <script><![CDATA[
      List exportItems = new ArrayList(uniqueMap.values());
   ]]></script>

    <export include-original-data="false">
      <multi-column list="${exportItems}">
        <put-to-column-getter name="source" property="sourceTitle"/>
        <put-to-column-getter name="feed_uid" property="feedUid"/>
        <put-to-column-getter name="feed_link" property="newsLink"/>
        <put-to-column-getter name="date_time" property="dateTime"/>
        <put-to-column-getter name="feed_title" property="title"/>
        <put-to-column-getter name="feed_id" property="feed_id"/>
      </multi-column>
    </export>

</config>

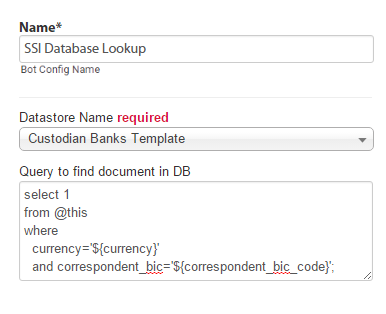

Look up SSI database

SSI

See bot code

<?xml version="1.0" encoding="UTF-8"?>
<config charset="UTF-8">
  <var-def name="db_name">{{db_name}}</var-def>

  <var-def name="custodian_bank_swift"><template>${custodian_bank_swift}</template></var-def>
  <var-def name="custodian_bank_name"><template>${custodian_bank_name}</template></var-def>
  <var-def name="currency"><template>${currency}</template></var-def>
  <var-def name="correspondent_bic"><template>${correspondent_bic}</template></var-def>
  <var-def name="ssi_exists"><template>false</template></var-def>

  <var-def name="ssi_document">
    <datastore name="Custodian Banks Template">
      {{check_query}}
    </datastore>
  </var-def>
  <var-def name="ssi_exists">
    <script return="result">
             <![CDATA[
               if(ssi_document.toList().isEmpty())
                 result = false;
               else
                 result = true;
             ]]>
    </script>
  </var-def>
  <var-def name="jobUUID">
    <script return="uuid">
      <![CDATA[java.util.UUID uuid = java.util.UUID.randomUUID();]]>
    </script>
  </var-def>

  <export include-original-data="true">
    <single-column name="ssi_exists" value="${ssi_exists}"/>
    <single-column name="job_uuid" value="${jobUUID}"/>
  </export>

</config>

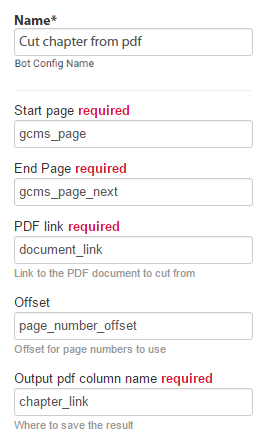

Cut chapter from PDF

PDF Chapter

See bot code

<?xml version="1.0" encoding="UTF-8"?>
<config>

  <var-def name='toc_start'><template>${{{start_page}}}</template></var-def>
    <var-def name='toc_end'><template>${{{end_page}}}</template></var-def>
    <var-def name='document_link'><template>${{{pdf_document_link}}}</template></var-def>
  <var-def name='offset'><template>${{{offset}}}</template></var-def>

    <script><![CDATA[
            import org.apache.pdfbox.pdmodel.*;
            import org.apache.pdfbox.util.PageExtractor;

            java.net.URL url = new java.net.URL(document_link.toString());
            org.apache.pdfbox.pdmodel.PDDocument document = org.apache.pdfbox.pdmodel.PDDocument.load(url);
            ByteArrayOutputStream output = new ByteArrayOutputStream();
            PDDocument newDocument = new PDDocument();

            int currentPage = 1;

  int offsetInt = offset.toString().isEmpty() ? 0 : offset.toInt();

            for (PDPage page : document.getDocumentCatalog().getAllPages()) {
                if ((toc_start.toString().isEmpty() || currentPage >= toc_start.toInt() - offsetInt) && (toc_end.toString().isEmpty() || currentPage <= toc_end.toInt() - offsetInt)) {
                    newDocument.addPage(page);
                }
                currentPage++;
            }
            newDocument.save(output);
            newDocument.close();
            Object docUuid = java.util.UUID.randomUUID();
        ]]>
  </script>

        <var-def name="cuttedDoc">
            <s3 bucket='temp_bucket'>
                <s3-put-public path='TR/OCR/split/${docUuid}.pdf' content-type="application/pdf" content-disposition="inline">
                    <script return="output.toByteArray()"/>
                </s3-put-public>
            </s3>
        </var-def>

        <export include-original-data='true'>
          <single-column name="{{output_column_name}}" value="${cuttedDoc}" />
        </export>

</config>

Skip escaping

See bot code

<?xml version="1.0" encoding="UTF-8"?>
<config charset="UTF-8">
    <var-def name="message">
        <script return="result">
            String result = org.apache.commons.lang3.StringEscapeUtils.unescapeJava("{{text}}");
        </script>
    </var-def>
    <export include-original-data="true">
        <single-column name="message" value="${message}" />
    </export>
</config>
