Cluster utilization dashboard

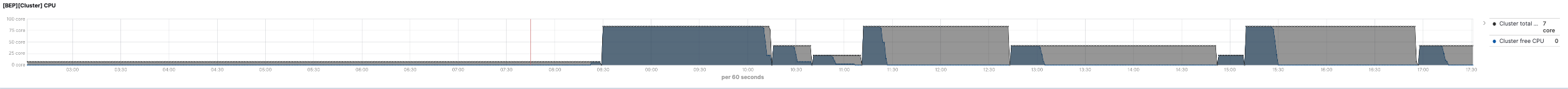

[BEP][Cluster] CPU​

The graph displays the following information from the Mesos service:

  • Total CPU in the cluster
  • Free CPU for a specific period

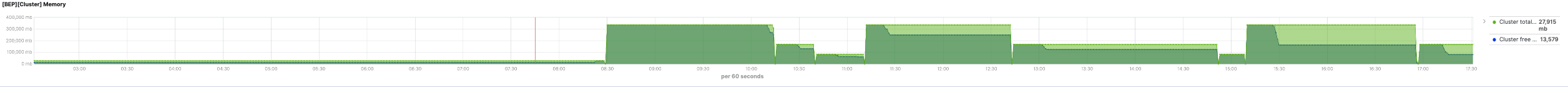

[BEP][Cluster] Memory​

The graph displays the following information from the Mesos service:

  • Total RAM in the cluster
  • Free RAM for a specific period

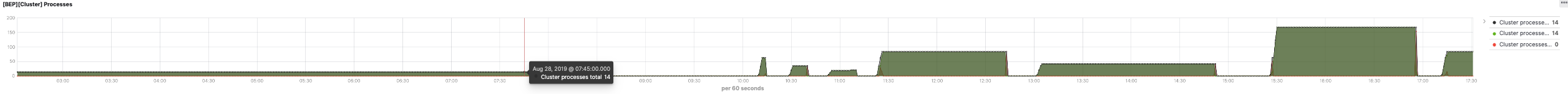

[BEP][Cluster] Processes​

The graph displays the following information from the Mesos service:

  • Total amount of processes
  • The number of running and waiting processes

Usually, waiting cluster processes should be 0, or they can be more than 0 but over a short period.

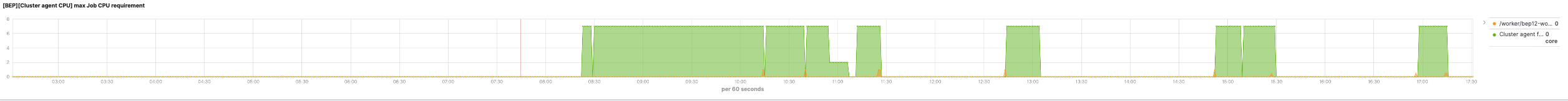

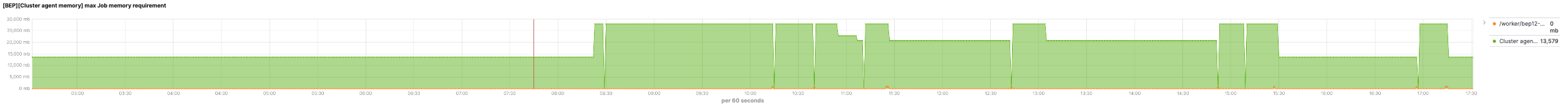

[BEP][Cluster agent CPU] max Job CPU requirement and [BEP][Cluster agent memory] max Job memory requirement​

These graphs allow you to detect when a Worker fails to start because the cluster node doesn't have the capacity required by CPU or RAM. The cluster agent parameters should be more than other Worker parameters.

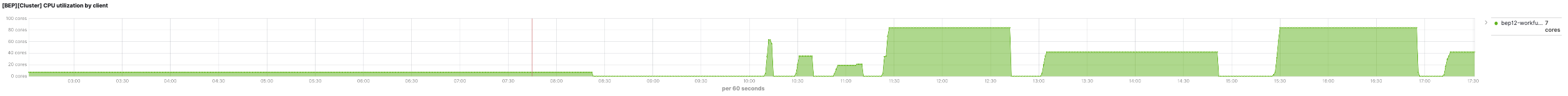

[BEP][Cluster] CPU utilization by client​

The graph displays how many CPUs are used by Worker GAVP—that means task messages in all task queues related to a specific Worker pool.

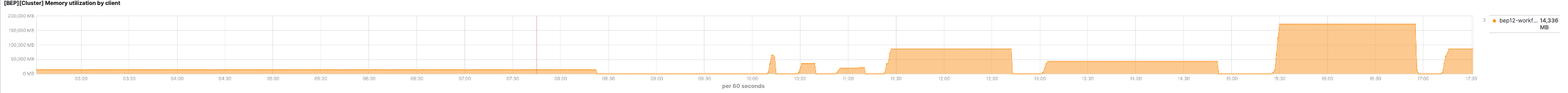

[BEP][Cluster] Memory utilization by client​

The graph shows how much RAM is used by Worker GAVP.
