Task flow by Business Process instance

[BEP][Tasks Flow] Tasks Submitted​

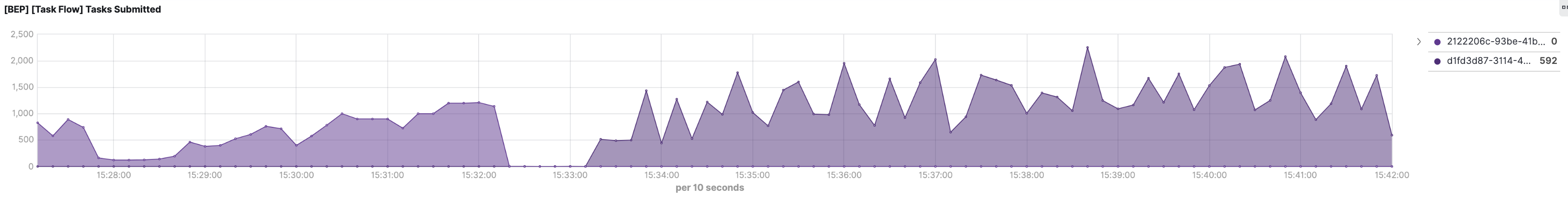

The graph shows how many tasks related to a specific BP instance were submitted by a client. All tasks are grouped by the BP identifier—BP UUID.

[BEP][Tasks Flow] Tasks processed by workers​

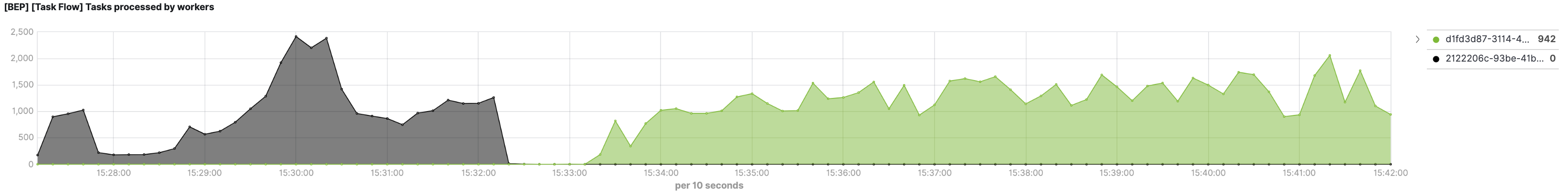

This graph shows how many tasks were processed by Workers. All tasks are grouped by the BP identifier—BP UUID.

info

If the [BEP][Tasks Flow] Tasks Submitted graph shows a lot of items and the [BEP][Tasks Flow] Tasks processed by workers one shows fewer data within the same period, this can mean the BEP cluster either works incorrectly or needs more Workers for processing submitted tasks.

[BEP][Tasks Flow] Results received by client app​

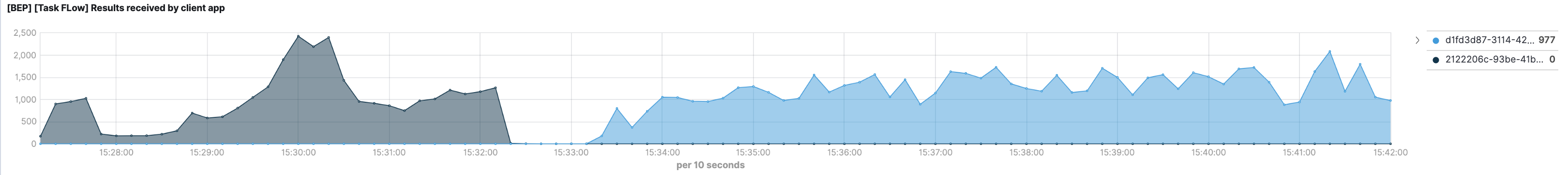

This graph shows the results of a task execution received by a client from the BEP cluster. All tasks are grouped by the BP identifier—BP UUID.

[BEP][Tasks Flow] Results processed by client app​

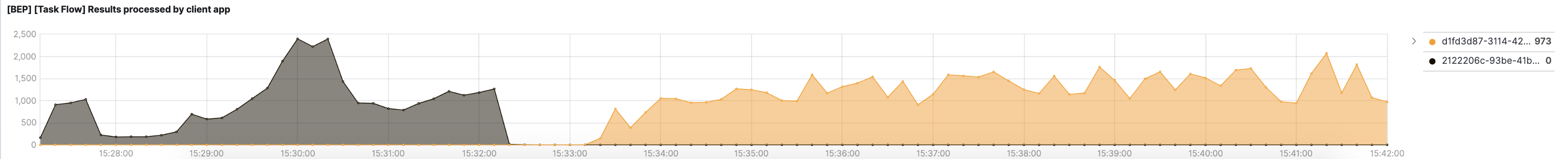

The graph shows the results of a task execution processed by a client. All tasks are grouped by the BP identifier—BP UUID.

note

Usually, the [BEP][Tasks Flow] Tasks processed by workers, [BEP][Tasks Flow] Results received by client app, [BEP][Tasks Flow] Results processed by client app graphs show the same data. It's correct behavior.
