RabbitMQ

Service overview

Software owner Pivotal Software, Inc.
Version 3.6.1
System requirements

4 CPUs, 4 GB RAM, 2 GB free space
Management

wfmanager (start | stop | restart | status) rabbitmq
Log files

Access logs: ${install_dir}/supervisord/log/rabbitmq.out.log
Error logs: ${install_dir}/supervisord/log/rabbitmq.err.log
Startup scripts

${INSTALL_DIR}/supervisord/apps/rabbitmq.ini

${INSTALL_DIR}/rabbitmq/sbin/rabbitmq-server
Configuration files

Service directory: ${INSTALL_DIR}/rabbitmq

General rabbitmq configuration: ${INSTALL_DIR}/rabbitmq/etc/rabbitmq/rabbitmq.config
Default Ports

tcp 15672

Default parameters

Configuration fileNameDefault valueDescription
config.ymlinstall_dir/opt/workfusionDirectory to put user files, logs and configs
config.ymlrabbitmq_api_proxy_port45672Default service port for installation

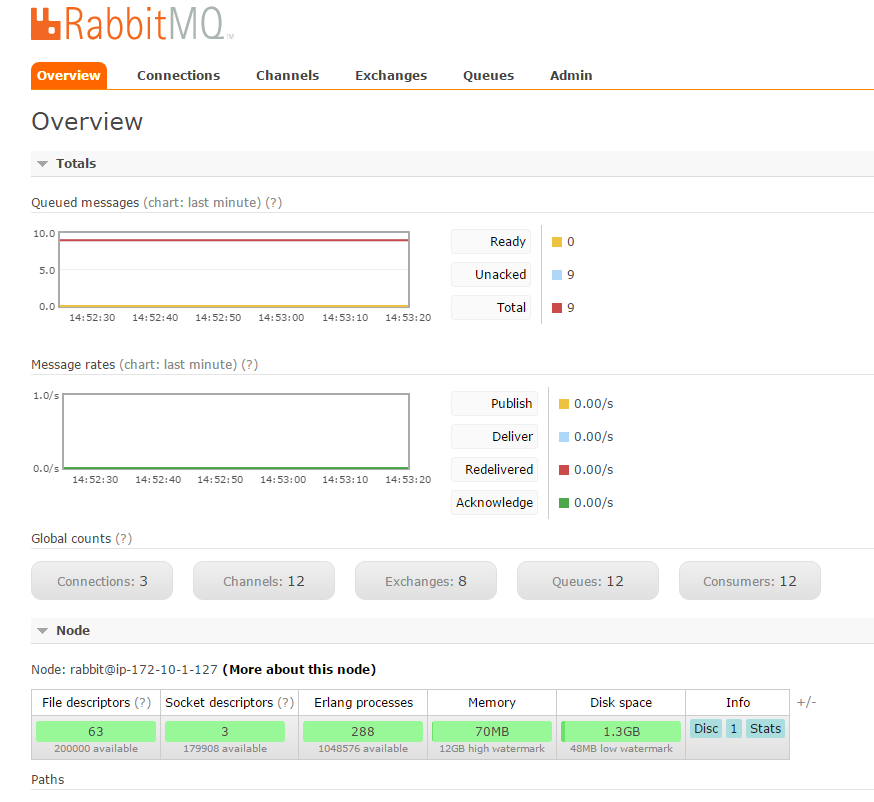

Admin interface

Access the admin interface via http://<ml_server_url>:45672. Login and password are configurable per installation.

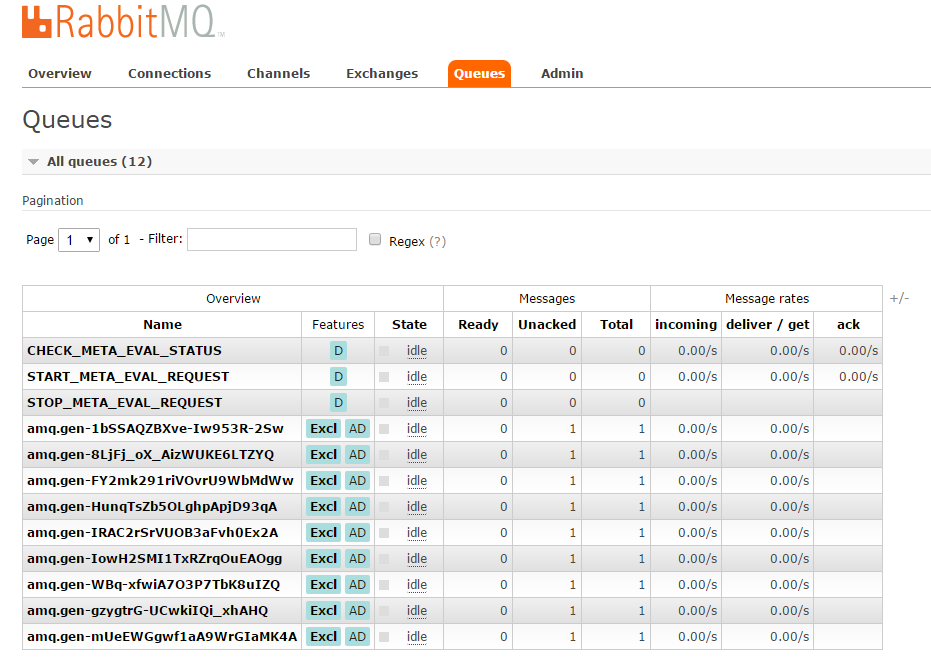

The information about queues is available on the Queues tab where you can see how many messages are stored in a particular queue (training or extract operations).

Troubleshooting

  • Check if TCP ports 15672 and 45672 are available.

    netstat command output

    $ netstat -tnlp | egrep '15672|45672'
tcp        0      0 127.0.0.1:15672         0.0.0.0:*               LISTEN      20281/beam.smp
tcp        0      0 0.0.0.0:45672           0.0.0.0:*               LISTEN      26343/nginx: master

    ss command output

    $ ss -ltn | egrep '15672|45672'
LISTEN     0      128    127.0.0.1:15672                    *:*
LISTEN     0      511          *:45672                    *:*

    lsof command output

    $ lsof -P -n -i :15672 -i :45672 | grep LISTEN
beam.smp 20281 wfuser   53u  IPv4 74881022      0t0  TCP 127.0.0.1:15672 (LISTEN)
nginx    26343 wfuser    5u  IPv4 74901596      0t0  TCP *:45672 (LISTEN)
nginx    29644 wfuser    5u  IPv4 74901596      0t0  TCP *:45672 (LISTEN)
nginx    29645 wfuser    5u  IPv4 74901596      0t0  TCP *:45672 (LISTEN)

  • Check the default main log files:

    • Access logs: ${install_dir}/supervisord/log/rabbitmq.out.log
    • Error logs: ${install_dir}/supervisord/log/rabbitmq.err.log
    $ tail -f ${install_dir}/supervisord/log/rabbitmq.err.log ${install_dir}/supervisord/log/rabbitmq.out.log

  • Check rabbitmq out (access) log using the Wfmanager util.

    wfmanager tail rabbitmq

  • Enable more detailed debug information.

    Set the debug log level to ${install_dir}/rabbitmq/etc/rabbitmq/rabbitmq.config and restart the mesos-master service:

    ${install_dir}/rabbitmq/etc/rabbitmq/rabbitmq.config:

    [
   {rabbit, [{log_levels,[{connection, debug}]}]}
]

    wfmanager restart rabbitmq
