System requirements
Operating systems
Recommended
RHEL 7.5
Microsoft Windows Server 2012 R2 or Microsoft Windows 10 64 bit only
Supported
RHEL 7.3, 7.4, 7.5
Microsoft Windows Server 2012, 2012 R2, 2008 R2; Windows 7, 8, and 10 64 bit only

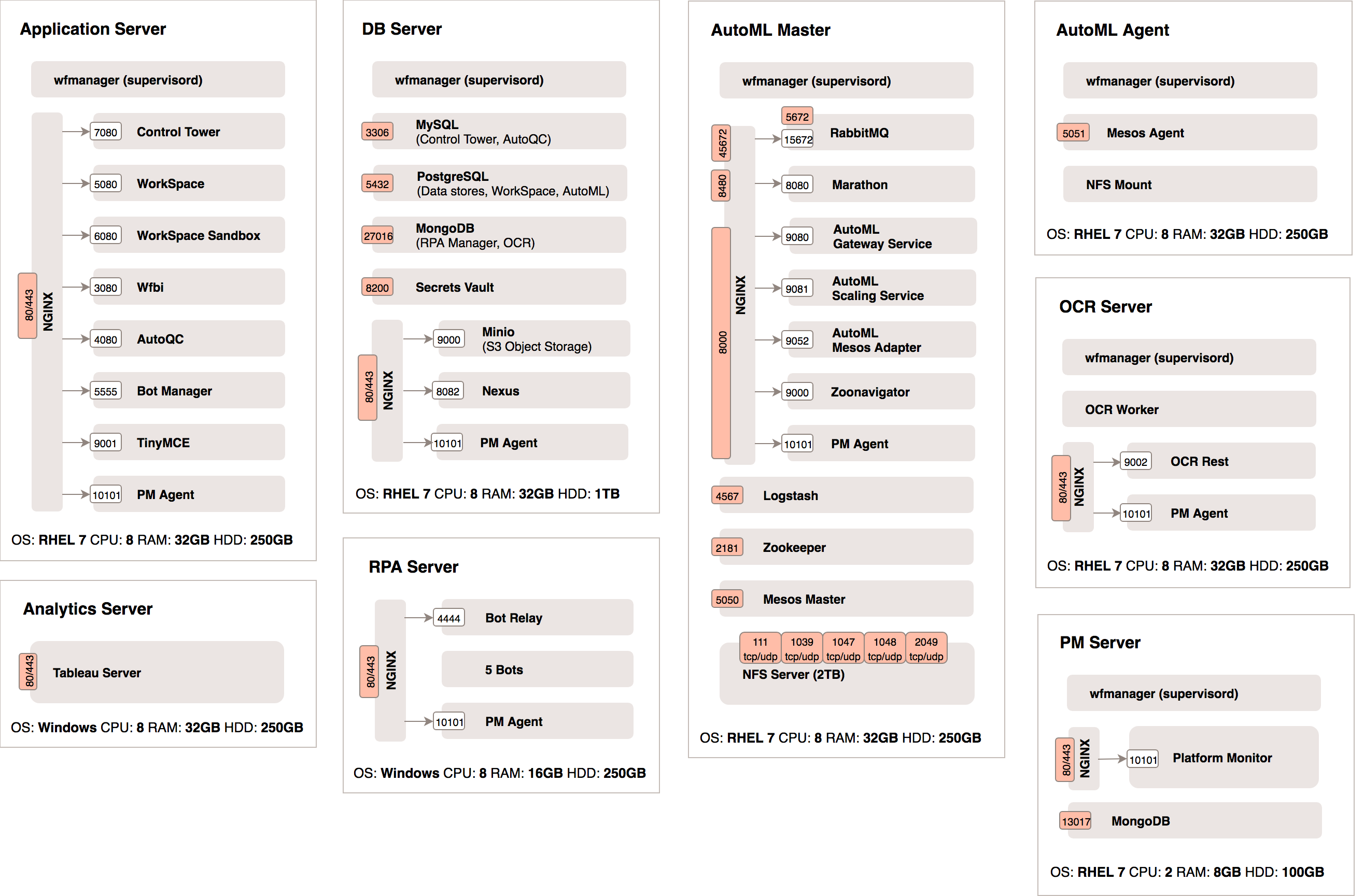

Hardware requirements
All servers should be in the same subnetwork, without the NAT process enabled for Windows machines.
Recommended for Development environment
| Server | Components | OS | CPU |
RAM (GB) |
HDD |
| APP | Application | RHEL | 8 |
32 |
250 GB |
| DB | Database | RHEL | 4 | 16 | 1 TB |
| OCR * | OCR engine | RHEL | 4 |
16 |
100 GB |
| AutoML * ** |
Master | RHEL | 8 |
32 |
250 GB |
| NFS share | - | - | - | 2 TB | |
| Agent | RHEL | 8 | 32 | 250 GB | |
| PM * | Platform Monitor | RHEL | 2 | 4 | 100 GB |
| RPA * *** | 5 bots | Windows | 8 | 16 | 250 GB |
| Analytics | Business Intelligence | Windows | 4 | 16 | 100 GB |
Recommended for Production environment
Server |
Components |
OS | CPU |
RAM (GB) |
HDD |
APP |
Application |
RHEL | 8 |
32 |
250 GB |
DB |
Database |
RHEL | 8 |
32 |
1 TB |
OCR * |
OCR engine |
RHEL | 8 |
32 |
250 GB |
AutoML * ** |
Master |
RHEL | 8 |
32 |
250 GB |
| Agent | RHEL | 8 | 32 | 250 GB | |
| PM * | Platform Monitor | RHEL | 2 | 8 | 100 GB |
| RPA * *** | 5 bots | Windows | 8 | 16 | 250 GB |
| Analytics | Business Intelligence | Windows | 8 | 32 | 250 GB |
* The server is required only if the functionality is used.
** AutoML HPO training is performed on Development environment.
*** The RPA component is installed on the environment mimicking business operations environment with all the applications required to complete the task(s).
Unless stated otherwise, Disk space denotes the addressable space left on the single partition where you plan to install the software after the disk has been formatted with a filesystem.
For the installation it is advised to use HDD/SDD volumes mounted separately from the root volume of the operating system.
Recommended amount of AutoML Agents may vary, maximum amount up to 10.
Once Environment with the required capacity is prepared, proceed to Before you install section.
Browser requirements
For optimal work we recommend use of Chrome browser.
Capacity planning
The system requirements described are suitable for most of the typical automation projects and are recommended as a baseline for running Workfusion SPA in production. If you want to scale these recommendations, i.e. add more memory, or more CPU, you may have to tune other components in the SPA stack, like the JVM heap settings, or the MySQL max connections.
For these types of capacity changes and for detailed capacity and scaling planning, refer to Infrastructure capacity planning.
