ZooNavigator API

Service overview

Software owner	Elasticsearch BV
Version	0.2.1
Management	wfmanager (start | stop | restart | status) zoonavigator-api
Log files	Access logs: ${install_dir}/supervisord/log/zoonavigator-api.out.log Error logs: ${install_dir}/supervisord/log/zoonavigator-api.err.log
Startup scripts	${install_dir}/supervisord/apps/zoonavigator-api.ini ${install_dir}/zoonavigator/bin/zoonavigator-play ${install_dir}/ zoonavigator/run.sh
Configuration files	${install_dir}/zoonavigator/conf/application.conf
Default Ports	tcp 8000, local port - 9000

Default parameters

Configuration file	Name	Default value	Description
config.yml	install_dir	/opt/workfusion	Directory to put user files, logs and configs

Troubleshooting

• Check if TCP port 4567 is available.

  Ports may be custom:

  netstat command output

  $ netstat -lntp | grep 9000
  tcp6       0      0 127.0.0.1:9000          :::*                    LISTEN      981/java


  ss command output

  ss -ltn | grep 9000
  LISTEN     0      100       ::ffff:127.0.0.1:9000                    :::*


  lsof command output

  $ lsof -P -n -i :9000 | grep LISTEN
  java    981 wfuser   95u  IPv6  22966      0t0  TCP 127.0.0.1:9000 (LISTEN)


• Check the default main log files:

  • Access logs: ${install_dir}/supervisord/log/zoonavigator-api.out.log
  • Error logs: ${install_dir}/supervisord/log/zoonavigator-api.err.log

  $ tail -f ${install_dir}/supervisord/log/zoonavigator-api.err.log ${install_dir}/supervisord/log/zoonavigator-api.out.log


• Check zoonavigator-api out (access) log using the Wfmanager util.

  wfmanager tail zoonavigator-api


Configure settings

Settings can be configured via ZooNavigator (Web-based editor for ZooKeeper). To open ZooNavigator UI in on-premise, use the following URL: http://:8000/zoonavigator/connecSettings are divided into two groups:

• Mesos job limiting settings
• HPO limiting settings applied to the eval process for a model with HPO

Edit settings

1. Navigate to vds > default > eval > mesos or hpo.

2. Edit the value and click Save. No need to restart the container as settings will be applied on the fly for all the new jobs.

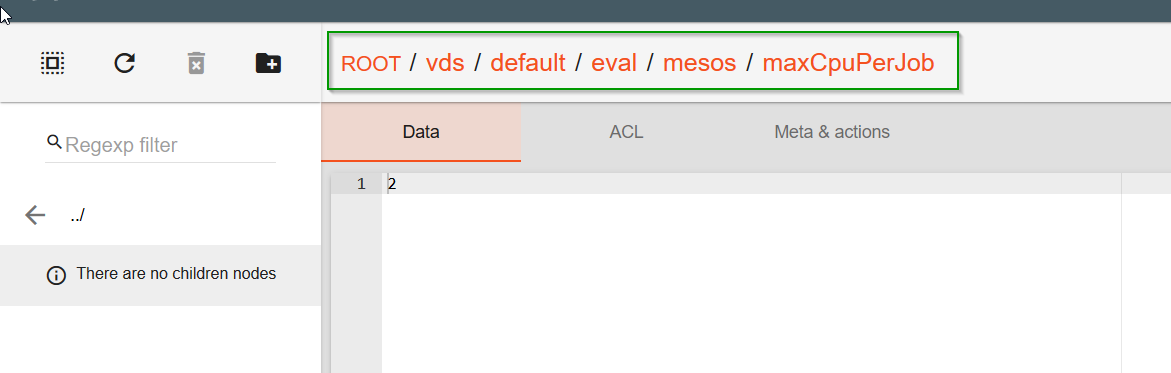

3. Click the setting name (it should be visible in the full path on the top).



Add setting

1. Navigate to folder where setting should be added, for example to add /eval/mesos/maxPendingDeployments, navigate to vds > default > eval > mesos folder.

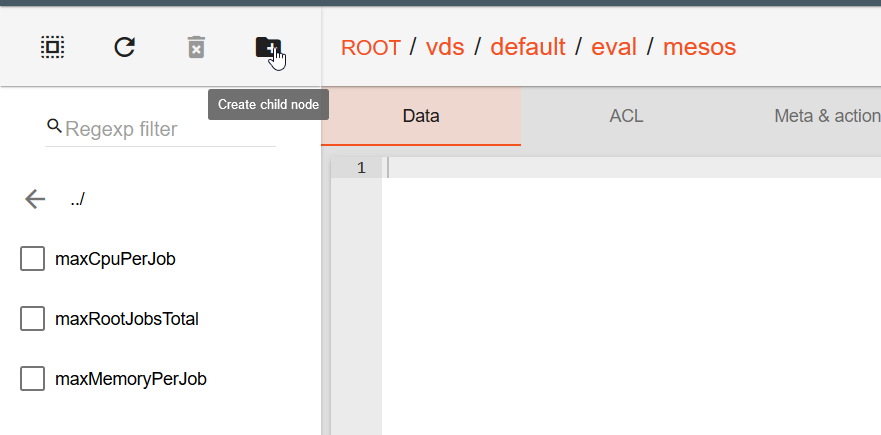

2. Click the Create child node icon.



3. Enter the setting name.

4. Click created. As a result, the value appears in the list.

5. To add a value, click a newly added setting and click Save. The changes are applied without restart.

Settings description

Mesos job limiting settings

Name	Default Value	Description/example
/eval/mesos/maxPendingDeployments		Maximum pending job (i.e. pending deployments) that allow to submit new jobs. If pending jobs count exceed that limit then all new job submission will be postponed until pending jobs count will drop below limit Used for cluster under high load
/eval/mesos/maxRootJobsTotal		Root job limitation for evaluation. If reached, new job won't be started Can be used for on-premise instances with the lack of resources
/eval/mesos/maxRootJobsPerUser		Max root jobs limitation for a single user that starts evaluation Used for shared cluster
/eval/mesos/maxMemoryPerJob		Maximum memory allowed for a single job
/eval/mesos/maxCpuPerJob		Maximum CPU allowed for a single job

HPO limiting settings

Name	Default Value	Description/example
/eval/hpo/experiment/limitByTotalJobs		Maximum user's running job that allow to submit new experiment job (not affected "leaf" jobs). If users's jobs count exceed that limit then all new experiment submission will be postponed until user's jobs count will drop below limit. Note: all jobs are counted (main, hpo-main, etc.)
/eval/hpo/experiment/limitByUserJobs		Maximum user's running job that allow to submit new experiment job (not affected "leaf" jobs). If users's jobs count exceed that limit then all new experiment submission will be postponed until user's jobs count will drop below limit.
/eval/hpo/model/maxParallelModels		Maximum number of parallel sub-models (HPO threads) running in single eval process per train.
/eval/hpo/model/maxParallelExperiments	8	Maximum number of parallel experiments in single sub-model per train.
/eval/hpo/model/timeLimit	10h	Time limit per sub-model HPO. If added manually > time must be set in seconds, for example 10800 for 3h limit
/eval/hpo/global/maxParallelExperiments	128	Maximum number of parallel HPO experiments for the whole cluster.
