Perform smart auto-reconnection for Bot Unit RDP session

The smart auto-reconnection feature allows you to log in to a specified Bot Unit via RDP using a Bot Unit account. Bot Master waits for each Bot Unit to disconnect a session and restarts the RDP process when a manual or tester session ends.

View the auto-reconnection workflow below:

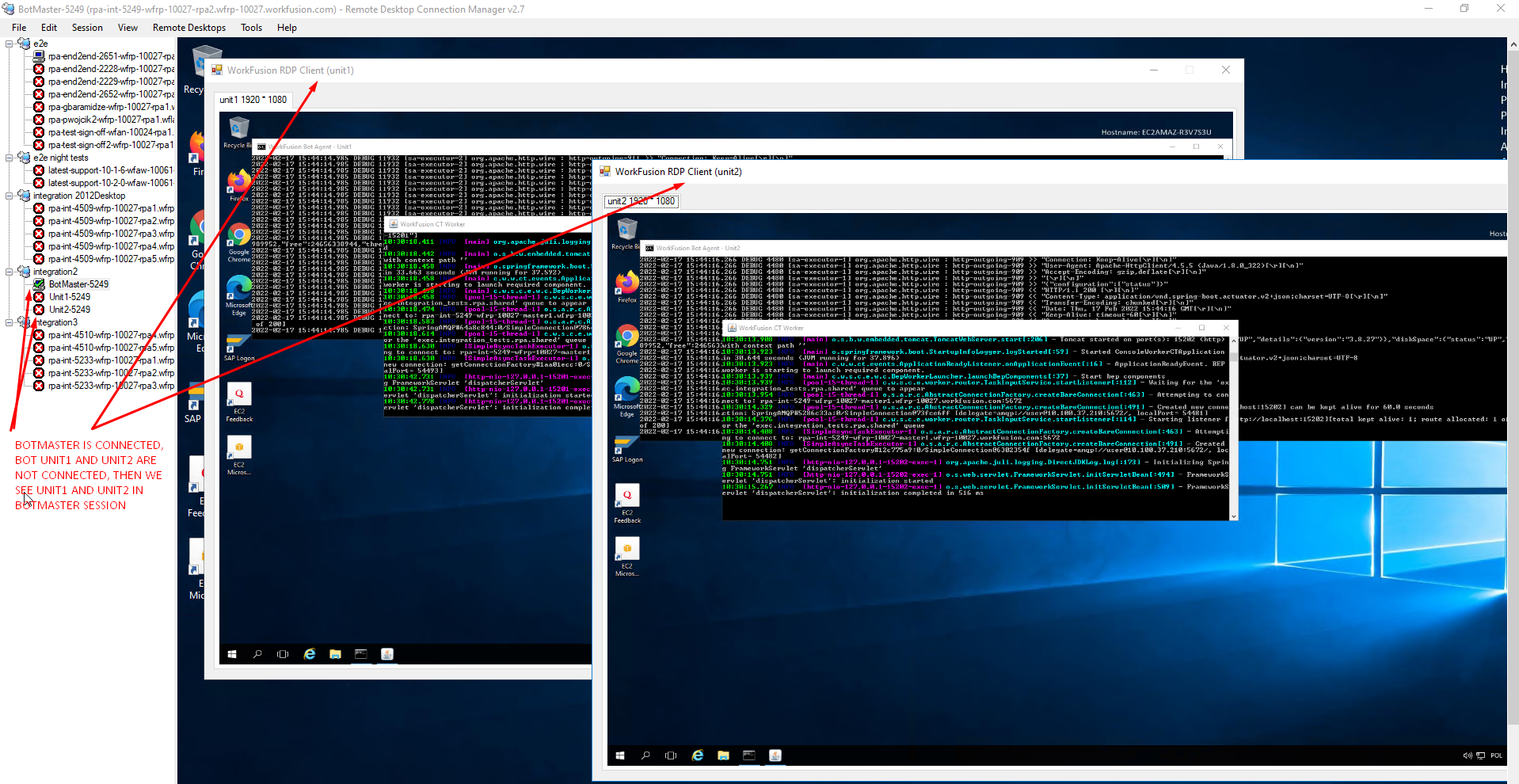

• After you connect to Bot Master via RDP, you can view two Bot Unit RDP connection windows:

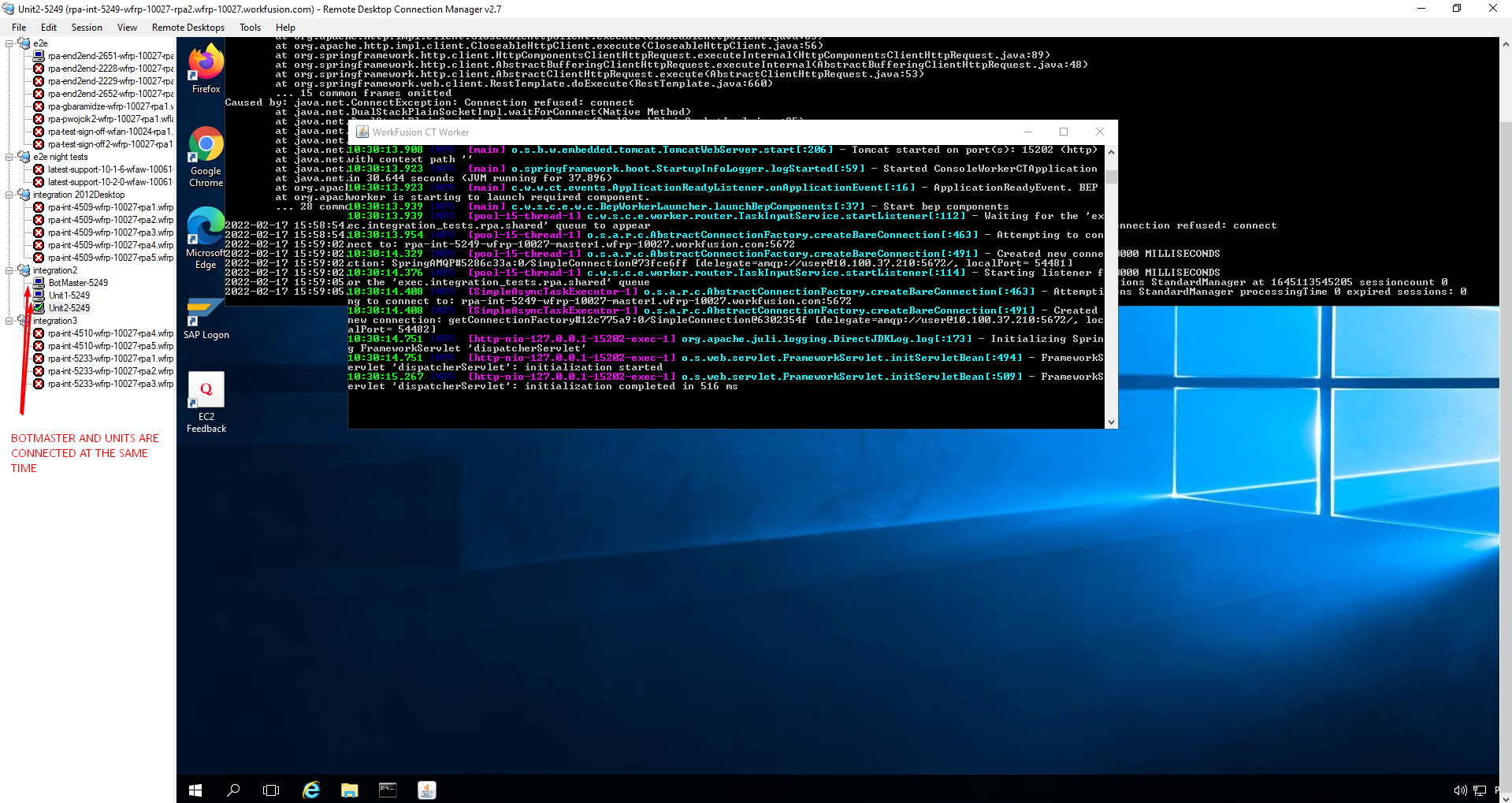

• When you connect to Unit 1, the RDP window disappears from the Bot Master session. Bot Master and Unit 1 are connected via RDP simultaneously.

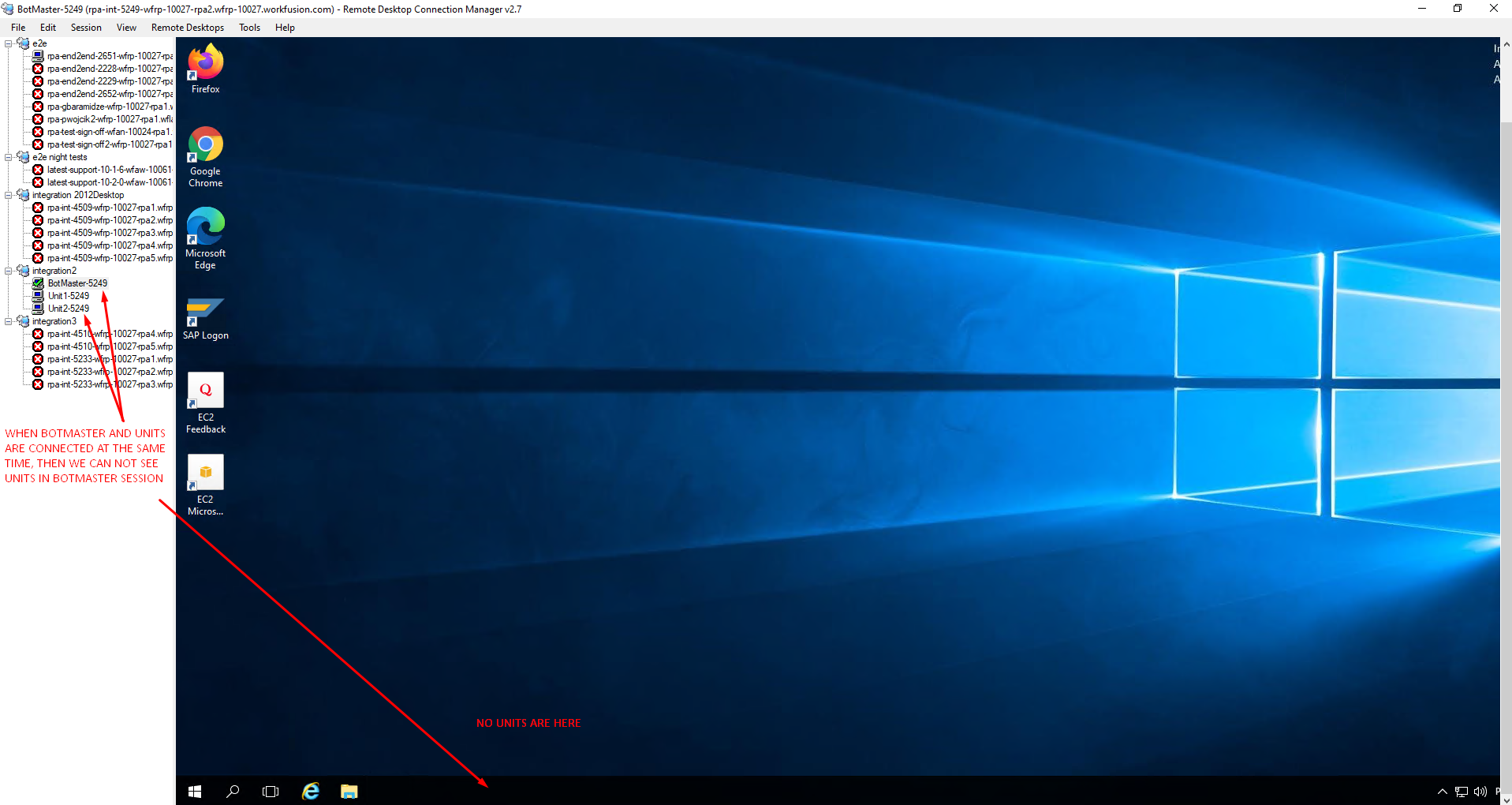

• After you connect to Unit 2, the RDP window disappears from the Bot Master session, and the Bot Unit connection windows no longer exist in Bot Master. Bot Master, Unit 1, and Unit 2 are connected via RDP simultaneously.

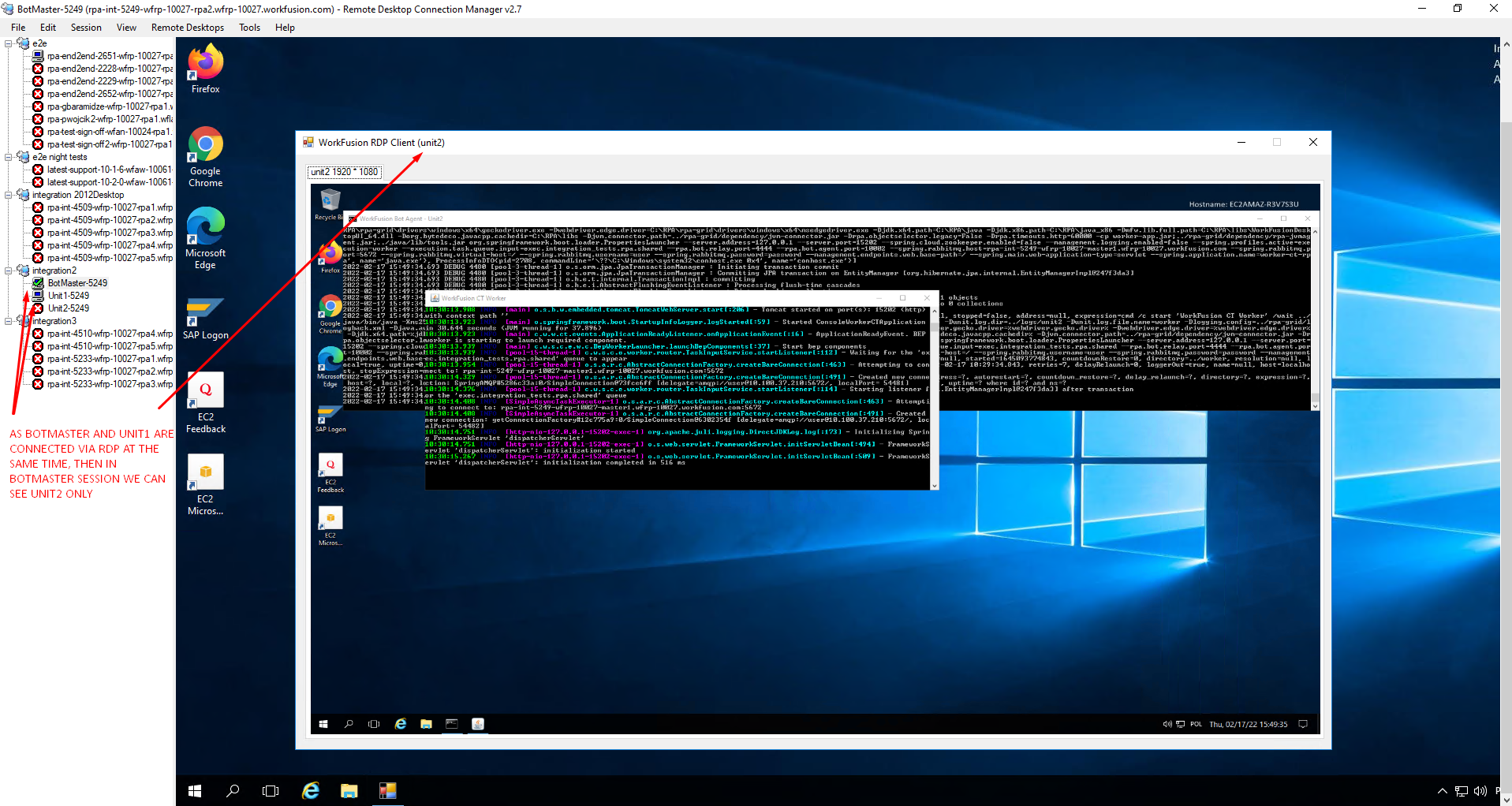

• When the Unit 1 and Unit 2 RDP sessions are disconnected, the RDP processes are relaunched in the Bot Master session. The Unit 1 and Unit 2 RDP windows appear in Bot Master.
