Add multiple Hubs and register new RPA Nodes on RPA server

The article describes how to add multiple Hubs and register new RPA Nodes on the existing physical or virtual RPA Server.

Prerequisites

You have a physical or virtual RPA server up and running with at least 1 Hub and 1 Node.
You have created additional Bot users and assigned the Remote Desktop role to them.
You have an installation user with Admin rights.
RPA server is inline with system requirements.
Typical requirements for five bots are as follows:
- 8 cores
- 16 GB RAM
- 250 GB HDD
Typical requirements for ten bots are as follows:
- 16 cores
- 32 GB RAM
- 500 GB HDD

Deploy independent Hub with associated Nodes

On the RPA server, go to the $Drive:/RPA/wfagent/conf directory and make a backup of the environment.yml file. As soon as it is done, create a copy of environment.yml and name it environment1.yml.

Edit these configuration files. The following variables should be duplicated and renamed environment.yml

From:

rpa_hub_hostname: rpa.example.com
rpa_hub_port: 4444
rpa_hub_protocol: http

To:

rpa_hub01_hostname: rpa.example.com
rpa_hub01_port: 10443
rpa_hub01_protocol: http
rpa_nginx_port: 443

environment.yml

From:

rpa_hub_hostname: rpa.example.com
rpa_hub_port: 4444
rpa_hub_protocol: http

To:

rpa_hub02_hostname: rpa.example.com
rpa_hub02_port: 10444
rpa_hub02_protocol: http
rpa_nginx_port: 444

The port number needs to be changed from the default one (4444) to the number of the port that is specified in the hub01.json and hub02.json files accordingly.

Rename the wfagent-hub.yml file to wfagent-hub01.yml and copy it as wfagent-hub02.yml and so on. You can create any number of the configs you wish. It depends on how many Hubs are configured on the server.
Change the value of the server.port parameter from 10000 to any non-used port number in both wfagenthub01.yml and wfagent-hub02.yml files. For example:

wfagent-hub01.yml
```
server.port: 10007
```
wfagent-hub02.yml
```
server.port: 10008
```
Change the logging folder name in both wfagent-hub01.yml and wfagent-hub02.yml files. For example:

wfagent-hub01.yml
```
logging.folder: logs/hub01
```
wfagent-hub02.yml
```
logging.folder: logs/hub02
```

Change the values of the following parameters in the datasourcescsection in both wfagent-hub01.yml and wfagent-hub02.yml files. Forcexample:

From:

datasources:
- { id: RpaHub, protocol: "%rpa_hub_protocol%", host: "%rpa_hub_hostname%", port:
"%rpa_hub_port%", type: http }
- { id: PmMaster, protocol: http, host: "%pm_hostname%", port: "%pm_port%", type: http }
- { id: NginxTcp, type: tcp, host: "%rpa_hub_hostname%", port: "%rpa_nginx_port%"}

To:

wfagent-hub01.yml

datasources:
- { id: RpaHub01, protocol: "%rpa_hub01_protocol%", host: "%rpa_hub01_hostname%", port:
"%rpa_hub01_port%", type: http }
- { id: PmMaster, protocol: http, host: "%pm_hostname%", port: "%pm_port%", type: http }
- { id: NginxTcp, type: tcp, host: "%rpa_hub01_hostname%", port: "%rpa_nginx_port%"}

wfagent-hub02.yml

datasources:
- { id: RpaHub02, protocol: "%rpa_hub02_protocol%", host: "%rpa_hub02_hostname%", port:
"%rpa_hub02_port%", type: http }
- { id: PmMaster, protocol: http, host: "%pm_hostname%", port: "%pm_port%", type: http }
- { id: NginxTcp, type: tcp, host: "%rpa_hub02_hostname%", port: "%rpa_nginx_port%"}

Change the values of RPA Bot Relay parameters in the components section in both wfagent-hub01.yml and wfagent-hub02.yml files. For example:

From:

- id: rpa.hub
    name: "RPA Bot Relay"
    group: rpa.server
    alerts: [ rpa.hub ]

To:

wfagent-hub01.yml

- id: rpa.hub01
    name: "RPA Bot Relay 1“
    group: rpa.server
    alerts: [ rpa.hub01 ]

wfagent-hub02.yml

- id: rpa.hub02
    name: "RPA Bot Relay 2"
    group: rpa.server
    alerts: [ rpa.hub02 ]

Change the values of the following parameters in the alerts section in both wfagent-hub01.yml and wfagenthub02.yml files. For example:

From:

alerts:
- id: rpa.hub
triggers:
- { metric: rpa.hub.slots.status, points: 15, neq: 0, message: "RPA Hub slots API call failed" }
- { metric: rpa.hub.console.http.code, neq: 200, message: "RPA Hub is not responding properly" }
- { metric: rpa.hub.hc.status, neq: 0, message: "Healthcheck API call failed", type:
partial_outage }
- { metric: rpa.hub.hc.http.code, neq: 200, message: "Healthcheck API has bad response code",
type: partial_outage }
- { metric: rpa.hub.hc.health.check.errors, neq: 0, message: "Healthcheck API response contains
errors", type: partial_outage }
- { metric: rpa.hub.hc.health.check.warnings, neq: 0, message: "Healthcheck API response contains
warnings", type: partial_outage }

To:

wfagent-hub01.yml

alerts:
- id: rpa.hub01
triggers:
- { metric: rpa.hub01.slots.status, points: 15, neq: 0, message: "RPA Hub 1 slots API call
failed" }
- { metric: rpa.hub01.console.http.code, neq: 200, message: "RPA Hub 1 is not responding
properly" }
- { metric: rpa.hub01.hc.status, neq: 0, message: "Healthcheck API call failed", type:
partial_outage }
- { metric: rpa.hub01.hc.http.code, neq: 200, message: "Healthcheck API has bad response code",
type: partial_outage }
- { metric: rpa.hub01.hc.health.check.errors, neq: 0, message: "Healthcheck API response
contains errors", type: partial_outage }
- { metric: rpa.hub01.hc.health.check.warnings, neq: 0, message: "Healthcheck API response
contains warnings", type: partial_outage }

wfagent-hub02.yml

alerts:
- id: rpa.hub02
triggers:
- { metric: rpa.hub02.slots.status, points: 15, neq: 0, message: "RPA Hub 2 slots API call failed" }
- { metric: rpa.hub02.console.http.code, neq: 200, message: "RPA Hub 2 is not responding properly" }
- { metric: rpa.hub02.hc.status, neq: 0, message: "Healthcheck API call failed", type: partial_outage
}
- { metric: rpa.hub02.hc.http.code, neq: 200, message: "Healthcheck API has bad response code", type:
partial_outage }
- { metric: rpa.hub02.hc.health.check.errors, neq: 0, message: "Healthcheck API response contains
errors", type: partial_outage }
- { metric: rpa.hub02.hc.health.check.warnings, neq: 0, message: "Healthcheck API response contains
warnings", type: partial_outage }

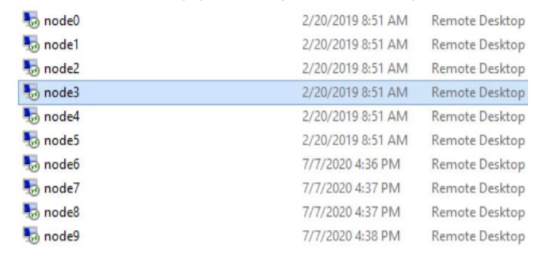

Enable the respective Nodes in the processes section in both wfagent-hub01.yml and wfagent-hub02.yml files. For example:

wfagent-hub01.yml

- id: rdp1
    expression: "cmd /c start /wait node1.RDP"
    directory: "rdp"
    enabled: "${environment.node1_enabled:true}"
-   id: rdp2
    expression: "cmd /c start /wait node2.RDP"
    directory: "rdp"
    enabled: "${environment.node2_enabled:true}“

wfagent-hub02.yml

- id: rdp3
    expression: "cmd /c start /wait node3.RDP"
    directory: "rdp"
    enabled: "${environment.node3_enabled:true}"
-   id: rdp4
    expression: "cmd /c start /wait node4.RDP"
    directory: "rdp"
    enabled: "${environment.node4_enabled:true}"

Change the name of the rpa.bot_relay process and specify the respective name of a BAT file in the processes section in both wfagent-hub01.yml and wfagent-hub02.yml files. For example:

From:

- id: rpa.bot_relay
    expression: "cmd /c start /wait start-hub.bat"
    directory: "../rpa-grid"
    tag: "hub"

To:

wfagent-hub01.yml

- id: rpa.bot_relay01
    expression: "cmd /c start /wait start-hub01.bat"
    directory: "../rpa-grid"
    tag: "hub"

wfagent-hub02.yml

- id: rpa.bot_relay02
    expression: "cmd /c start /wait start-hub02.bat"
    directory: "../rpa-grid"
    tag: "hub"

Do not rename the value of the tag parameter.

Comment the following processes in the processes section in wfagent-hub02.yml only.

wfagent-hub02.yml

# - id: rpa.nginx
# expression: "cmd /c start /wait start_nginx.bat"
# directory: "../nginx"
# tag: "nginx"
# - id: rpa.filebeat
# expression: "cmd /c start /wait filebeat-pipeline.bat ${environment.agent.hostname}
${environment.pm_hostname} ${environment.logstash_port}“
${environment.logstash_port}"
# directory: "../filebeat"
# tag: "filebeat"

Change the values of the RPA related metrics in the checks section in both wfagent-hub01.yml and wfagenthub02.yml files. For example:

From:

#RPA related metrics
- id: rpa.hub.slots
description: "Generate robot metrics from RPA Hub"
type: http
schedule: 30
expression: "/grid/api/hub"
source: RpaHub
parameters:
request: GET
body: "{\"configuration\":[\"newSessionRequestCount\",\"slotCounts\"]}"
evaluate:
- { id: http.json, arg: newSessionRequestCount, type: int, metric_name: waiting }
- { id: http.json, arg: slotCounts.free, type: int, metric_name: free }
- { id: http.json, arg: slotCounts.total, type: int, metric_name: max }
- { id: expression, arg: "%max% - %free%", type: int, metric_name: running }
- id: rpa.hub.console
type: http
source: RpaHub
description: "Generates list of all nodes of a hub"
expression: "/grid/console"
schedule: 60
evaluate:
- { id: rpa.agent.items, arg: nodes }
- id: rpa.hub.hc
type: http-json
source: RpaHub
description: "Get RPA Hub health check info"
expression: "/grid/admin/HealthCheckHubServlet"
schedule: 60
evaluate:
- { id: health.check, arg: rpa.hub }

To:

wfagent-hub01.yml

#RPA related metrics
- id: rpa.hub01.slots
description: "Generate robot metrics from RPA Hub 1"
type: http
schedule: 30
expression: "/grid/api/hub"
source: RpaHub01
parameters:
request: GET
body: "{\"configuration\":[\"newSessionRequestCount\",\"slotCounts\"]}"
evaluate:
- { id: http.json, arg: newSessionRequestCount, type: int, metric_name: waiting }
- { id: http.json, arg: slotCounts.free, type: int, metric_name: free }
- { id: http.json, arg: slotCounts.total, type: int, metric_name: max }
- { id: expression, arg: "%max% - %free%", type: int, metric_name: running }
- id: rpa.hub01.console
type: http
source: RpaHub01
description: "Generates list of all nodes of a hub 1"
expression: "/grid/console"
schedule: 60
evaluate:
- { id: rpa.agent.items, arg: nodes }
- id: rpa.hub01.hc
type: http-json
source: RpaHub01
description: "Get RPA Hub 1 health check info"
expression: "/grid/admin/HealthCheckHubServlet"
schedule: 60
evaluate:
- { id: health.check, arg: rpa.hub01 }

wfagent-hub02.yml

#RPA related metrics
- id: rpa.hub02.slots
description: "Generate robot metrics from RPA Hub 2"
type: http
schedule: 30
expression: "/grid/api/hub"
source: RpaHub02
parameters:
request: GET
body: "{\"configuration\":[\"newSessionRequestCount\",\"slotCounts\"]}"
evaluate:
- { id: http.json, arg: newSessionRequestCount, type: int, metric_name: waiting }
- { id: http.json, arg: slotCounts.free, type: int, metric_name: free }
- { id: http.json, arg: slotCounts.total, type: int, metric_name: max }
- { id: expression, arg: "%max% - %free%", type: int, metric_name: running }
- id: rpa.hub02.console
type: http
source: RpaHub02
description: "Generates list of all nodes of a hub 2"
expression: "/grid/console"
schedule: 60
evaluate:
- { id: rpa.agent.items, arg: nodes }
- id: rpa.hub02.hc
type: http-json
source: RpaHub02
description: "Get RPA Hub 2 health check info"
expression: "/grid/admin/HealthCheckHubServlet"
schedule: 60
evaluate:
- { id: health.check, arg: rpa.hub02 }

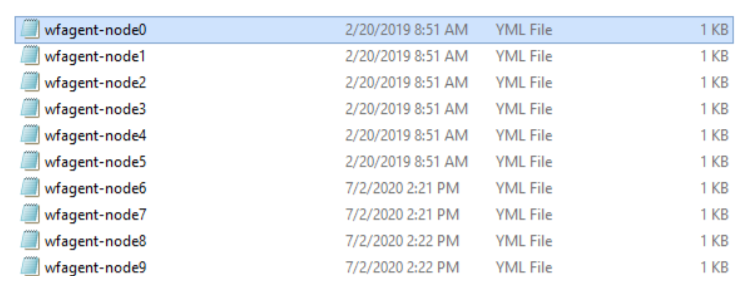

Take as a template any of wfagent-node.yml files and duplicate them according to the number of Nodes.
Modify newly created files. The example below is for wfagent-node7.yml.

wfagent-node7.yml
```
server.port: 10008
node_id: 7
environment.node_port: 5007
```
Navigate to $Drive:/RPA/wfagent/bin.
Copy wfagent-hub.bat to wfagent-hub1.bat.

Edit wfagent-hub.bat.

From:

@ECHO OFF
cd %~dp0
set config=conf\environment.yml,conf\wfagent-hub.yml
call wfagent.cmd run Hub "%config%"

To:

@ECHO OFF
cd %~dp0
set config=conf\environment.yml,conf\wfagent-hub01.yml
call wfagent.cmd run Hub "%config%"

Edit wfagent-hub1.bat.

From:

@ECHO OFF
cd %~dp0
set config=conf\environment.yml,conf\wfagent-hub.yml
call wfagent.cmd run Hub "%config%"

To:

@ECHO OFF
cd %~dp0
set config=conf\environment1.yml,conf\wfagent-hub02.yml
call wfagent.cmd run Hub "%config%"

Edit wfagent-node*.bat files. As per examples below, node 1 is running under Hub 1, and node 7 under Hub 2.

wfagent-node0.bat

@ECHO OFF
cd %~dp0
set config=conf\environment.yml,conf\wfagent-node-common.yml,conf\wfagent-node0.yml
call wfagent.cmd run Node0 "%config%“

wfagent-node7.bat

@ECHO OFF
cd %~dp0
set config=conf\environment1.yml,conf\wfagent-node-common.yml,conf\wfagent-node7.yml
call wfagent.cmd run Node7 "%config%“

Navigate to C:/RPA/rpa-grid.
Copy hub.json to hub1.json.

Change the port in hub.json and hub1.json.

hub.json

"host": null,
"port": 10443,
"newSessionWaitTimeout": 300000,

hub1.json

"host": null,
"port": 10444,
"newSessionWaitTimeout": 300000,

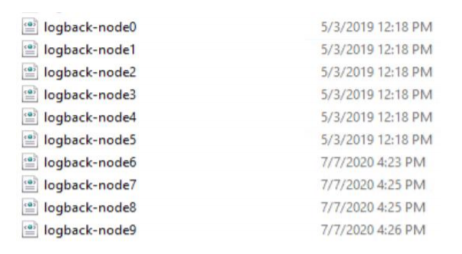

Copy any of logback-node*.xml files to logback-nodeN.xml.
Edit logback-nodeN.xml files accordingly. The example below is for logback-node7.xml.

logback-node7.xml
```
<property name="LOG_DIR" value="../logs"/>
<property name="LOG_FILE_NAME" value="rpa-node7"/>
```
Copy any of nodeX.json files to nodeN.json.

Edit the nodeN.json files accordingly. The example below is for node1.json which is connected to Hub1, and node7.json, which is connected to Hub2.

Node1.json

"servlets": ["org.openqa.grid.selenium.workfusion.grid.web.HealthCheckNodeServlet"],
"maxSession":2,
"port":5001,
"host": "127.0.0.1",
"hubPort":10443,
"hubHost":"127.0.0.1",
"nodePolling":2000,
"cleanUpCycle":2000,
"timeout":600000

Node7.json

"servlets": ["org.openqa.grid.selenium.workfusion.grid.web.HealthCheckNodeServlet"],
"maxSession":2,
"port":5007,
"host": "127.0.0.1",
"hubPort":10444,
"hubHost":"127.0.0.1",
"nodePolling":2000,
"cleanUpCycle":2000,
"timeout":600000

Copy logback-hub.xml to logback-hub1.xml.

Edit logback-hub1.xml.

logback-hub1.xml

<property name="LOG_DIR" value="../logs"/>
<property name="LOG_FILE_NAME" value="rpa-hub1"/>

Navigate to C:/RPA/wfagent/rdp.
Create a copy of any nodeX.rdp files and name them accordingly.
Edit newly created files. The example below is for node7.rdp.

node7.rdp
```
bitmapcachepersistenable:i:1
full address:s:127.0.0.8
```

Create scheduled tasks for launching Hub and Nodes under each user on logon. To do that, open Command Prompt and create tasks.

SchTasks /Create /SC onlogon /TN "Hub1" /TR "C:\RPA\wfagent\bin\wfagent-hub1.bat" /RU Hub /IT /F
SchTasks /Create /SC onlogon /TN "wfagent-node5" /TR "C:\RPA\wfagent\bin\wfagent-node5.bat" /RU BotUser6
/IT /F
SchTasks /Create /SC onlogon /TN "wfagent-node6" /TR "C:\RPA\wfagent\bin\wfagent-node6.bat" /RU BotUser7
/IT /F
SchTasks /Create /SC onlogon /TN "wfagent-node7" /TR "C:\RPA\wfagent\bin\wfagent-node7.bat" /RU BotUser8
/IT /F
SchTasks /Create /SC onlogon /TN "wfagent-node8" /TR "C:\RPA\wfagent\bin\wfagent-node8.bat" /RU BotUser9
/IT /F
SchTasks /Create /SC onlogon /TN "wfagent-node9" /TR "C:\RPA\wfagent\bin\wfagent-node9.bat" /RU
BotUser10 /IT /F

If RPA configured via SSL, change $Drive:/RPA/nginx/conf/nginx.conf and restart NGINX.

Change the server block:

server {
  listen 443 default ssl;
  listen 444 default ssl;
  server_name rpa.example.com;

Change the location block in the end of the file.

  location / {
    proxy_pass http://127.0.0.1:10$server_port;

Log in to APP via SSH.
Switch to run a time user.
Navigate to $Installation_Folder/rpa-manager/grid-router/quota.

Edit the user.xml file. Add entries for each browser.

vi user.xml
<qa:browsers xmlns:qa="urn:config.gridrouter.qatools.ru">
<browser name="chrome" defaultVersion="1.0">
<region name="hub1">
<host name=" rpa.example.com " port="443" count="5"/>
<host name=" rpa.example.com " port="444" count="5"/>
</region>

Restart rpa-manager:
```
wfmanager restart rpa-manager
```

WorkFusion Documentation

9.2

Modify Bot Task

Advanced Manual Task setup

Migration

Analytics

Security

Bot Task setup

Bot Task plugins

Advanced configuration

System preferences

View quickstart tutorial samples

Deploy ODF

Learn SDLC basics

Apply engineering practices

Check ODF releases

Set up environment

Explore project architecture

Locate UI elements and windows

Automate web applications

Build RPA skillset

Apply models

AutoML architecture

ML Use Case prerequisites

Hardware requirements

AutoML delivery

Information Extraction Model training

AutoML Business Process configuration

Get started with AutoML SDK

Learn components

Explore Data Analyst tasks

Learn customer documents basics

Data Analyst Cut&Dry Business Process

AutoML how-tos

Add multiple Hubs and register new RPA Nodes on RPA server

Prerequisites

Deploy independent Hub with associated Nodes
