Convert Bot Config to ETL form

Bot Form (ETL) is a special Bot Config type intended for flexible re-using by defining all initial parameters (variables) through a UI form and not through direct code editing.

The feature allows business users to include Bot Configs into BPs and safely set their initial parameters and input and output data without editing the code.

The goal of this topic is to convert a simple Bot config to a user-friendly ETL form.

Sample Bot code

<?xml version="1.0" encoding="UTF-8"?>
<config>
   <var-def name ="amount">
       <#noparse>
         <template>${{{input_column_name}}}</template>
       </#noparse>
   </var-def>

   <var-def name ="output">
       <template>Pass</template>
   </var-def>
   <case>
     <#noparse>
       <if condition="${Integer.valueOf(amount.toString()) >= {{amount_limit}}}">
       <var-def name ="output">
           <template>Fail</template>
       </var-def>
       </if>
     </#noparse>
   </case>
   <export include-original-data="true">
     <single-column name="{{result_column_name}}" value="${output}"/>
   </export>
</config>

Bot Configuration has the Input column, the If statement, and the Output column.

The form can define:

• input column name—{{input_column_name}}
• limit for condition—{{amount_limit}}
• output column name—{{result_column_name}}

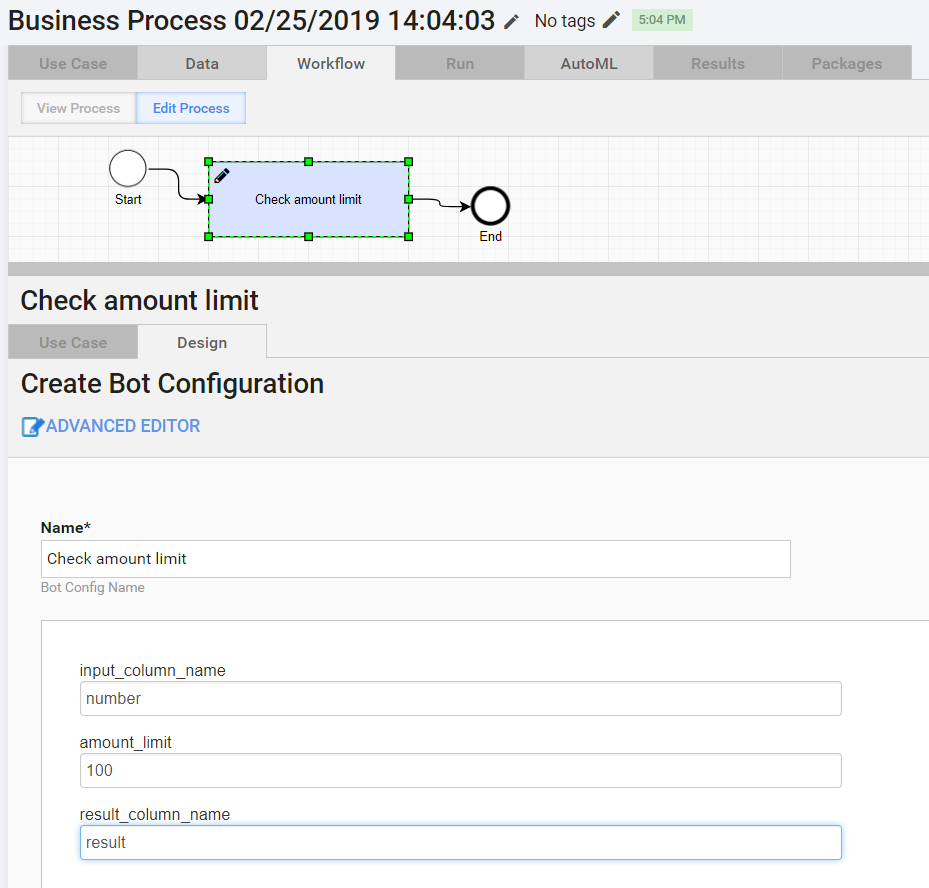

In the above-mentioned case, specify the Input column that contains “number”, the value—“100”, and the output column name—“result”.

Convert Basic Bot Configuration to Form

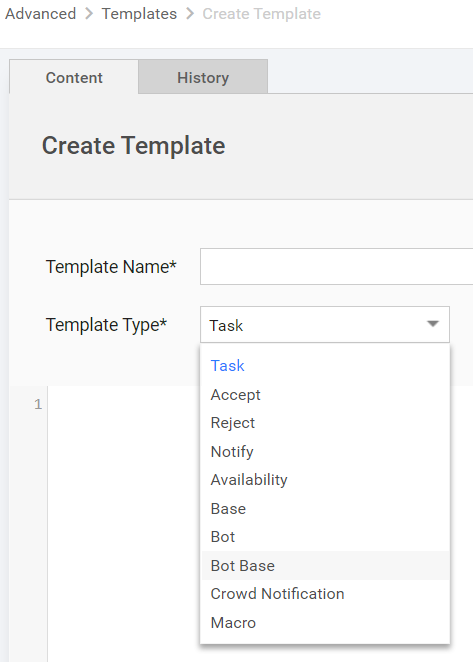

1. Go to Advanced > Templates and use your existing Bot configuration code to create a new template with the Bot code.

   Make sure to select the Template Type = Bot Base.



2. Create a Use Case.

   1. Go to System Settings > Use cases
   2. Select Template and Name.
   3. Specify the ETL type.
   4. Go to Advanced Mode > Add Answers
      1. Input Column Name—input_column_name
      2. Condition—amount_limit
      3. Output Column Name—result_column_name
   5. Edit code for all three to go from ${input_column_name} to:
      1. {{input_column_name}} to get the column name
      2. or ${{{input_column_name}}} to get the value of this column, not its name
   6. Save the ETL config.

   Use the <#noparse> directive to fix the validation error in the <if> condition. See more information about <#noparse> here.

Add to BP

See full instructions here: Add Bot Task to BP

Form examples

Retrieve RSS feed

Code

<?xml version="1.0" encoding="UTF-8"?>
<config>

    <var-def name="selfossUrl">
      <template>{{selfossurl}}</template>
    </var-def>



    <var-def name="mark_as_read_var">
      <template>{{mark_as_read}}</template>
    </var-def>

     <script><![CDATA[
        Map uniqueMap = new HashMap();
        List feedIds = new ArrayList();
    ]]>
    </script>



    <while condition="true" index="idx" maxloops="40">
        <var-def name="offset">
            <script return="offset_result">
                <![CDATA[
                offset_result = (Integer.parseInt(idx.getWrappedObject()) - 1) * 200;
                ]]>
            </script>
        </var-def>

        <var-def name="itemsUrl">
          <template>${selfossUrl}/items?items=200&amp;offset=${offset}&amp;
type={{type}}&amp;topic={{topic}}&amp;tag={{topic}}</template>
        </var-def>

        <var-def name="itemsJson">
            <http url="${itemsUrl}" cookie-policy="browser" method="GET"/>
        </var-def>

        <script><![CDATA[
            org.json.JSONArray jsonArr = new org.json.JSONArray(itemsJson.toString());
            int jsonArrLength = jsonArr.length();
            for (int i=0; i<jsonArrLength; i++) {
                org.json.JSONObject jsonItem = jsonArr.getJSONObject(i);
                String jsonItemContent = jsonItem.get("content");
                String jsonItemSourceTitle = jsonItem.get("sourcetitle");
                String jsonItemLink = jsonItem.get("link");
                String jsonItemDateTime = jsonItem.get("datetime");
                String jsonItemUid = jsonItem.get("uid");
                String jsonTitle = jsonItem.get("title");
                String itemId = jsonItem.get("id") != null ? jsonItem.get("id").toString(): "unknown" ;
                Map exportItem = new HashMap();
                exportItem.put("newsLink", jsonItemLink);
                exportItem.put("sourceTitle", jsonItemSourceTitle);
                exportItem.put("dateTime", jsonItemDateTime);
                exportItem.put("feedUid", jsonItemUid);
                exportItem.put("title", jsonTitle);
                exportItem.put("feed_id", itemId);
                uniqueMap.put(jsonItemContent, exportItem);
                feedIds.add(itemId);
            }
        ]]></script>

    </while>

    <var-def name="itemIds">
        <script return="result">
            <![CDATA[
            result = feedIds;
            ]]>
        </script>
    </var-def>

    <case>
      <if condition="${'${' + 'mark_as_read_var.toBoolean()' + '}'}">
          <loop item="itemId">
            <list>
              <var name="itemIds"/>
            </list>
            <body>
              <empty>
                <var-def name="markResult">
                  <http url="${selfossUrl}/mark/${itemId}" cookie-policy="browser" method="POST"/>
                </var-def>
              </empty>
            </body>
          </loop>
      </if>
    </case>



    <script><![CDATA[
      List exportItems = new ArrayList(uniqueMap.values());
   ]]></script>



    <export include-original-data="false">
      <multi-column list="${exportItems}">
        <put-to-column-getter name="source" property="sourceTitle"/>
        <put-to-column-getter name="feed_uid" property="feedUid"/>
        <put-to-column-getter name="feed_link" property="newsLink"/>
        <put-to-column-getter name="date_time" property="dateTime"/>
        <put-to-column-getter name="feed_title" property="title"/>
        <put-to-column-getter name="feed_id" property="feed_id"/>
      </multi-column>
    </export>

</config>

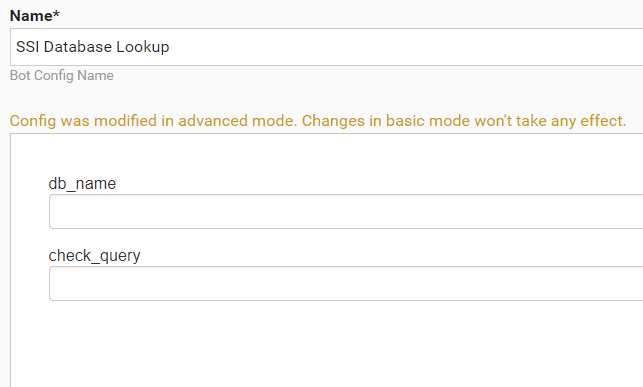

Look up SSI database

Code

<?xml version="1.0" encoding="UTF-8"?>
<config charset="UTF-8">
  <var-def name="db_name">{{db_name}}</var-def>

  <var-def name="custodian_bank_swift"><template>${custodian_bank_swift}</template></var-def>
  <var-def name="custodian_bank_name"><template>${custodian_bank_name}</template></var-def>
  <var-def name="currency"><template>${currency}</template></var-def>
  <var-def name="correspondent_bic"><template>${correspondent_bic}</template></var-def>
  <var-def name="ssi_exists"><template>false</template></var-def>


  <var-def name="ssi_document">
    <datastore name="Custodian Banks Template">
      {{check_query}}
    </datastore>
  </var-def>
  <var-def name="ssi_exists">
    <script return="result">
             <![CDATA[
               if(ssi_document.toList().isEmpty())
                 result = false;
               else
                 result = true;
             ]]>
    </script>
  </var-def>
  <var-def name="jobUUID">
    <script return="uuid">
      <![CDATA[java.util.UUID uuid = java.util.UUID.randomUUID();]]>
    </script>
  </var-def>

  <export include-original-data="true">
    <single-column name="ssi_exists" value="${ssi_exists}"/>
    <single-column name="job_uuid" value="${jobUUID}"/>
  </export>

</config>

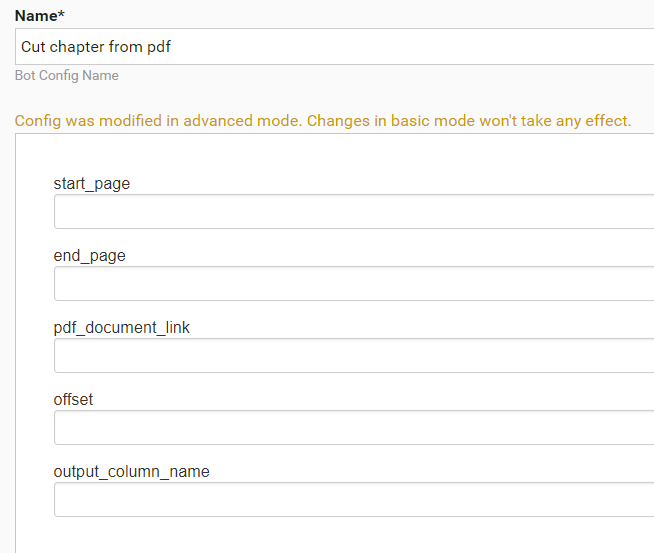

Cut chapter from PDF (split PDF)

Code

<?xml version="1.0" encoding="UTF-8"?>
<config>

  <var-def name='toc_start'><template>${{{start_page}}}</template></var-def>
    <var-def name='toc_end'><template>${{{end_page}}}</template></var-def>
    <var-def name='document_link'><template>${{{pdf_document_link}}}</template></var-def>
  <var-def name='offset'><template>${{{offset}}}</template></var-def>

    <script><![CDATA[
            import org.apache.pdfbox.pdmodel.*;
            import org.apache.pdfbox.util.PageExtractor;

            java.net.URL url = new java.net.URL(document_link.toString());
            org.apache.pdfbox.pdmodel.PDDocument document = org.apache.pdfbox.pdmodel.PDDocument.load(url);
            ByteArrayOutputStream output = new ByteArrayOutputStream();
            PDDocument newDocument = new PDDocument();

            int currentPage = 1;

  int offsetInt = offset.toString().isEmpty() ? 0 : offset.toInt();

            for (PDPage page : document.getDocumentCatalog().getAllPages()) {
                if ((toc_start.toString().isEmpty() || currentPage >= toc_start.toInt() - offsetInt) && (toc_end.toString().isEmpty() || currentPage <= toc_end.toInt() - offsetInt)) {
                    newDocument.addPage(page);
                }
                currentPage++;
            }
            newDocument.save(output);
            newDocument.close();
            Object docUuid = java.util.UUID.randomUUID();
        ]]>
  </script>

        <var-def name="cuttedDoc">
            <s3 bucket='temp_bucket'>
                <s3-put-public path='TR/OCR/split/${docUuid}.pdf' content-type="application/pdf" content-disposition="inline">
                    <script return="output.toByteArray()"/>
                </s3-put-public>
            </s3>
        </var-def>

        <export include-original-data='true'>
          <single-column name="{{output_column_name}}" value="${cuttedDoc}" />
        </export>

</config>

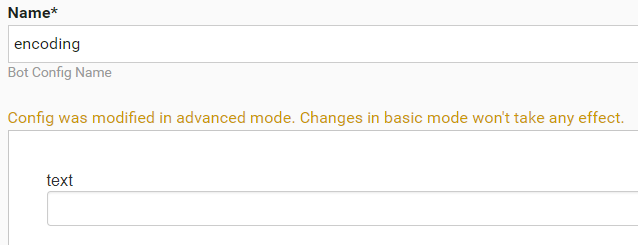

Skip escaping

Code

<?xml version="1.0" encoding="UTF-8"?>
<config charset="UTF-8">
    <var-def name="message">
        <script return="result">
            String result = org.apache.commons.lang3.StringEscapeUtils.unescapeJava("{{text}}");
        </script>
    </var-def>
    <export include-original-data="true">
        <single-column name="message" value="${message}" />
    </export>
</config>
